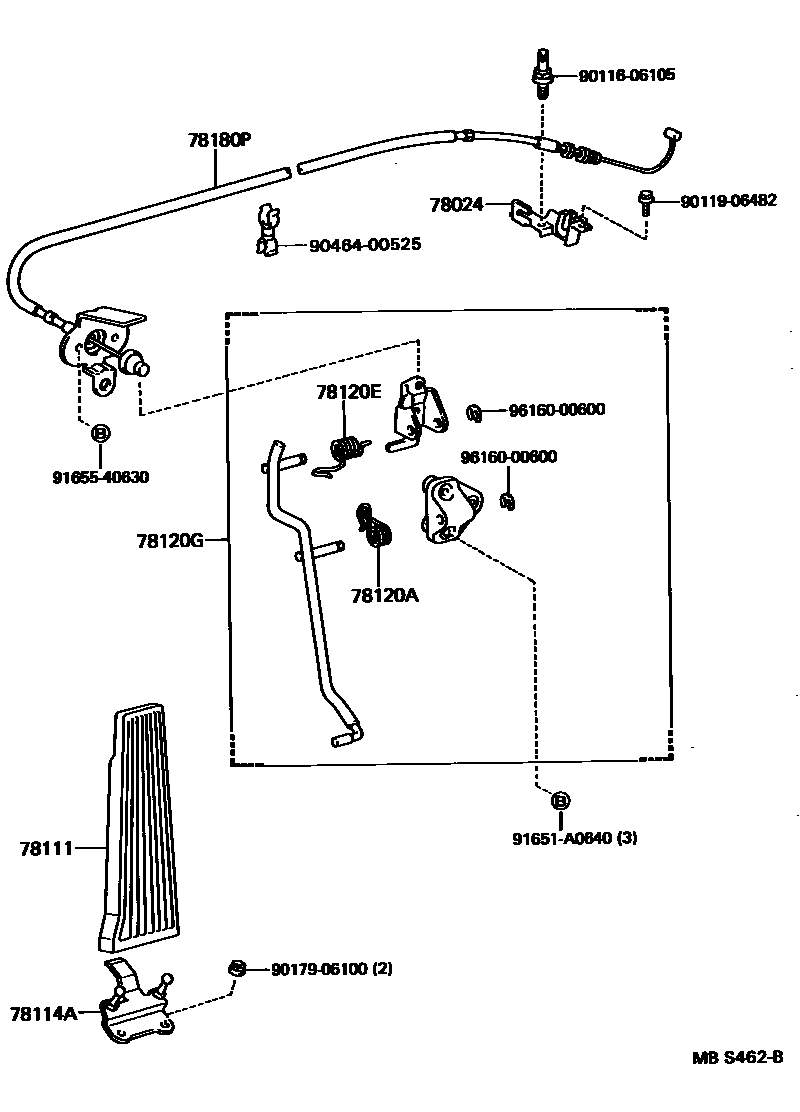

ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-50010iUCF10198905-199410

78111PEDAL, ACCELERATOR

main78111-12100iUCF10..CND199008-199410

main78111-50010iUCF10..USA198905-199101

sub78111-50020

main78111-50020iUCF10..USA199101-199104

sub78111-50030

main78111-50030iUCF10..USA199104-199410

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-50010iUCF10..USA198905-199102

sub78114-50020

main78114-50020iUCF10..USA199102-199209

sub78114-50021

main78114-50021iUCF10..USA199209-199410

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-18077iUCF10198905-199410

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-23088iUCF10..CND199208-199410

NO.1

main90508-23088iUCF10..CND199008-199208

LWR

main90508-29022iUCF10..CND198905-199208

UPR

main90508-29022iUCF10..USA198905-199410

main90508-29022iUCF10..CND199208-199410

NO.2

78120GROD ASSY, ACCELERATOR PEDAL

main78120-50010iUCF10..USA198905-199410

main78120-50040iUCF10..CND199008-199410

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-50010iUCF10198905-199208

sub78180-50011

main78180-50011iUCF10199208-199302

main78180-50012iUCF10199302-199410

9011606105

main90116-06105

9011906482

main90119-06482

9017906100

main90179-06100

9046400525

main90464-00525

91651A0640

main91651-A0640

9165540630

main91655-40630

9616000600

main96160-00600

14 parts on this diagram · 2 diagrams in section
