SIDE MOULDING
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67897ECUSHION, REAR DOOR, RH
67897FCUSHION, REAR DOOR, LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
THE 5TH ANNIVERSARY,SILVER M,046
SILVER M,051
LIGHT GRAY,199
THE 5TH ANNIVERSARY,MEDIUM GRAY,8J5
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
TAUPE M,923
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
THE 5TH ANNIVERSARY,SILVER M,046
SILVER M,051
LIGHT GRAY,199
THE 5TH ANNIVERSARY,MEDIUM GRAY,8J5
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
TAUPE M,923
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
THE 5TH ANNIVERSARY,SILVER M,046
SILVER M,051
LIGHT GRAY,176
THE 5TH ANNIVERSARY,MEDIUM GRAY,8J5
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
TAUPE M,923
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
THE 5TH ANNIVERSARY,SILVER M,046
SILVER M,051
LIGHT GRAY,176
THE 5TH ANNIVERSARY,MEDIUM GRAY,8J5
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
TAUPE M,923
75392ARETAINER, OUTSIDE MOULDING, NO.1
FOR REAR DOOR
75396CLIP, OUTSIDE MOULDING, NO.2
75397ACLIP, OUTSIDE MOULDING, NO.3
FRONT
75398CLIP, OUTSIDE MOULDING, NO.5
75399AHOLDER, OUTSIDE MOULDING SEAL
RH
LH
75492RETAINER, OUTSIDE MOULDING, NO.5
TYPE A,FOR FR FENDER
TYPE B,FOR FR DOOR
TYPE C,FOR FR DOOR
TYPE D,FOR RR DOOR
TYPE E,FOR RR DOOR
TYPE F,FOR QUARTER
FRONT-LH,FOR FR DOOR
W(MUD GUARD),REAR-LH,FOR FR DOOR
LH,FOR RR DOOR
LH,FOR QUARTER PANEL
75493RETAINER, OUTSIDE MOULDING, NO.4
TYPE A,FOR FR FENDER
TYPE B,FOR FR DOOR
TYPE C,FOR FR DOOR
TYPE D,FOR RR DOOR
TYPE E,FOR RR DOOR
TYPE F,FOR QUARTER
RH,FOR QOARTER PANEL
FRONT-RH,FOR FR DOOR
REAR-RH,FOR FR DOOR
FOR RR DOOR, RH
75494CLIP, OUTSIDE MOULDING, NO.3
TYPE A
TYPE B
75494ACLIP, OUTSIDE MOULDING, NO.3
TYPE A
TYPE B
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
THE 5TH ANNIVERSARY,SILVER M,046
SILVER M,051
LIGHT GRAY,176
THE 5TH ANNIVERSARY,MEDIUM GRAY,8J5
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
TAUPE M,923
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
THE 5TH ANNIVERSARY,SILVER M,046
SILVER M,051
LIGHT GRAY,176
THE 5TH ANNIVERSARY,MEDIUM GRAY,8J5
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
TAUPE M,923
75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
THE 5TH ANNIVERSARY,SILVER M,046
SILVER M,051
LIGHT GRAY,176
THE 5TH ANNIVERSARY,MEDIUM GRAY,8J5
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
TAUPE M,923
75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
DEEP RED MICA,3H8
LIGHT GRAY M,176
CAMEL BEIGE M,4K9
DARK ROSE M,3H9 ,4K8
DARK GRAY M,180 ,202
DARK BLUISH GRAY M,172 ,6K4
SILVER M,051
THE 5TH ANNIVERSARY,SILVER M,046
SILVER M,051
LIGHT GRAY,176
THE 5TH ANNIVERSARY,MEDIUM GRAY,8J5
CAMEL BEIGE,4K9
MEDIUM BROWN,4K7
DARK STEEL BLUE M,8J5
PAUPE M,923
75611BMOULDING, SIDE PANEL, NO.1 RH
W(MUD GUARD)
75613CMOULDING, FRONT FENDER, OUTSIDE NO.2 RH
75614CMOULDING, FRONT FENDER, OUTSIDE NO.2 LH
75617CMOULDING, FRONT FENDER, LOWER REAR RH
75618CMOULDING, FRONT FENDER, LOWER REAR LH
75653BMOULDING, QUARTER OUTSIDE, RH NO.3
75654BMOULDING, QUARTER, OUTSIDE NO.4
75657AMOULDING, QUARTER PANEL, LOWER REAR RH
75658AMOULDING, QUARTER PANEL, LOWER REAR LH
75701MOULDING SUB-ASSY, FRONT DOOR BELT, RH
75702MOULDING SUB-ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75733BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH
75734BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75743AMOULDING, REAR DOOR, OUTSIDE UPPER REAR RH
75744MOULDING, REAR DOOR, OUTSIDE UPPER REAR LH
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75758ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, FRONT
BLACK,180 ,202 ,3H8 ,4K8 ,6K4
GRAYISH ROSE MICA M,3H9
SUPER SILVER 3 M,051 ,176
BEIGE M,4K9
BLUISH GRAY MICA M,172
BLACK,051 ,176 ,180 ,202 ,4K7 ,4K9 ,6K4 ,8J5 ,923
75789ABOLT, DOOR BELT MOULDING
75799NUT, DOOR BELT MOULDING
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
THE 5TH ANNIVERSARY,SILVER M,046,FR
SILVER M,051,FR
LIGHT GRAY M,199,FR
THE 5TH ANNIVERSARY,DARK GRAY M,8J5,FR
CAMEL BEIGE M,4K9,FR
LT GRAYISH BROWN M,4K7,FR
DARK STEEL BLUE,8J5,FR
TAUPE M,923,FR
THE 5TH ANNIVERSARY,SILVER M,046,RR
SILVER M,051,RR
LIGHT GRAY M,176,RR
DARK GRAY M,180 ,202 ,6K4,RR
CAMEL BEIGE M,4K9,RR
LT GRAYISH BROWN M,4K7,RR
DARK STEEL BLUE,8J5,RR
TAUPE M,923,RR
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
THE 5TH ANNIVERSARY,SILVER M,046,FR
SILVER M,051,FR
LIGHT GRAY M,176,FR
DARK GRAY M,180 ,202 ,6K4,FR
CAMEL BEIGE M,4K9,FR
LT GRAYISH BROWN M,4K7,FR
DARK STEEL BLUE,8J5,FR
TAUPE M,923,FR
THE 5TH ANNIVERSARY,SILVER M,046,RR
SILVER M,051,RR
LIGHT GRAY M,199,RR
THE 5TH ANNIVERSARY,DARK GRAY M,8J5,RR
CAMEL BEIGE M,4K9,RR
LT GRAYISH BROWN M,4K7,RR
DARK STEEL BLUE,8J5,RR
TAUPE M,923,RR
75868BCLIP, ROCKER PANEL MOULDING, NO.2
TYPE A
TYPE B
TYPE C
TYPE D
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
76579SEAL, CENTER PILLAR MOULDING
RH
LH
9015940175
main90159-40175
9015945005
main90159-45005
9016245005
main90162-45005
9016440079
main90164-40079
9016440086
main90164-40086
9016840105
main90168-40105
9016840117
main90168-40117
9016845007
main90168-45007
9017605018
main90176-05018
9018904014
main90189-04014
9018904041
main90189-04041
9018904059
main90189-04059
9018904130
main90189-04130
9018904157
main90189-04157
9018905087
main90189-05087
9024906113
main90249-06113
9026903046
main90269-03046
9046706095
main90467-06095
9046706100
main90467-06100
9046709106
main90467-09106
9046710100
main90467-10100
9046710102
main90467-10102
9046710103
main90467-10103
9046710104
main90467-10104
9046710105
main90467-10105
9046711062
main90467-11062
9095001704
main90950-01704

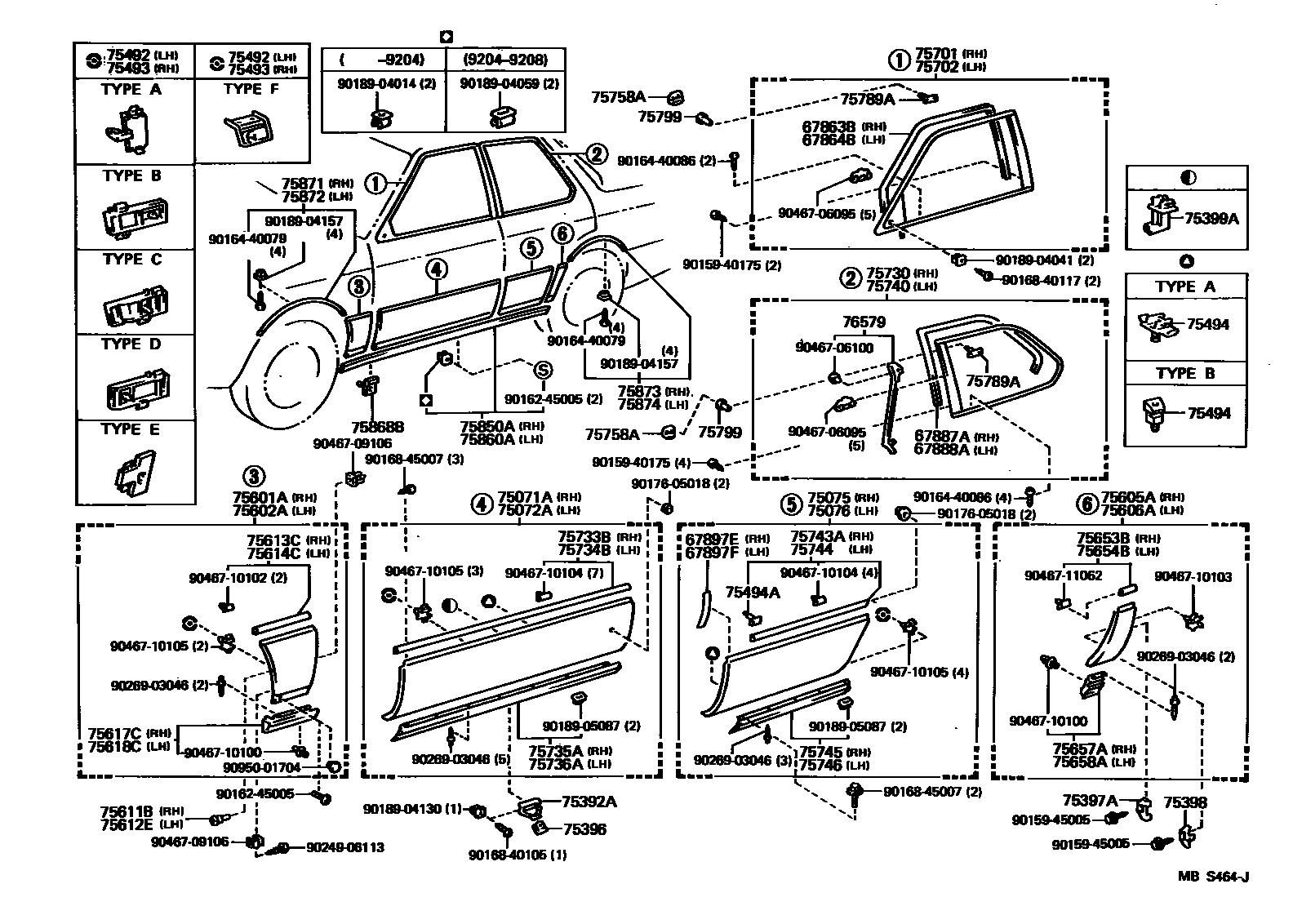

83 parts on this diagram · 3 diagrams in section
