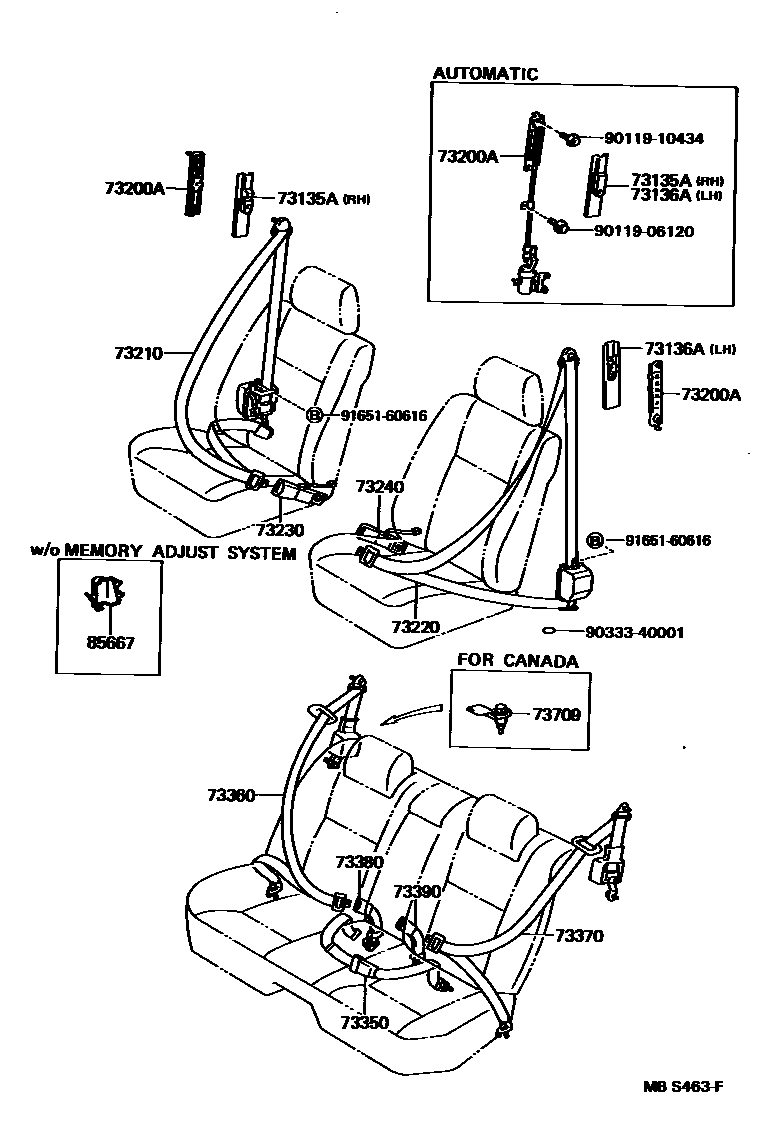

SEAT BELT & CHILD RESTRAINT SEAT
73135ACOVER, SHOULDER BELT ANCHOR, RH
73136ACOVER, SHOULDER BELT ANCHOR, LH
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
RH
RH
W(*DPMS),RH
RH
W(*DPMS),RH
RH
W(*DPMS),RH
LH
LH
W(*DPMS),LH
W(*DPMS),LH
LH
W(*DPMS),LH
W(*DPMS),LH
LH
73210BELT ASSY, FRONT SEAT OUTER, RH
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73709BRACKET SUB-ASSY, TETHER ANCHOR
85667COVER, SHOULDER ADJUSTER MOTOR
RH
RH
LH
LH
9011906120
main90119-06120
9011910434
main90119-10434
9033340001
main90333-40001
9165160616
main91651-60616
18 parts on this diagram · 2 diagrams in section
