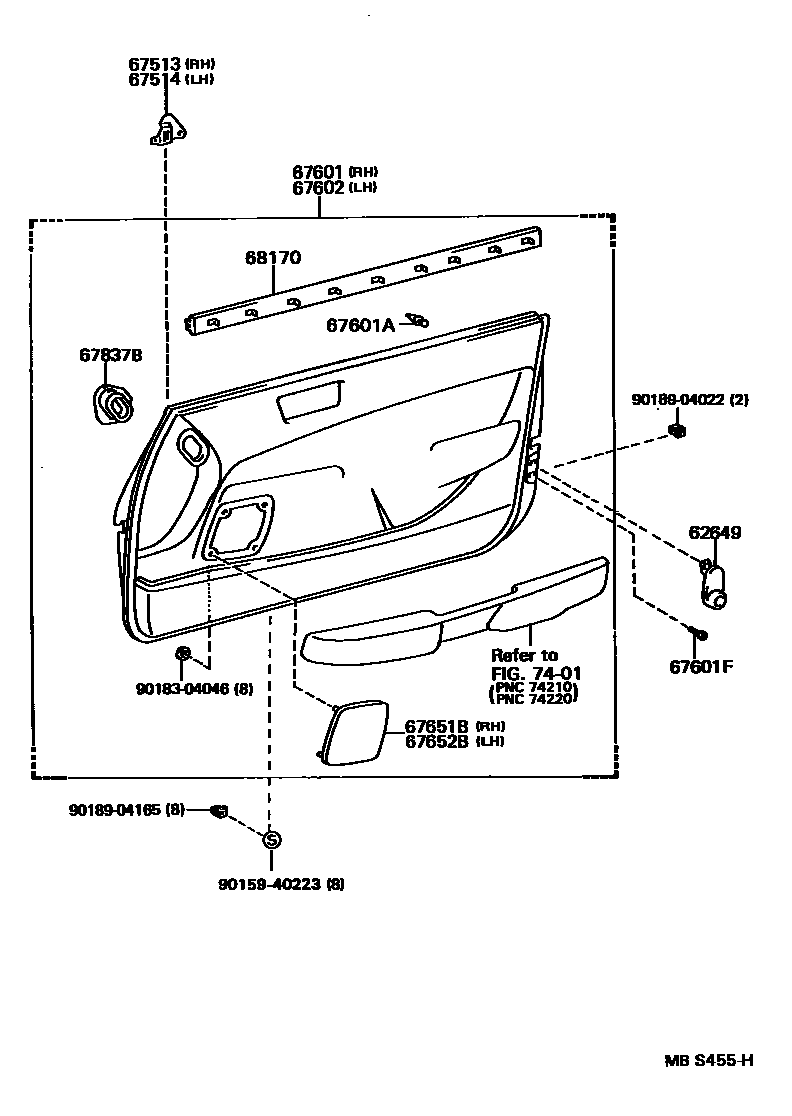

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

62649BRACKET, SIDE TRIM

main67649-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

sub67649-50010

main67649-50010-03iUCF10198905-199208

GRAY,TRIM1#

sub67649-50010

main67649-50010-04iUCF10198905-199208

BLUE,TRIM8#

sub67649-50010

main67649-50010-06iUCF10198905-199208

ROSE,TRIM4#

sub67649-50010

main67649-50010-08iUCF10198905-199208

IVORY,TRIM0#

sub67649-50010

main67649-50010-A0iUCF10199208-199410

IVORY,TRIM0#

sub67649-50010

main67649-50010-B0iUCF10199208-199410

SLATE GRAY,TRIM1#

sub67649-50010

main67649-50010-C0iUCF10199208-199410

BLACK,TRIM2#

sub67649-50010

main67649-50010-J0iUCF10199208-199410

EISEN BLUE,TRIM8#

sub67649-50010

main67649-50010-K0iUCF10199208-199410

ME. TAUPE,TRIM9#

sub67649-50010

67513BRACKET, FRONT DOOR MIRROR, RH

main67513-50010iUCF10198905-199410

67514BRACKET, FRONT DOOR MIRROR, LH

main67514-50010iUCF10198905-199410

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

sub67610-50010

main67610-50010-03iUCF10198905-199208

SHADOW GRAY,TRIM1#

sub67610-50010

main67610-50010-04iUCF10198905-199208

DARK BLUE,TRIM8#

sub67610-50010

main67610-50010-06iUCF10198905-199208

DARK ROSE,TRIM4#

sub67610-50010

main67610-50020-02iUCF10198905-199103

W(LEATHER SEAT),DEEP RED,TRIM3#

sub67610-50020

main67610-50020-03iUCF10198905-199208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67610-50020

main67610-50020-04iUCF10198905-199208

W(LEATHER SEAT),DARK BLUE,TRIM8#

sub67610-50020

main67610-50020-05iUCF10198905-199208

W(LEATHER SEAT),GREIGE,TRIM0#

sub67610-50020

main67610-50020-06iUCF10198905-199208

W(LEATHER SEAT),DARK ROSE,TRIM4#

sub67610-50020

main67610-50020-A0iUCF10199208-199410

IVORY,TRIM0#

sub67610-50020

main67610-50020-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

sub67610-50020

main67610-50020-C0iUCF10199208-199410

BLACK,TRIM2#

sub67610-50020

main67610-50020-J0iUCF10199208-199410

DK. BLUE,TRIM8#

sub67610-50020

main67610-50020-K0iUCF10199208-199410

TAUPE,TRIM9#

sub67610-50020

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iUCF10198905-199410

RED

main67771-14040iUCF10198905-199202

GRAY

main67771-32060iUCF10199202-199410

BROWN

67601FSCREW(FOR FRONT DOOR TRIM BOARD)

main90161-40018-02iUCF10198905-199103

DEEP RED,TRIM3#

sub90161-40018

main90161-40018-03iUCF10198905-199208

GRAY,TRIM1#

sub90161-40018

main90161-40018-04iUCF10198905-199208

BLUE,TRIM8#

sub90161-40018

main90161-40018-06iUCF10198905-199208

ROSE,TRIM4#

sub90161-40018

main90161-40018-08iUCF10198905-199208

IVORY,TRIM0#

sub90161-40018

main90161-40018-A0iUCF10199208-199410

IVORY,TRIM0#

sub90161-40018

main90161-40018-B0iUCF10199208-199410

SLATE GRAY,TRIM1#

sub90161-40018

main90161-40018-C0iUCF10199208-199410

BLACK,TRIM2#

sub90161-40018

main90161-40018-J0iUCF10199208-199410

EISEN BLUE,TRIM8#

sub90161-40018

main90161-40018-K0iUCF10199208-199410

ME. TAUPE,TRIM9#

sub90161-40018

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

sub67620-50010

main67620-50010-03iUCF10198905-199208

SHADOW GRAY,TRIM1#

sub67620-50010

main67620-50010-04iUCF10198905-199208

DARK BLUE,TRIM8#

sub67620-50010

main67620-50010-06iUCF10198905-199208

DARK ROSE,TRIM4#

sub67620-50010

main67620-50020-02iUCF10198905-199103

W(LEATHER SEAT),DEEP RED,TRIM3#

sub67620-50020

main67620-50020-03iUCF10198905-199208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67620-50020

main67620-50020-04iUCF10198905-199208

W(LEATHER SEAT),DARK BLUE,TRIM8#

sub67620-50020

main67620-50020-05iUCF10198905-199208

W(LEATHER SEAT),GREIGE,TRIM0#

sub67620-50020

main67620-50020-06iUCF10198905-199208

W(LEATHER SEAT),DARK ROSE,TRIM4#

sub67620-50020

main67620-50020-A0iUCF10199208-199410

IVORY,TRIM0#

sub67620-50020

main67620-50020-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

sub67620-50020

main67620-50020-C0iUCF10199208-199410

BLACK,TRIM2#

sub67620-50020

main67620-50020-J0iUCF10199208-199410

DK. BLUE,TRIM8#

sub67620-50020

main67620-50020-K0iUCF10199208-199410

TAUPE,TRIM9#

sub67620-50020

67651BGRILLE, SPEAKER DOOR, RH

main67609-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

sub67609-50010

main67609-50010-03iUCF10198905-199208

GRAY,TRIM1#

sub67609-50010

main67609-50010-04iUCF10198905-199208

BLUE,TRIM8#

sub67609-50010

main67609-50010-06iUCF10198905-199208

ROSE,TRIM4#

sub67609-50010

main67609-50010-08iUCF10198905-199208

IVORY,TRIM0#

sub67609-50010

main67609-50010-A0iUCF10199208-199410

IVORY,TRIM0#

sub67609-50010

main67609-50010-B0iUCF10199208-199410

SLATE GRAY,TRIM1#

sub67609-50010

main67609-50010-C0iUCF10199208-199410

BLACK,TRIM2#

sub67609-50010

main67609-50010-J0iUCF10199208-199410

EISEN BLUE,TRIM8#

sub67609-50010

main67609-50010-K0iUCF10199208-199410

ME. TAUPE,TRIM9#

sub67609-50010

67652BGRILLE, SPEAKER DOOR, LH

main67709-50010-02iUCF10198905-199103

DEEP RED,TRIM3#

sub67709-50010

main67709-50010-03iUCF10198905-199208

GRAY,TRIM1#

sub67709-50010

main67709-50010-04iUCF10198905-199208

BLUE,TRIM8#

sub67709-50010

main67709-50010-06iUCF10198905-199208

ROSE,TRIM4#

sub67709-50010

main67709-50010-08iUCF10198905-199208

IVORY,TRIM0#

sub67709-50010

main67709-50010-A0iUCF10199208-199410

IVORY,TRIM0#

sub67709-50010

main67709-50010-B0iUCF10199208-199410

SLATE GRAY,TRIM1#

sub67709-50010

main67709-50010-C0iUCF10199208-199410

BLACK,TRIM2#

sub67709-50010

main67709-50010-J0iUCF10199208-199410

EISEN BLUE,TRIM8#

sub67709-50010

main67709-50010-K0iUCF10199208-199410

ME. TAUPE,TRIM9#

sub67709-50010

67837BSEAL, FRONT DOOR DUST PROOF

main67837-50010iUCF10198905-199410

sub67837-50030

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-50010iUCF10198905-199410

RH

main68220-50010iUCF10198905-199410

LH

7401

9015940223

main90159-40223

9018304046

main90183-04046

9018904022

main90189-04022

9018904165

main90189-04165

16 parts on this diagram · 3 diagrams in section
