PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

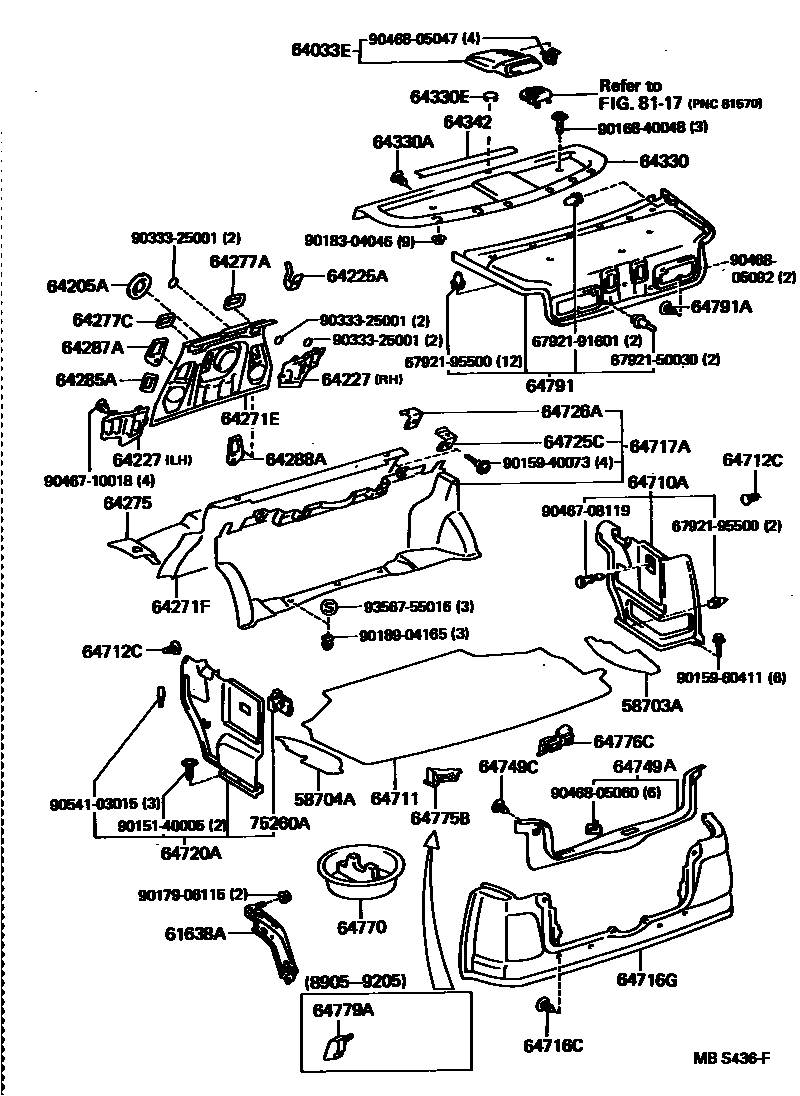

Parts diagram
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58773-50010i198905-199410
main58773-50020i198905-199203
W(CD PLAYER)
sub58773-50021
main58773-50021i199203-199410
W(CD PLAYER)
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58774-50010i198905-199203
sub58774-50011
main58774-50011i199203-199410
61638ABRACE, QUARTER PANEL, LH
main61638-50010i198905-199203
sub61638-50011
main61638-50011i199203-199410
64033EGRILLE SUB-ASSY, REAR SPEAKER
main64033-50010-02i198905-199004
DEEP RED,TRIM3#
sub64033-50011
sub81570-50011
main64033-50010-03i198905-199004
SHADOW GRAY,TRIM1#
sub64033-50011
sub81570-50011
main64033-50010-04i198905-199004
DARK BLUE,TRIM8#
sub64033-50011
sub81570-50011
main64033-50010-05i198905-199004
GREIGE,TRIM0#
sub64033-50011
sub81570-50011
main64033-50010-06i198905-199004
DARK ROSE,TRIM4#
sub64033-50011
sub81570-50011
main64033-50011-02i199004-199103
DEEP RED,TRIM3#
sub64033-50011
main64033-50011-03i199004-199208
SHADOW GRAY,TRIM1#
sub64033-50011
main64033-50011-04i199004-199208
DARK BLUE,TRIM8#
sub64033-50011
main64033-50011-05i199004-199208
GREIGE,TRIM0#
sub64033-50011
main64033-50011-06i199004-199208
DARK ROSE,TRIM4#
sub64033-50011
main64033-50011-B1i199208-199410
SHADOW GRAY,TRIM1#
sub64033-50011
main64033-50011-C1i199208-199410
BLACK,TRIM2#
sub64033-50011
main64033-50011-E1i199208-199410
OAK,TRIM0#
sub64033-50011
main64033-50011-J1i199208-199410
DK. BLUE,TRIM8#
sub64033-50011
main64033-50011-K1i199208-199410
TAUPE,TRIM9#
sub64033-50011
64205ACOVER SUB-ASSY, ROOM PARTITION
main64275-50010i198905-199410
64225AHANGER, REAR SEAT CUSHION SUPPORT
main64225-50010i198905-199410
64227EXTENSION, CENTER FLOOR TO BRACE
main64227-50010i198905-199410
RH
main64228-50010i198905-199410
LH
64271EPANEL, ROOM PARTITION
main64271-50010i198905-199310
sub64271-50011
main64271-50011i199310-199410
64271FTRIM, ROOM PARTITION
main64271-50020i198905-199208
sub64271-50030
main64271-50030i199208-199410
64275PAD, ROOM PARTITION TRIM, NO.2
main64274-50010i198905-199410
64277AMOULDING, ROOM PARTITION TRIM
main64277-50010i198905-199410
64277CCOVER, ROOM PARTITION, NO.2
main64277-50010i198905-199410
64285ACOVER, ROOM PARTITION, NO.3
main64285-50010i198905-199410
64287ACOVER, ROOM PARTITION, NO.4 RH
main64287-50010i198905-199410
64288ACOVER, ROOM PARTITION, NO.4 LH
main64288-50010i198905-199410
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-50010-02i198905-199103
DEEP RED,TRIM3#
sub64330-50010
main64330-50010-03i198905-199208
SHADOW GRAY,TRIM1#
sub64330-50010
main64330-50010-04i198905-199208
DARK BLUE,TRIM8#
sub64330-50010
main64330-50010-05i198905-199208
GREIGE,TRIM0#
sub64330-50010
main64330-50010-06i198905-199208
DARK ROSE,TRIM4#
sub64330-50010
main64330-50010-B0i199208-199410
SHADOW GRAY,TRIM1#
sub64330-50010
main64330-50010-C0i199208-199410
BLACK,TRIM2#
sub64330-50010
main64330-50010-E0i199208-199410
OAK,TRIM0#
sub64330-50010
main64330-50010-J0i199208-199410
DK. BLUE,TRIM8#
sub64330-50010
main64330-50010-K0i199208-199410
TAUPE,TRIM9#
sub64330-50010
main64330-50040-02i199008-199103
DEEP RED,TRIM3#
sub64330-50040
main64330-50040-03i199008-199208
SHADOW GRAY,TRIM1#
sub64330-50040
main64330-50040-04i199008-199208
DARK BLUE,TRIM8#
sub64330-50040
main64330-50040-05i199008-199208
GREIGE,TRIM0#
sub64330-50040
main64330-50040-06i199008-199208
DARK ROSE,TRIM4#
sub64330-50040
main64330-50040-B0i199208-199308
SHADOW GRAY,TRIM1#
sub64330-50040
main64330-50040-C0i199208-199308
BLACK,TRIM2#
sub64330-50040
main64330-50040-E0i199208-199308
OAK,TRIM0#
sub64330-50040
main64330-50040-J0i199208-199308
DK. BLUE,TRIM8#
sub64330-50040
main64330-50040-K0i199208-199308
TAUPE,TRIM9#
sub64330-50040
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-06055-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
sub90467-06055
main90467-06055-01i198905-199103
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-06055
main90467-06055-22i199208-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub90467-06055
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main64353-50010-B0i199008-199311
SHADOW GRAY,SHADOW GRAY,TRIM1#
sub64353-50010
main64353-50010-C0i199208-199308
BLACK,BLACK,TRIM2#
sub64353-50010
main64353-50010-D0i199008-199208
DEEP RED,DEEP RED,TRIM3#
sub64353-50010
main64353-50010-E0i199008-199208
GREIGE,GREIGE,TRIM0#
sub64353-50010
main64353-50010-E2i199208-199308
OAK,OAK,TRIM0#
sub64353-50010
main64353-50010-J0i199008-199308
DARK BLUE,DARK BLUE,TRIM8#
sub64353-50010
main64353-50010-K0i199208-199308
TAUPE,TAUPE,TRIM9#
sub64353-50010
64342COVER, PACKAGE TRAY TRIM, UNDER
main64342-50010i198905-199410
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
main64710-50010-01i198905-199103
BLACK,TRIM0#,1#,3#,4#,8#
main64710-50010-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
main64710-50011-C0i199208-199401
BLACK,TRIM0#,1#,2#,8#,9#
sub64710-50011
main64710-50011-C2i199401-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64710-50011
main64710-50020-01i199103-199208
W(CD PLAYER),BLACK,TRIM0#,1#,4#,8#
main64710-50020-01i198905-199103
W(CD PLAYER),BLACK,TRIM0#,1#,3#,4#,8#
main64710-50021-C0i199208-199401
W(CD PLAYER),BLACK,TRIM0#,1#,2#,8#,9#
sub64710-50021
main64710-50021-C0i199208-199401
BLACK,TRIM0#,1#,2#,8#,9#
sub64710-50021
main64710-50021-C2i199401-199410
W(CD PLAYER) OR TAIWAN SPEC,BLACK,TRIM0#,1#,2#,8#,9#
sub64710-50021
main64710-50021-C2i199401-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64710-50021
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-50010-01i198905-199103
BLACK,TRIM0#,1#,3#,4#,8#
main64711-50010-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
main64711-50020-01i199103-199208
W(CD PLAYER),BLACK,TRIM0#,1#,4#,8#
main64711-50020-01i198905-199103
W(CD PLAYER),BLACK,TRIM0#,1#,3#,4#,8#
main64711-50070-C0i199208-199401
BLACK,TRIM0#,1#,2#,8#,9#
sub64711-50070
main64711-50070-C2i199401-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64711-50070
main64711-50080-C0i199208-199401
W(CD PLAYER),BLACK,TRIM0#,1#,2#,8#,9#
sub64711-50080
main64711-50080-C0i199208-199401
BLACK,TRIM0#,1#,2#,8#,9#
sub64711-50080
main64711-50080-C2i199401-199410
W(CD PLAYER) OR TAIWAN SPEC,BLACK,TRIM0#,1#,2#,8#,9#
sub64711-50080
main64711-50080-C2i199401-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64711-50080
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-05004-11i198905-198911
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05004
main90467-05004-11i198905-198911
W(CD PLAYER),BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05004
main90467-05020-01i198911-198912
BLACK,TRIM1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i198912-199103
W(CD PLAYER),BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i198912-199103
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199103-199208
W(CD PLAYER),BLACK,TRIM0#,1#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199208-199401
W(CD PLAYER),BLACK,TRIM0#,1#,2#,8#,9#,TYPE A
sub90467-05020
sub90467-05027
main90467-05020-01i198911-198912
W(CD PLAYER),BLACK,TRIM1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199208-199410
BLACK,TRIM0#,1#,2#,8#,9#,TYPE A
sub90467-05020
sub90467-05027
main90467-05020-01i199401-199410
W(CD PLAYER) OR TAIWAN SPEC,BLACK,TRIM0#,1#,2#,8#,9#,TYPE A
sub90467-05020
sub90467-05027
main90467-05020-22i199401-199410
W(CD PLAYER) OR TAIWAN SPEC,GRAPHITE,TRIM0#,1#,2#,8#,9#,TYPE A
sub90467-05020
sub90467-05027
main90467-05020-22i199208-199410
GRAPHITE,TRIM0#,1#,2#,8#,9#,TYPE A
sub90467-05020
sub90467-05027
main90467-05020-22i199208-199401
W(CD PLAYER),GRAPHITE,TRIM0#,1#,2#,8#,9#,TYPE A
sub90467-05020
sub90467-05027
main90467-06114-C0i199208-199410
BLACK,TRIM0#,1#,2#,8#,9#,TYPE B
sub90467-06114
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05004-11i198905-198911
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05004
main90467-05020-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i198911-198912
BLACK,TRIM1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i198912-199103
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199208-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub90467-05020
sub90467-05027
main90467-05020-22i199208-199410
GRAPHITE,TRIM0#,1#,2#,8#,9#
sub90467-05020
sub90467-05027
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-50010-01i198905-199103
BLACK,TRIM0#,1#,3#,4#,8#
main64716-50010-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
main64716-50011-C0i199208-199401
BLACK,TRIM0#,1#,2#,8#,9#
sub64716-50011
main64716-50011-C2i199401-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64716-50011
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-50010-01i198905-199103
BLACK,TRIM0#,1#,3#,4#,8#
main64717-50010-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
main64717-50011-C0i199208-199401
BLACK,TRIM0#,1#,2#,8#,9#
sub64717-50011
main64717-50011-C2i199401-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64717-50011
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
main64720-50010-01i198905-198908
W(AIR SUSPENSION),BLACK,TRIM0#,1#,3#,4#,8#
sub64720-50012
main64720-50011-01i198908-198910
W(AIR SUSPENSION),BLACK,TRIM0#,1#,3#,4#,8#
sub64720-50012
main64720-50012-01i198910-198911
W(AIR SUSPENSION),BLACK,TRIM0#,1#,3#,4#,8#
sub64720-50013
main64720-50012-01i198911-199006
BLACK,TRIM0#,1#,3#,4#,8#
sub64720-50013
main64720-50013-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
main64720-50013-01i199006-199103
BLACK,TRIM0#,1#,3#,4#,8#
main64720-50014-C0i199208-199401
BLACK,TRIM0#,1#,2#,8#,9#
sub64720-50014
main64720-50014-C2i199401-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64720-50014
main64720-50020-01i198905-198908
BLACK,TRIM0#,1#,3#,4#,8#
sub64720-50012
main64720-50021-01i198908-198910
BLACK,TRIM0#,1#,3#,4#,8#
sub64720-50012
main64720-50022-01i198910-198911
BLACK,TRIM0#,1#,3#,4#,8#
sub64720-50012
64725CRETAINER, LUGGAGE COMPARTMENT COVER
main64725-50060i198905-199410
64726ACLIP, LUGGAGE TRIM, REAR
main64726-50010i198905-199410
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
main64749-50010-01i198905-199103
BLACK,TRIM0#,1#,3#,4#,8#
sub64749-50010
main64749-50010-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
sub64749-50010
main64749-50010-C0i199208-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64749-50010
64749CCLIP(FOR LUGGAGE DOOR STRIKER COVER)
main90467-05004-11i198905-198911
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05004
main90467-05020-01i198912-199103
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i198911-198912
BLACK,TRIM1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199208-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub90467-05020
sub90467-05027
main90467-05020-22i199208-199410
GRAPHITE,TRIM0#,1#,2#,8#,9#
sub90467-05020
sub90467-05027
64770COVER ASSY, SPARE WHEEL
main64771-24020i199208-199410
main64771-50010i198905-199208
64775BGUARD, SPARE WHEEL
main64775-50020i199208-199410
64776CGUARD, SPARE WHEEL, NO.2
main64776-50010i199208-199410
64779ASTOPPER, SPARE WHEEL COVER
main64779-50010i198905-199208
64791COVER, BACK DOOR TRIM
main64791-50010-01i198905-199103
BLACK,TRIM0#,1#,3#,4#,8#
sub64791-50030
main64791-50010-01i199103-199207
BLACK,TRIM0#,1#,4#,8#
sub64791-50030
main64791-50030-C0i199207-199208
BLACK,TRIM0#,1#,4#,8#
main64791-50031-C0i199208-199401
BLACK,TRIM0#,1#,2#,8#,9#
sub64791-50031
main64791-50031-C2i199401-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub64791-50031
64791ACLIP(FOR BACK DOOR TRIM)
main90467-05004-11i198905-198911
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05004
main90467-05020-01i198911-198912
BLACK,TRIM1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i198912-199103
BLACK,TRIM0#,1#,3#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
sub90467-05020
sub90467-05027
main90467-05020-01i199208-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub90467-05020
sub90467-05027
main90467-05020-22i199208-199410
GRAPHITE,TRIM0#,1#,2#,8#,9#
sub90467-05020
sub90467-05027
75260ALOCK ASSY, TOOL BOX
main75260-50010-01i198905-198908
BLACK,TRIM0#,1#,3#,4#,8#
main75260-50011-01i198908-199103
BLACK,TRIM0#,1#,3#,4#,8#
sub75260-50011
main75260-50011-01i199103-199208
BLACK,TRIM0#,1#,4#,8#
sub75260-50011
main75260-50011-C0i199208-199410
BLACK,TRIM0#,1#,2#,8#,9#
sub75260-50011
8117
6792150030RETAINER, FRONT DOOR SCUFF PLATE
main67921-50030
6792191601RETAINER, FRONT DOOR SCUFF PLATE
main67921-91601
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9015140005
main90151-40005
9015940073
main90159-40073
9015960411
main90159-60411
9016840048
main90168-40048
9017906115
main90179-06115
9018304046
main90183-04046
9018904165
main90189-04165
9033325001
main90333-25001
9046708119
main90467-08119
9046710018
main90467-10018
9046805047
main90468-05047
9046805060
main90468-05060
9046805092
main90468-05092
9054103015
main90541-03015
9356755016
main93567-55016

56 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
