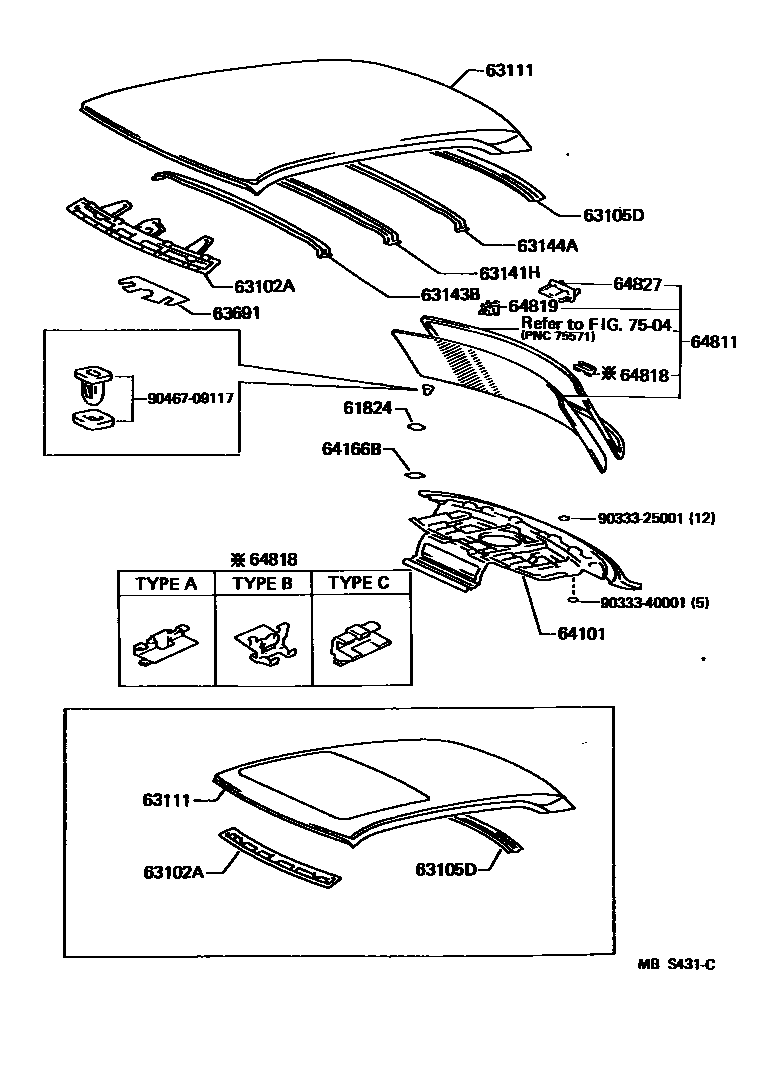

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

61824PLATE, NOISE CONTROL, NO.1

main61824-50010iUCF10198905-198911

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-50010iUCF10198905-199410

main63102-50020iUCF10198905-199410

W(MOON ROOF)

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-50010iUCF10198905-199202

sub63105-50011

main63105-50011iUCF10199202-199410

63111PANEL, ROOF

main63101-50020iUCF10198905-199410

W(MOON ROOF)

main63111-50010iUCF10198905-199410

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-50010iUCF10198905-199410

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-50010iUCF10198905-199410

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-50010iUCF10198905-199410

63691PAD, ROOF SILENCER, NO.21

main63691-50010iUCF10198905-199410

64101PANEL SUB-ASSY, UPPER BACK

main64101-50010iUCF10198905-199410

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-50010iUCF10198905-199410

64811GLASS, BACK WINDOW

main64810-50040iUCF10198905-199208

*EHTT,T=3.5,BRONZE

sub64810-50041

main64810-50041iUCF10199208-199410

*EHTT,T=3.5,BRONZE

main64810-50050iUCF10198905-199208

*EHTT,T=3.5,GRAY

sub64810-50051

main64810-50051iUCF10199208-199410

*EHTT,T=3.5,GRAY

sub64810-50041

main64810-50060iUCF10198905-199208

*EHTT,T=3.5,BLUE

sub64810-50061

main64810-50061iUCF10199208-199410

*EHTT,T=3.5,BLUE

64818SPACER, BACK WINDOW GLASS

main64818-50010iUCF10198912-199208

TYPE A, BLUE

main64818-50010iUCF10198905-199410

TYPE A,BLUE

main64818-50060iUCF10198905-199410

TYPE B,BLUE

main75495-50010iUCF10198905-199410

TYPE C,ORANGE

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-50010iUCF10198905-198910

sub64827-50010

main64819-50040iUCF10198910-199410

64827CLIP, BACK WINDOW GLASS, RH

main64827-50010iUCF10198910-199410

7504

9033325001

main90333-25001

9033340001

main90333-40001

9046709117

main90467-09117

18 parts on this diagram · 2 diagrams in section
