SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61113APANEL, SIDE, OUTER NO.2 RH
61113BCUSHION(FOR CENTER PILLER)
61114BPANEL, SIDE, OUTER NO.2 LH
61127BREINFORCEMENT, COWL SIDE PANEL, NO.2 RH
61128CREINFORCEMENT, COWL SIDE PANEL, NO.2 LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61131CPILLAR, FRONT BODY, OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61132BPILLAR, FRONT BODY, OUTER LH
61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61137AREINFORCEMENT, FRONT BODY PILLAR, LOWER OUTER RH
61138AREINFORCEMENT, FRONT BODY PILLAR, LOWER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61151ARETAINER, FRONT BODY PILLAR UPPER HINGE
61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH
61154BRETAINER, FRONT BODY PILLAR LOWER HINGE, LH
61177BBRACKET, DOOR CHECK ARM
61178BBRACKET, DOOR CHECK ARM
61181ABRACKET, INSTRUMENT SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61377BRACKET, REAR DOOR CHECK ARM, RH
61378ABRACKET, REAR DOOR CHECK ARM, LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
sub61601-50021
61612PANEL, QUARTER, LH
sub61602-50031
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
sub61607-50904
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
sub61608-50912
61647CREINFORCEMENT, WHEEL HOUSE, RH
61648CREINFORCEMENT, WHEEL HOUSE, LH
61667DSEAL, QUARTER PANEL
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
sub61698-50020
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61815BCOVER, ROOF SIDE, INNER UPPER RH
61816BCOVER, ROOF SIDE, INNER UPPER LH
61826APLATE, NOISE CONTROL, NO.3
60X120
45X67
45 X 67
30X65
W(MOON ROOF),30X65
30 X 65
65 X 120
65X120
62381AWEATHERSTRIP, ROOF SIDE RAIL, RH
62382AWEATHERSTRIP, ROOF SIDE RAIL, LH
6403
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
64333BCOVER, PACKAGE TRAY TRIM SIDE, RH
64349BCOVER, PACKAGE TRAY TRIM SIDE, LH
64571COVER, LUGGAGE COMPARTMENT DOOR HINGE
67867FRETAINER, DOOR WEATHERSTRIP, RH
67868FRETAINER, DOOR WEATHERSTRIP, LH
9011906514
main90119-06514
9017908025
main90179-08025
9026904024
main90269-04024
9033315002
main90333-15002
9033320001
main90333-20001
9033325001
main90333-25001
9033340001
main90333-40001
9048016024
main90480-16024
9095001173
main90950-01173
9095001419
main90950-01419
9095001759
main90950-01759
9095001811
main90950-01811
9165540820
main91655-40820

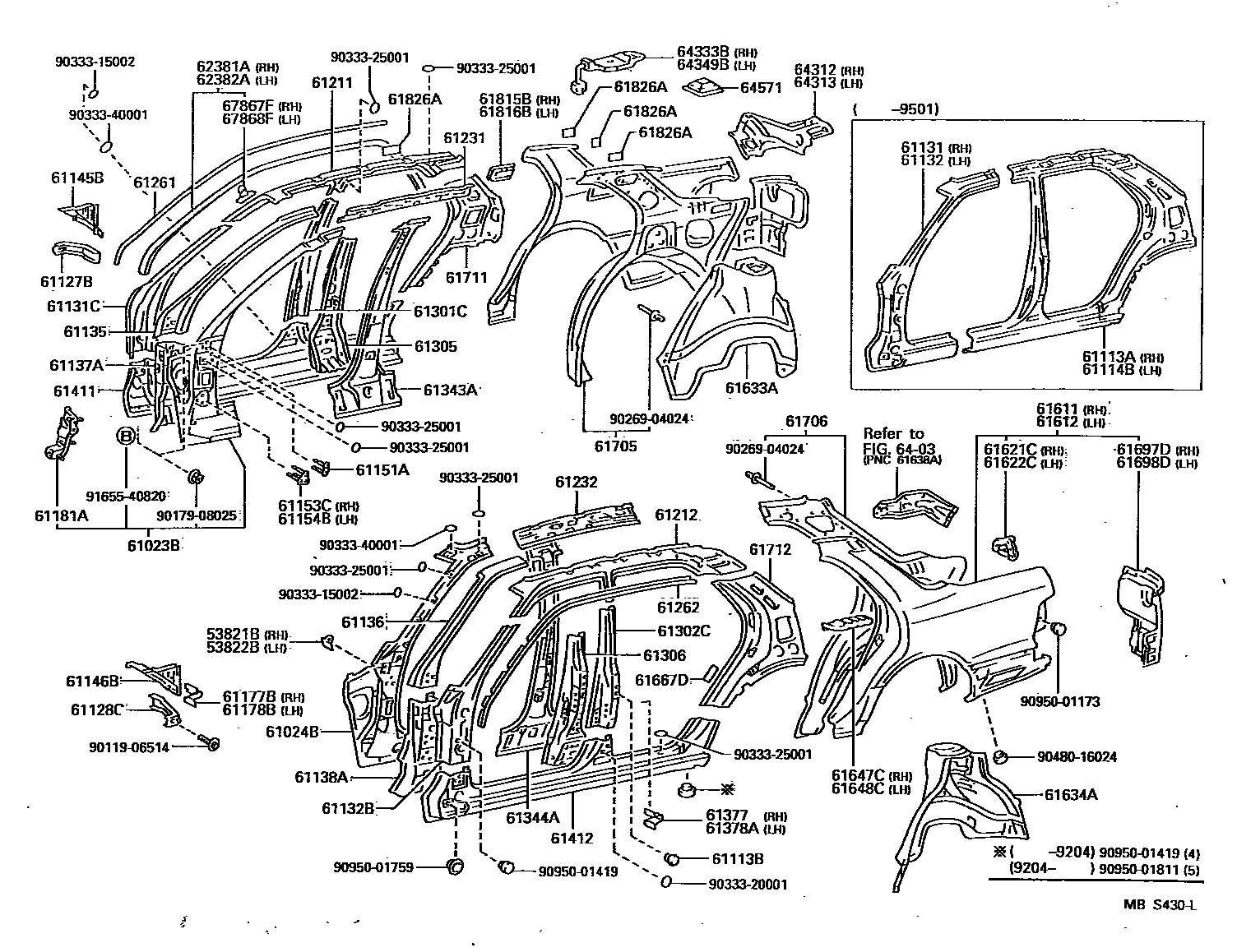

82 parts on this diagram · 1 diagram in section
