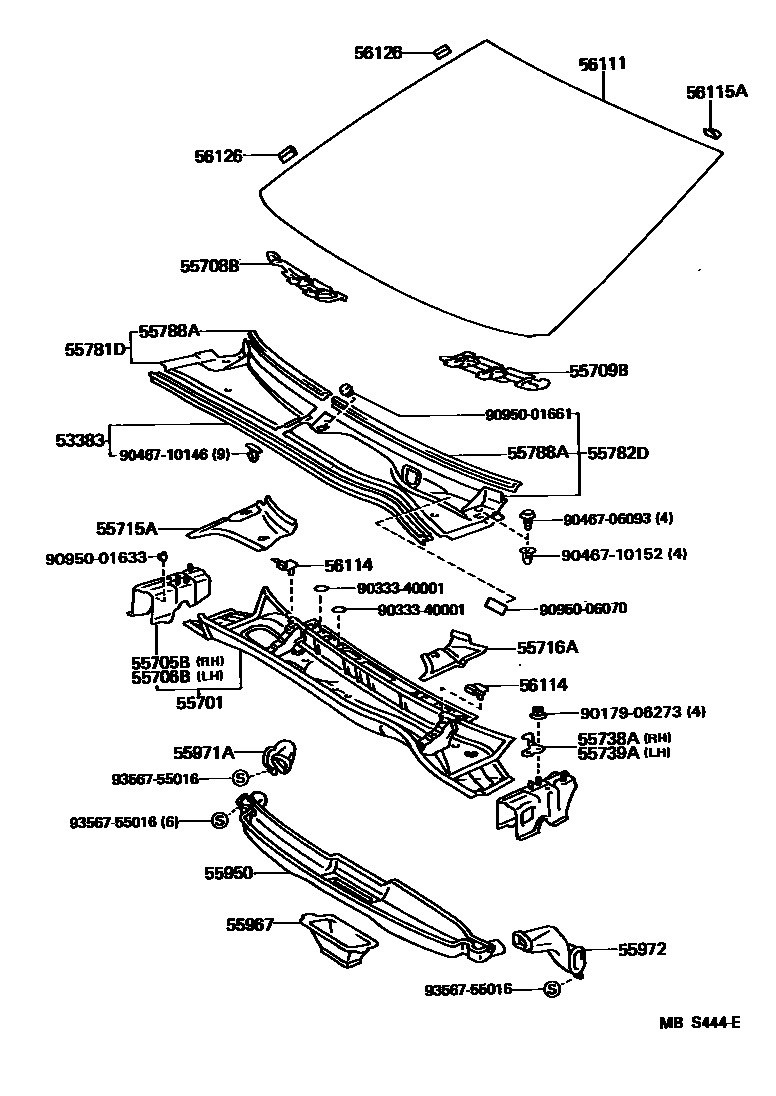

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55738ASTOPPER, HOOD, RH
55739ASTOPPER, HOOD, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
RH
LH
55950NOZZLE ASSY, DEFROSTER
55967NOZZLE, DEFROSTER, LOWER
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
56111GLASS, WINDSHIELD
*TL,T=4.7,BRONZE
*TL,T=4.7,BLUE
*TL,T=4.7,GRAY
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56126SPACER, WINDSHIELD GLASS, NO.2
9017906273
main90179-06273
9033340001
main90333-40001
9046706093
main90467-06093
9046710146
main90467-10146
9046710152
main90467-10152
9095001633
main90950-01633
9095001661
main90950-01661
9095006070
main90950-06070
9356755016
main93567-55016
30 parts on this diagram · 1 diagram in section
