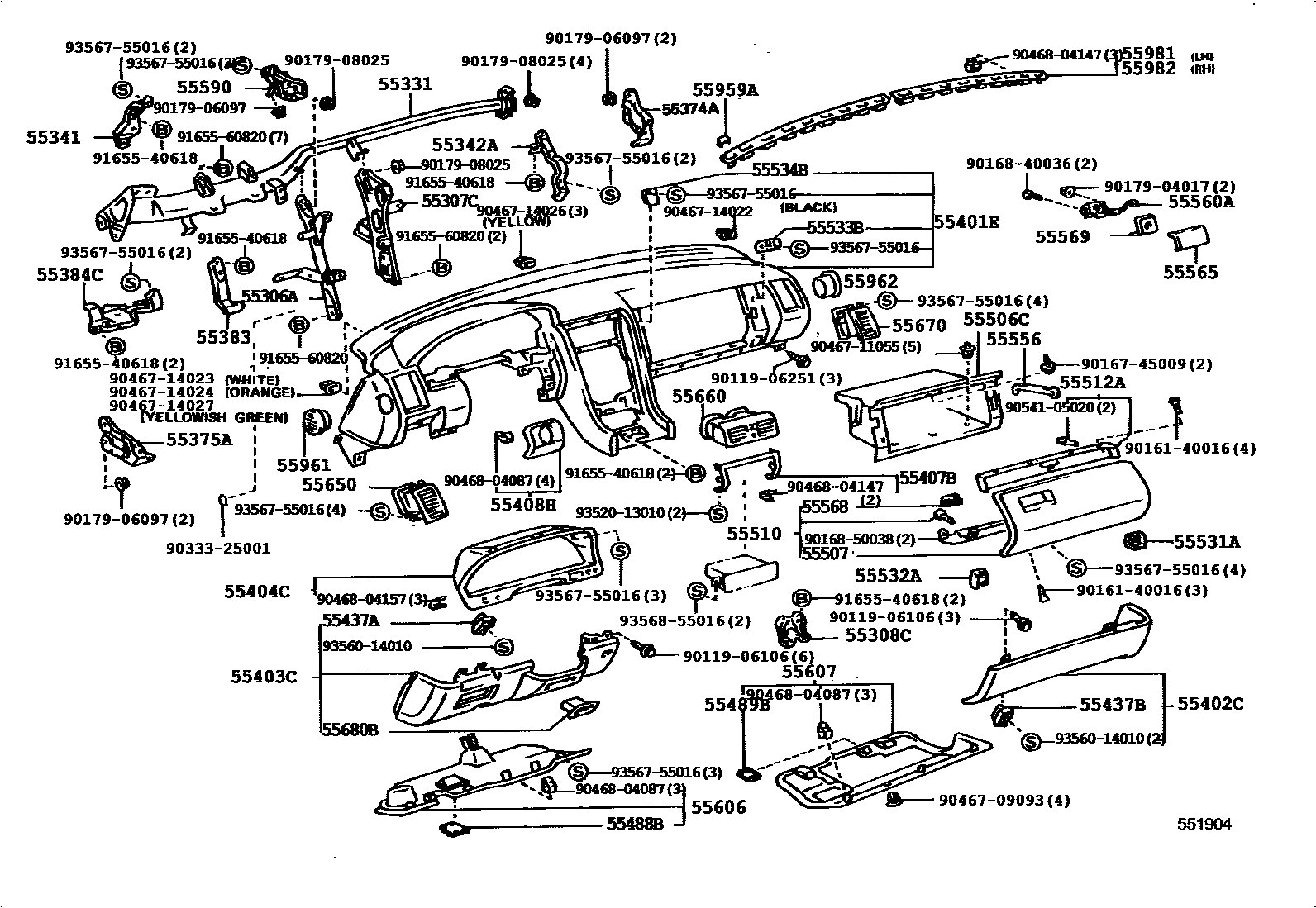

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55383BRACKET, FINISH PANEL MOUNTING, NO.3
55384CBRACKET, FINISH PANEL MOUNTING, NO.4
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
DEEP RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
SLATE GRAY,TRIM1#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
ME. TAUPE,TRIM9#
55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55407BBASE SUB-ASSY, SWITCH HOLE
W(TRACTION CONTROL)
W(TRACTION CONTROL) OR W(HEADLAMP CLEANER)
W(SEAT HEATER)
W(TRACTION CONTROL & SEAT HEATER)
W(TRACTION CONTROL & SEAT HEATER) OR W(HEADLAMP CLEANER & SEAT HEATER)
W(TRACTION CONTROL & HEADLAMP CLEANER)
W(TRACTION CONTROL & HEADLAMP CLEANER & SEAT HEATER)
55408HPAD SUB-ASSY, INSTRUMENT PANEL CYLINDER
BLACK,TRIM2#
OAK,TRIM0#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
55437BRETAINER, INSTR PANEL FINISH PANEL, NO.2
55488BLENS, FRONT FOOT LAMP, NO.1
55489BLENS, FRONT FOOT LAMP, NO.2
55506CCOMPARTMENT SUB-ASSY, GLOVE
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55510DOOR ASSY, GLOVE COMPARTMENT
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
55512APLATE, GLOVE COMPARTMENT
55531APANEL, GLOVE COMPARTMENT, NO.1
55532APANEL, GLOVE COMPARTMENT, NO.2
55533BPANEL, GLOVE COMPARTMENT SIDE, RH
55534BPANEL, GLOVE COMPARTMENT SIDE, LH
55556ARM, GLOVE COMPARTMENT DOOR CHECK
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55568PLATE, GLOVE COMPARTMENT DOOR PAD
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
DEEP RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
SLATE GRAY,TRIM1#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
ME. TAUPE,TRIM9#
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
DEEP RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
ROSE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
SLATE GRAY,TRIM1#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
ME. TAUPE,TRIM9#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680BREGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
IVORY,TRIM0#
SLATE GRAY,TRIM1#
EISEN BLUE,TRIM8#
ME. TAUPE,TRIM9#
55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
55982GARNISH, DEFROSTER NOZZLE, NO.2
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
9011906106
9011906251
9016140016
9016745009
9016840036
9016850038
9017904017
9017906097
9017908025
9033325001
9046709093
9046711055
9046714022
9046714023
9046714024
9046714026
9046714027
9046804087
9046804147
9046804157
9054105020
9165540618
9165560820
9352013010
9356014010
9356755016
9356855016
71 parts on this diagram · 2 diagrams in section
