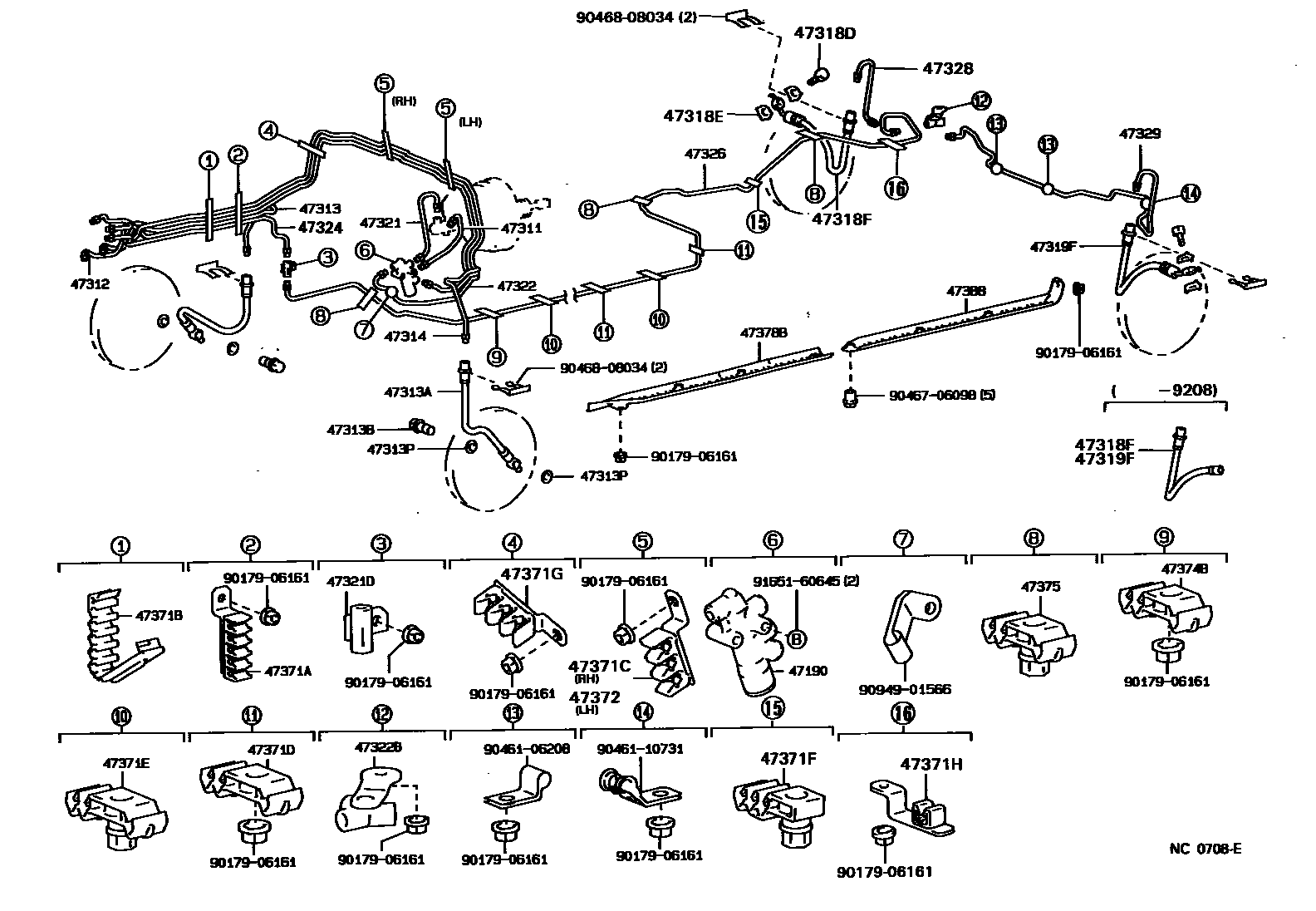

BRAKE TUBE & CLAMP

0001 1 0002 1W(TRACTION CONTROL) 0003 1 0004 1 0005 1W(TRACTION CONTROL) 0006 1W(TRACTION CONTROL) 0007 1W(TRACTION CONTROL) 0008 1W(TRACTION CONTROL)

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-50010iUCF10198905-198906

sub47190-50030

main47190-50030iUCF10198906-199208

47311TUBE, FRONT BRAKE, NO.1

main47311-50010iUCF10198905-199208

W(*TRC)

main47311-50020iUCF10198905-199208

47312TUBE, FRONT BRAKE, NO.2

main47312-50010iUCF10198905-199208

W(*TRC)

main47312-50020iUCF10198905-199208

main47312-50070iUCF10..USA199208-199212

main47312-50071iUCF10..USA199212-199410

main47312-50080iUCF10..CND199208-199212

W(*TRC)

main47312-50081iUCF10..CND199212-199410

W(*TRC)

47313TUBE, FRONT BRAKE, NO.3

main47313-50010iUCF10198905-199208

main47313-50020iUCF10198905-199208

W(*TRC)

main47313-50070iUCF10..USA199208-199410

main47313-50080iUCF10..CND199208-199410

W(*TRC)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02585iUCF10198905-199208

sub90947-02738

main90947-02738iUCF10199208-199410

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iUCF10198905-199208

main90401-10042iUCF10199208-199301

main90401-10044iUCF10199301-199410

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-24010iUCF10199208-199301

main47389-30010iUCF10199105-199410

main90430-10074iUCF10198905-199105

47314TUBE, FRONT BRAKE, NO.4

main47314-50010iUCF10198905-199208

W(*TRC)

main47314-50020iUCF10198905-199208

main47314-50070iUCF10..USA199208-199212

main47314-50071iUCF10..USA199212-199410

main47314-50080iUCF10..CND199208-199212

W(*TRC)

main47314-50081iUCF10..CND199212-199410

W(*TRC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iUCF10198905-199208

main90401-10042iUCF10199208-199301

main90401-10044iUCF10199301-199410

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-24010iUCF10199208-199301

main47389-30010iUCF10199105-199410

main90430-10074iUCF10198905-199105

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02739iUCF10199208-199410

sub90947-02931

main96940-33906iUCF10198905-199208

sub90947-02944

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02739iUCF10199208-199410

sub90947-02931

main96940-33906iUCF10198905-199208

sub90947-02944

47321TUBE, REAR BRAKE, NO.1

main47321-50010iUCF10198905-199208

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10158iUCF10..CND198905-199410

W(*TRC)

main90412-10167iUCF10..USA198905-199410

47322TUBE, REAR BRAKE, NO.2

main47322-50010iUCF10198905-199208

W(*TRC)

main47322-50020iUCF10198905-199208

main47322-50070iUCF10..USA199208-199212

main47322-50071iUCF10..USA199212-199410

main47322-50080iUCF10..CND199208-199212

W(*TRC)

main47322-50081iUCF10..CND199212-199410

W(*TRC)

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10164iUCF10..CND198905-199410

W(*TRC)

main90413-10234iUCF10198905-199410

47324TUBE, REAR BRAKE, NO.4

main47324-50010iUCF10198905-199208

main47324-50060iUCF10..USA199208-199410

main47324-50070iUCF10..CND199208-199410

W(*TRC)

47326TUBE, REAR BRAKE, NO.6

main47326-50010iUCF10198905-199410

47328TUBE, REAR BRAKE, NO.8

main47328-50010iUCF10198905-199410

47329TUBE, REAR BRAKE, NO.9

main47329-50010iUCF10198905-199410

47371ACLAMP, BRAKE TUBE, NO.1

main47371-50020iUCF10..CND198905-199410

W(*TRC)

main47372-50010iUCF10198905-199410

47371BCLAMP, BRAKE TUBE, NO.6

main47371-50040iUCF10..USA198905-199410

main47372-50050iUCF10..CND198905-199410

W(*TRC)

47371CCLAMP, BRAKE TUBE, NO.7

main47371-50050iUCF10198905-199208

main47371-50050iUCF10..CND199208-199410

W(*TRC)

main47372-50150iUCF10..USA199208-199410

47371DCLAMP, BRAKE TUBE, NO.8

main47371-50060iUCF10198905-199410

47371ECLAMP, BRAKE TUBE, NO.9

main47372-50070iUCF10198905-199410

47371FCLAMP, BRAKE TUBE, NO.10

main47372-50110iUCF10198905-199410

47371GCLAMP, BRAKE TUBE, NO.11

main47372-50160iUCF10..USA199208-199410

47371HCLAMP, BRAKE TUBE, NO.12

main47372-50180iUCF10..USA199304-199410

47372CLAMP, BRAKE TUBE, NO.2

main47371-50010iUCF10198905-199410

W(*TRC)

main47372-50020iUCF10..USA198905-199410

47374BCLAMP, BRAKE TUBE, NO.4

main47371-50030iUCF10198905-199410

main47372-50040iUCF10198905-199208

W(*TRC)

main47372-50130iUCF10..CND199208-199410

W(*TRC)

47375CLAMP, BRAKE TUBE, NO.5

main47371-50030iUCF10..CND198905-199410

W(*TRC)

main47372-50050iUCF10198905-199410

47378BPROTECTOR, TUBE, UPPER

main47378-50010iUCF10198905-199410

47388PROTECTOR, BRAKE TUBE, LOWER

main47388-50010iUCF10198905-199410

9017906161

main90179-06161

9046106208

main90461-06208

9046110731

main90461-10731

9046706098

main90467-06098

9046808034

main90468-08034

9094901566

main90949-01566

9165160645

main91651-60645

40 parts on this diagram · 8 diagrams in section
