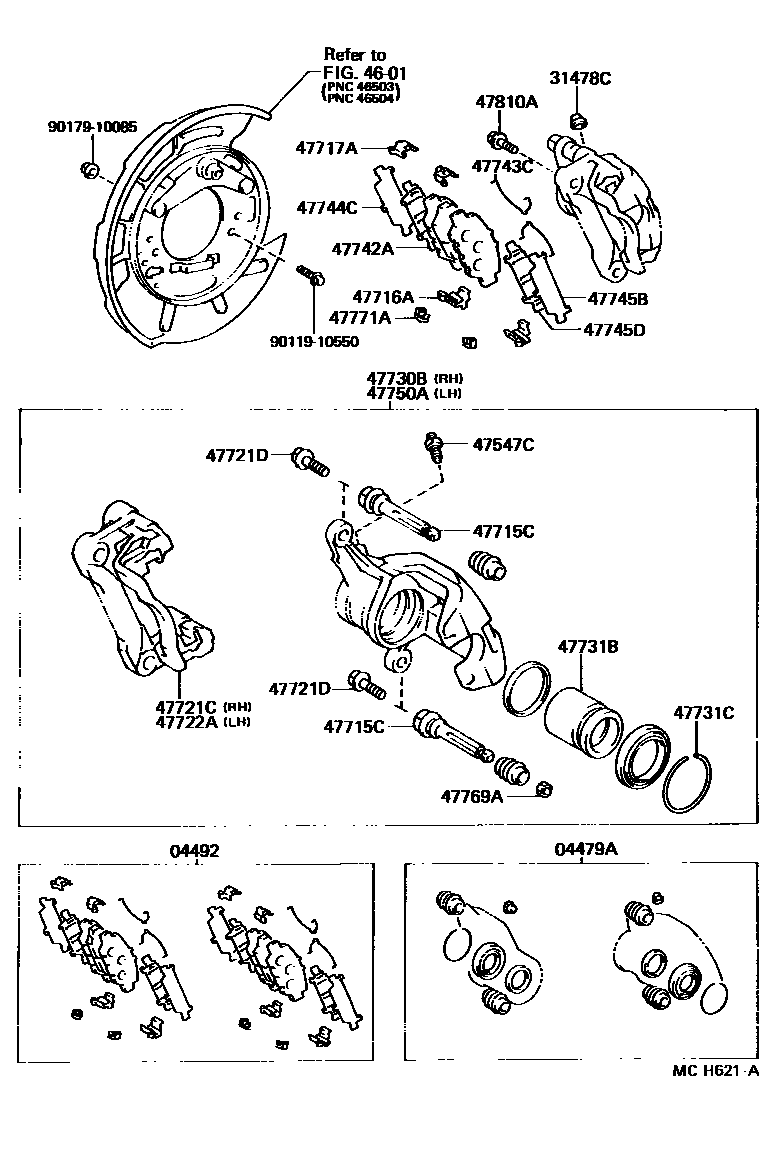

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50020iUCF10198905-199208

main04479-50060iUCF10199208-199410

04492PAD KIT, DISC BRAKE, REAR

main04492-50010iUCF10198905-198906

sub04466-50070

main04492-50011iUCF10198906-199208

sub04466-50010

main04492-50020iUCF10199208-199301

sub04466-50050

main04492-50050iUCF10199301-199410

sub04492-50051

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iUCF10198905-199208

main31478-50020iUCF10199208-199410

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iUCF10198905-199410

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-50010iUCF10198905-199208

main47715-50010iUCF10199208-199410

SUB PIN SIDE

main47715-50030iUCF10199208-199410

MAIN PIN SIDE

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-50020iUCF10198905-199410

INNER

main47716-50040iUCF10198905-199410

OUTER

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-50020iUCF10198905-199410

INNER

main47717-50040iUCF10198905-199410

OUTER

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-50020iUCF10198905-199208

main47721-50070iUCF10199208-199410

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iUCF10198905-199410

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-50020iUCF10198905-199208

main47722-50070iUCF10199208-199410

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-50020iUCF10198905-199208

main47730-50090iUCF10199208-199410

47731BPISTON, REAR DISC BRAKE

main47731-50020iUCF10198905-199208

main47731-50050iUCF10199208-199410

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-50002iUCF10198905-199410

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47744-50020iUCF10198905-199208

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-50020iUCF10198905-199410

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-24020iUCF10199208-199301

main47745-50020iUCF10198905-199208

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-24020iUCF10199208-199301

main47745-50020iUCF10198905-199208

47745DSHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE)

main47744-50020iUCF10198905-199208

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-50020iUCF10198905-199208

main47750-50090iUCF10199208-199410

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iUCF10198905-199410

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-50010iUCF10198905-199208

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iUCF10198905-199410

9011910550

main90119-10550

9017910085

main90179-10085
