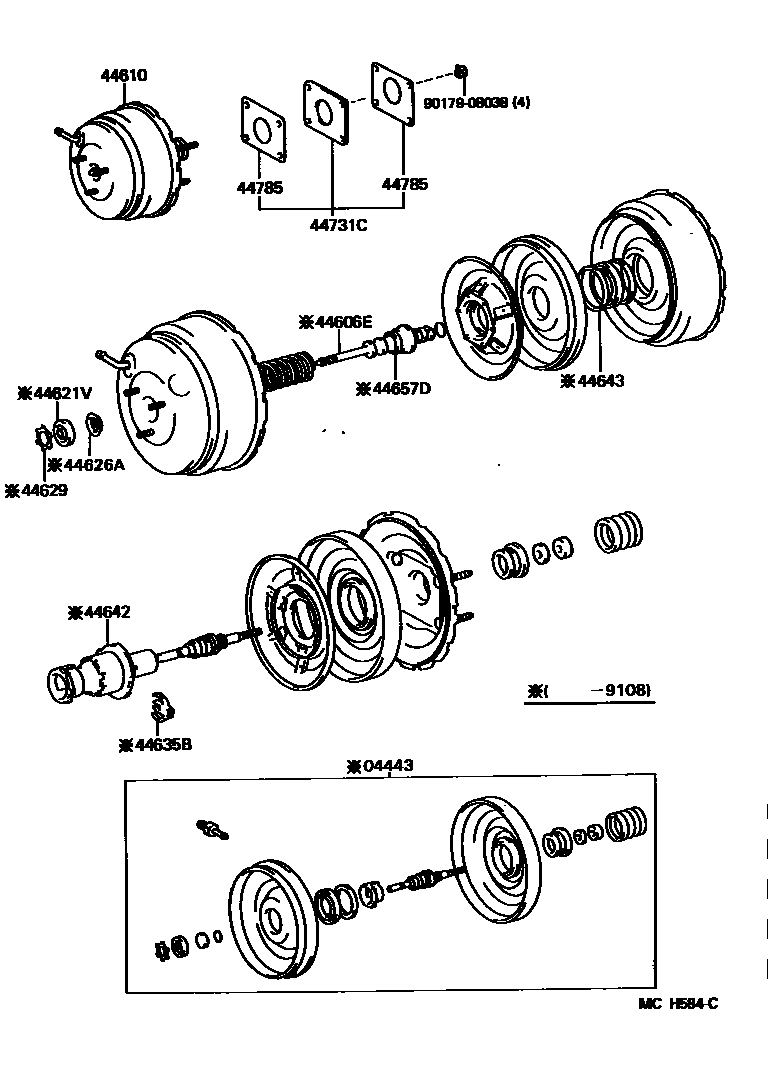

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04443BOOSTER KIT, BRAKE

main04443-50010iUCF10198905-199008

main04443-50020iUCF10199008-199208

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-20800iUCF10198905-199208

44610BOOSTER ASSY, BRAKE

main44610-50010iUCF10198905-199008

main44610-50020iUCF10198905-199008

W(*TRC)

main44610-50050iUCF10199008-199108

sub44610-50051

main44610-50051iUCF10199108-199308

main44610-50052iUCF10..USA199308-199410

main44610-50060iUCF10199008-199108

W(*TRC)

sub44610-50061

main44610-50061iUCF10..USA199108-199308

W(*TRC)

main44610-50062iUCF10..CND199308-199410

W(*TRC)

44621VSEAL, BOOSTER BODY

main44621-14030iUCF10198905-199208

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iUCF10198905-199208

44629RING, CIRCULAR INTERNAL

main44628-60010iUCF10198905-199208

44635BKEY, VALVE STOPPER

main44635-20800iUCF10198905-199208

44642PISTON, BRAKE BOOSTER

main44641-30560iUCF10198905-199208

DIAPHRAGM

main44642-20800iUCF10198905-199208

PISTON

44643RETAINER, DIAPHRAGM

main44643-20800iUCF10198905-199208

44657DCASE, REACTION DISC

main44657-50010iUCF10198905-199208

44731CBRACKET, BRAKE BOOSTER

main44731-50010iUCF10198905-199205

sub44731-50011

main44731-50011iUCF10199205-199410

sub44731-50020

44785GASKET, BRAKE BOOSTER

main44785-50010iUCF10198905-199410

9017908038

main90179-08038

13 parts on this diagram · 2 diagrams in section
