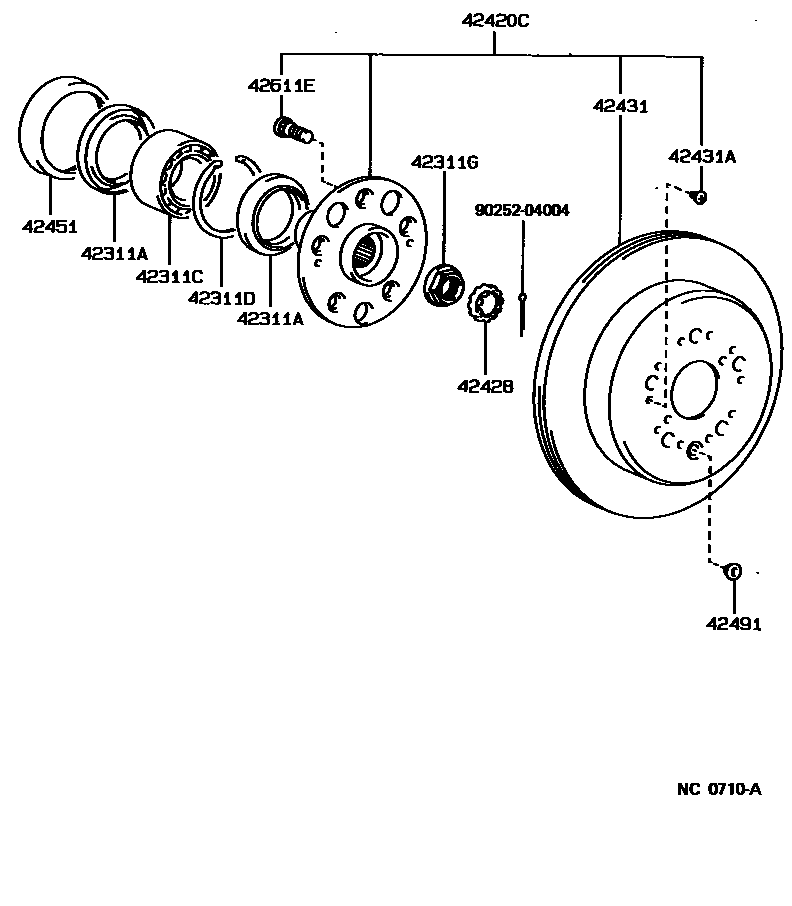

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-57001iUCF10198905-199208

OUTER

main90311-57002iUCF10199208-199410

INNER

main90311-63001iUCF10198905-199208

INNER

main90311-63002iUCF10199208-199410

OUTER

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-43005iUCF10198905-199410

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-85002iUCF10198905-199410

42311GNUT(FOR REAR AXLE SHAFT)

main90179-24009iUCF10198905-199410

42420CSHAFT & DISC ASSY, REAR AXLE

main42420-50020iUCF10198905-199208

main42420-50031iUCF10199210-199410

sub42420-50050

main42420-50041iUCF10199208-199210

sub42420-50050

42428PLATE, REAR AXLE LOCK NUT

main42428-22010iUCF10198905-199410

42431DISC, REAR

main42431-50020iUCF10198905-199208

main42431-50040iUCF10199208-199410

sub42431-40080

42431ASCREW (FOR REAR DISC)

main90155-60002iUCF10198905-199410

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-50010iUCF10198905-199410

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iUCF10198905-199410

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049iUCF10198905-199210

main90942-02070iUCF10199210-199410

sub90942-02049

9025204004

main90252-04004

12 parts on this diagram · 2 diagrams in section
