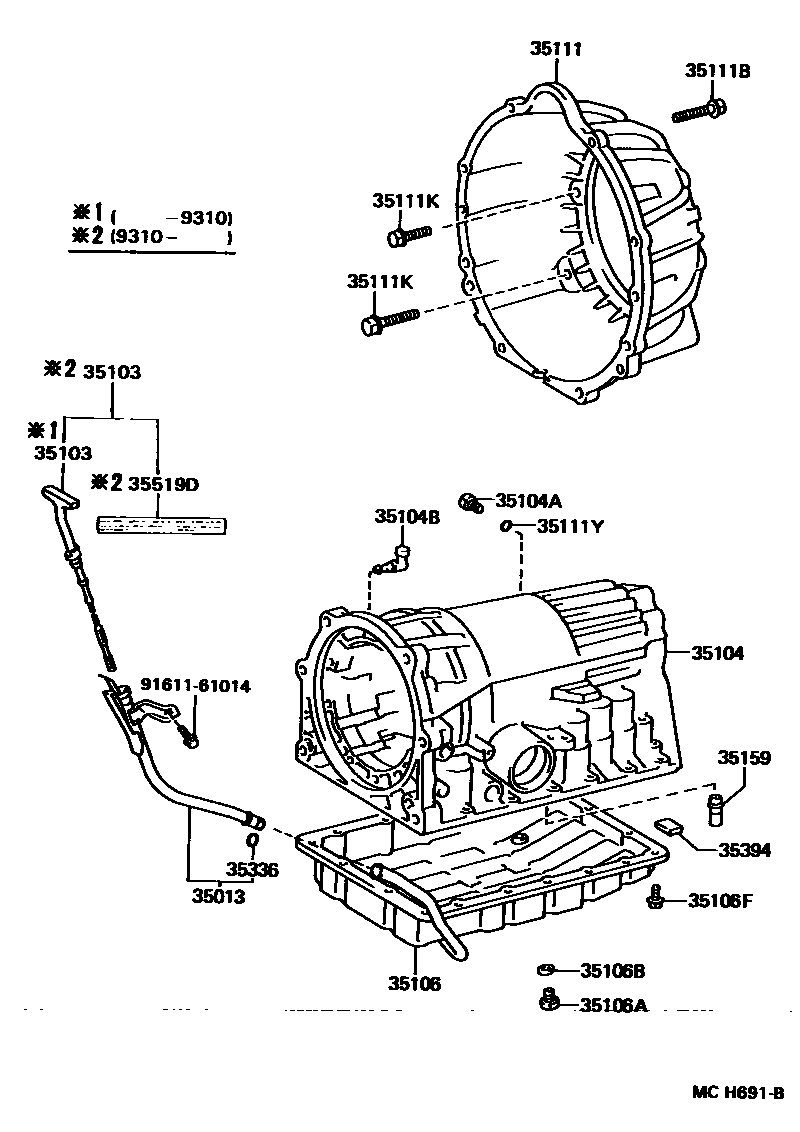

TRANSMISSION CASE & OIL PAN (ATM)

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-50011iUCF10198905-199208

main35013-50020iUCF10199208-199410

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-50010iUCF10198905-199003

main35103-50020iUCF10199003-199310

main35103-50021iUCF10199310-199410

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30170iUCF10199110-199410

main35104-50011iUCF10198905-198912

main35104-50012iUCF10198912-199110

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iUCF10198905-199410

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iUCF10198905-199410

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-50011iUCF10198905-199410

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10012iUCF10198905-199410

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-50010iUCF10198905-199410

sub35178-30010

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×19iUCF10198905-199410

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-50010iUCF10198905-199410

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main91611-61040×4iUCF10198905-199301

*10-1.25PX40-30

sub91612-61040

main91611-61045×4iUCF10199301-199410

*10-1.25PX95-50

sub91612-61045

main91619-61250×6iUCF10198905-199410

*12-1.25PX50-30

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×4iUCF10198905-199410

*10-1.5PX35-30

main90119-12036×2iUCF10198905-199208

*12-1.25PX80-30

main90119-12255iUCF10199208-199410

*12-1.75PX45-30

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iUCF10198905-199410

35159GASKET, BRAKE DRUM

main35159-30010iUCF10198905-199410

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iUCF10198905-199410

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iUCF10198905-199305

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-24020iUCF10199310-199410

9161161014

main91611-61014

18 parts on this diagram · 1 diagram in section
