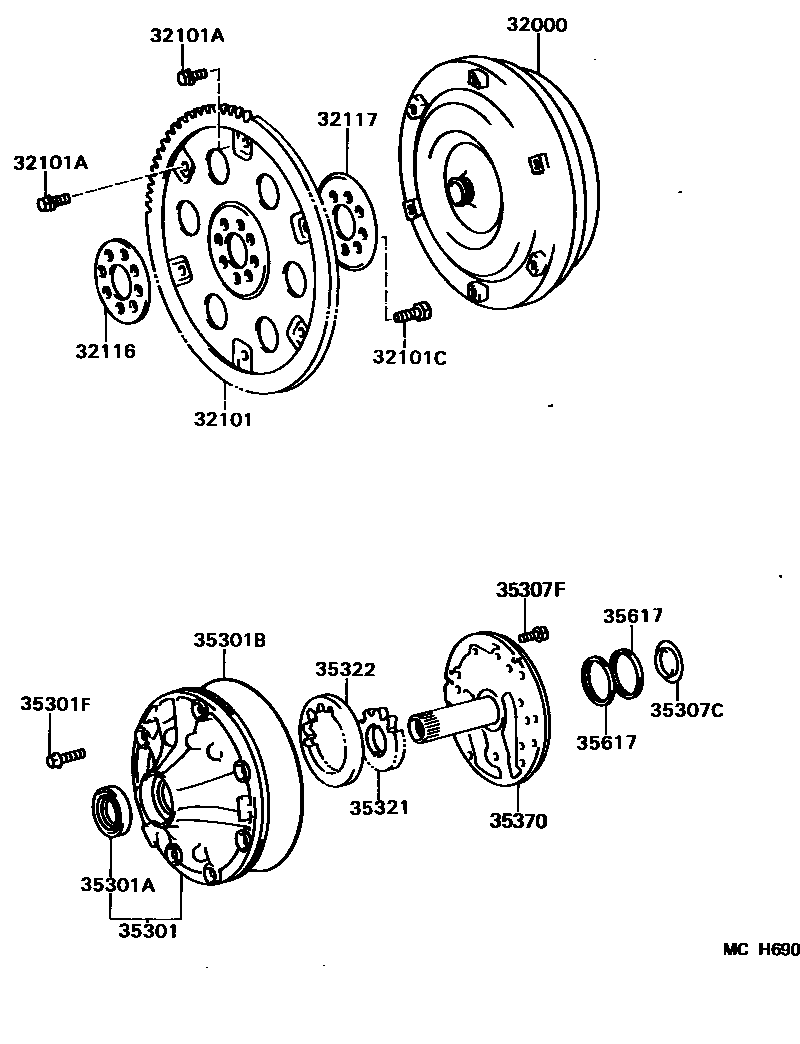

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-50010iUCF10198905-199410

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-50010iUCF10198905-199410

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009iUCF10198905-199410

*9-1.25PX12.8-8.8,YELLOW

main90119-09010iUCF10198905-199301

*9-1.25PX12.8-9,OLIVE GREEN

main90119-09017iUCF10199301-199410

*9-1.25PX12.8-7.7

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10226iUCF10198905-199410

32116SPACER, DRIVE PLATE, FRONT

main32116-50010iUCF10198905-199410

32117SPACER, DRIVE PLATE, REAR

main32117-50010iUCF10198905-199410

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-35010iUCF10198905-199410

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38029iUCF10198905-199410

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iUCF10198905-199410

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iUCF10198905-199410

*8-1.25PX35-35

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iUCF10198905-199410

T=3.7

sub35789-30340

35307FBOLT (FOR STATOR SHAFT)

main90105-06126iUCF10198905-199410

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iUCF10198905-199410

T=10.690-10.699

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iUCF10198905-199410

T=10.690-10.699

35370SHAFT ASSY, STATOR

main35370-50010iUCF10198905-199410

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iUCF10198905-199410

16 parts on this diagram · 1 diagram in section
