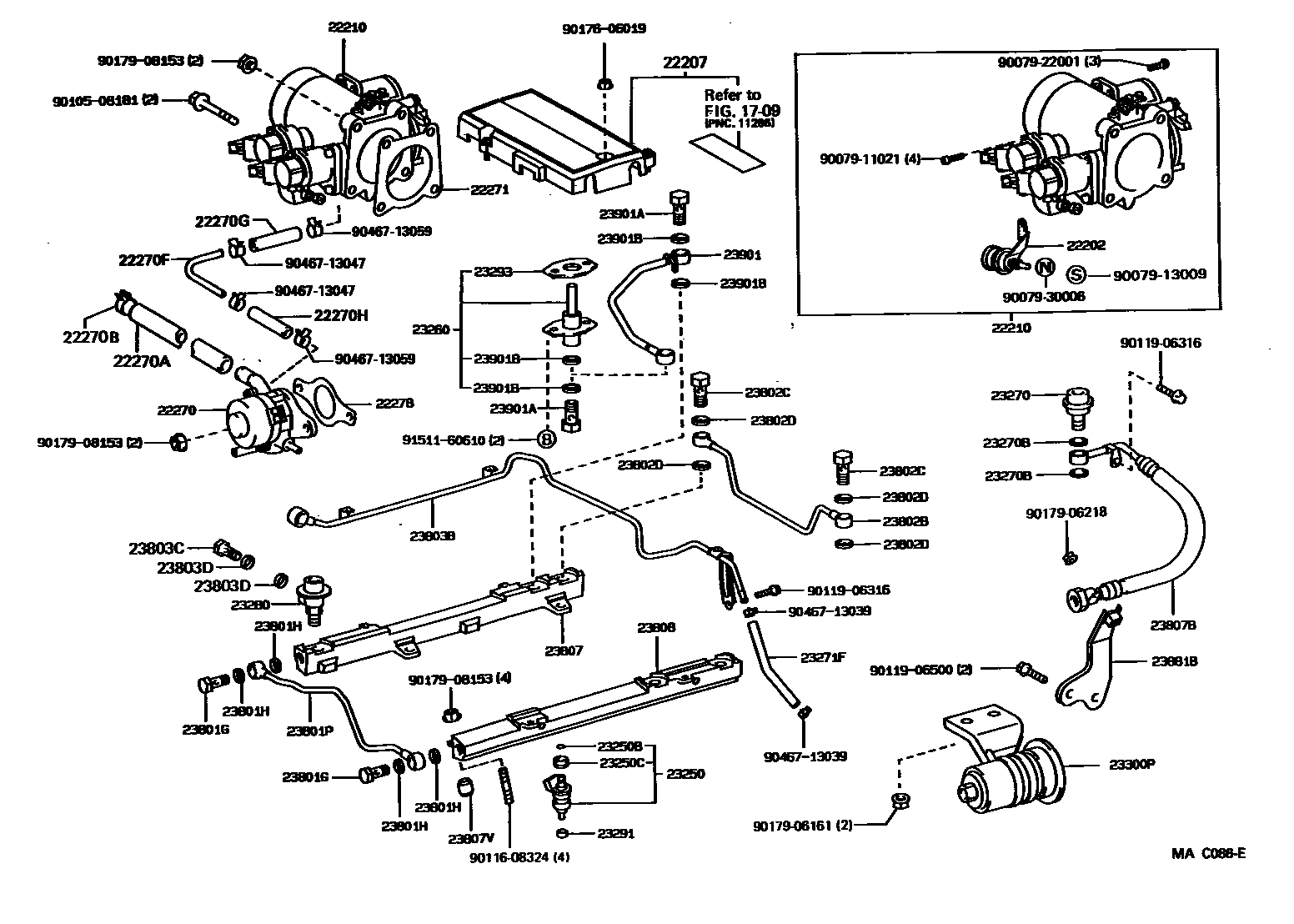

FUEL INJECTION SYSTEM
1709
22202DASH POT SUB-ASSY
22207COVER SUB-ASSY, THROTTLE BODY
W(TRACTION CONTROL)
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270FPIPE, WATER, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270GHOSE, WATER, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270HHOSE, WATER, NO.2(FOR IDLE SPEED CONTROL VALVE)
22271GASKET, THROTTLE BODY
22278GASKET, IDLE SPEED CONTROL VALVE
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
sub23260-59045
23270DAMPER ASSY, FUEL PRESSURE PULSATION
sub23270-50011
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
DELIVERRY PIPE SIDE
DELIVERRY PIPE SIDE
DELIVERY PIPE SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807BHOSE, FUEL DELIVERY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
sub23808-50011
23881BBRACKET, FUEL HOSE
23901TUBE SUB-ASSY, FUEL
23901ABOLT, UNION(FOR FUEL TUBE)
23901BGASKET(FOR FUEL TUBE)
9007911021
main90079-11021
9007913009
main90079-13009
9007922001
main90079-22001
9007930006
main90079-30006
9010508181
main90105-08181
9011608324
main90116-08324
9011906316
main90119-06316
9011906500
main90119-06500
9017606019
main90176-06019
9017906161
main90179-06161
9017906218
main90179-06218
9017908153
main90179-08153
9046713039
main90467-13039
9046713047
main90467-13047
9046713059
main90467-13059
9151160610
main91511-60610
56 parts on this diagram · 3 diagrams in section
