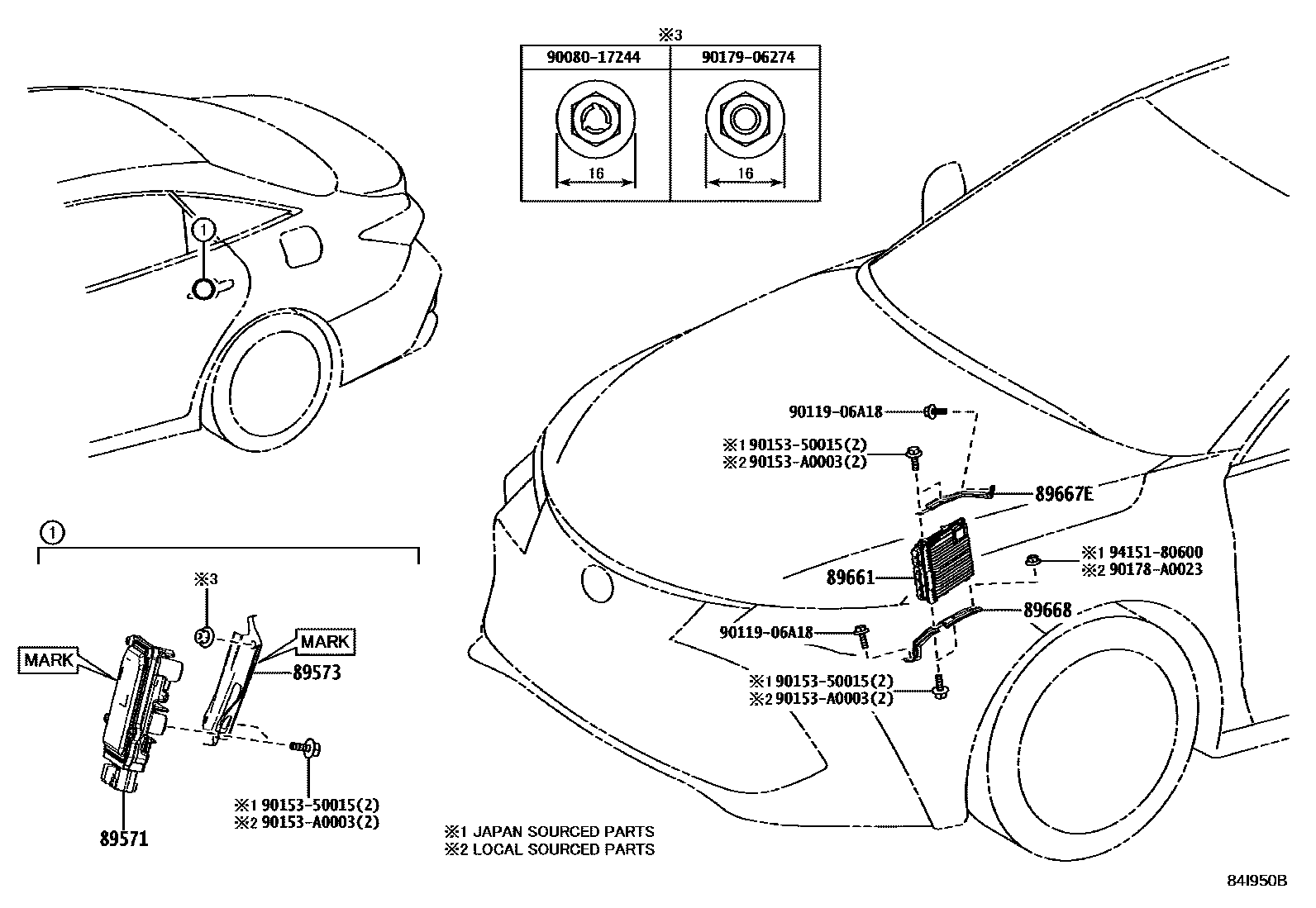

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89571COMPUTER, FUEL PUMP CONTROL

main89571-06010iAXXH50201805-202004

(L),MARK 89571-06010

main89571-06020iGSX50201908-202004

(L),MARK 89571-06020

main89571-06020iGSX50201804-201908

(L)

main89571-08010iGSX50..XSE202008-202107

(L)

main89571-08010iGSX50202004-202008

(L),MARK 89571-08010

main89571-0R010iAXXH51202008-202107

(L)

main89571-0R010iAXXH50202004-202008

(L),MARK 89571-0R010

main89571-33030iAXXH50201805-202004

(J),MARK 89571-33030

main89571-42010iAXXH51202004-202008

(J),MARK 89571-42010

main89571-42010iAXXA55202008-202107

(J)

main89571-58010iGSX50201804-201908

(J)

main89571-58010iGSX50201908-202004

(J),MARK 89571-58010

main89571-58020iGSX50..LIMD,TOU,XLE202004-202107

(J),MARK 89571-58020

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-33040iAXXH50,GSX50201804-202004

MARK K

main89573-33070iAXXH50,GSX50202004-202107

MARK C

89661COMPUTER, ENGINE CONTROL

main89661-06U30iAXXH51202108

DENSO

sub89661-06U31

main89661-07650iAXXH50201805-201908

DENSO

sub89661-07651

main89661-07661iGSX50201804-201805

DENSO

sub89661-07662

main89661-07662iGSX50201806-201809

DENSO

sub89661-07663

main89661-07663iGSX50201809-201908

DENSO

sub89661-07664

main89661-07750iAXXH50201908-202008

DENSO

sub89661-07751

main89661-07760iGSX50201908-201910

DENSO

sub89661-07761

main89661-07761iGSX50201911-202008

DENSO

main89661-07780iAXXH51202008-202108

DENSO

main89661-07790iGSX50..XSE202008-202108

DENSO

main89661-07810iAXXA55202008-202107

DENSO

main89661-07830iGSX50..LIMD,TOU,XLE202108

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06240iAXXA55202008-202103

(L)

sub89667-33190

main89667-06250iAXXH50201911-202106

(L)

sub89667-33200

main89667-06250iAXXH50201805-201911

sub89667-33200

main89667-06260iGSX50201804-202001

sub89667-33210

main89667-06260iGSX50202001-202103

(L)

sub89667-33210

main89667-33190iAXXA55202103-202107

(L)

main89667-33190iAXXA55202008-202107

(J)

main89667-33200iAXXH50201911-202008

(J)

main89667-33200iAXXH51202106

(L)

main89667-33210iGSX50..LIMD,TOU,XLE202001-202107

(J)

main89667-33210iGSX50..LIMD,TOU,XLE202103-202107

(L)

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06240iAXXA55202008-202103

(L)

sub89668-33240

main89668-06250iAXXH50201805-201911

sub89668-33250

main89668-06250iAXXH50201911-202106

(L)

sub89668-33250

main89668-06260iGSX50201804-201911

sub89668-33260

main89668-06260iGSX50201911-202103

(L)

sub89668-33260

main89668-33240iAXXA55202103-202107

(L)

main89668-33240iAXXA55202008-202107

(J)

main89668-33250iAXXH50201911-202008

(J)

main89668-33250iAXXH51202106

(L)

main89668-33260iGSX50..XSE202103-202107

(L)

main89668-33260iGSX50201911-202107

(J)

9008017244

main90080-17244

9011906A18

main90119-06A18

9015350015

main90153-50015

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9017906274

main90179-06274

9415180600

main94151-80600

12 parts on this diagram · 3 diagrams in section
