SWITCH & RELAY & COMPUTER

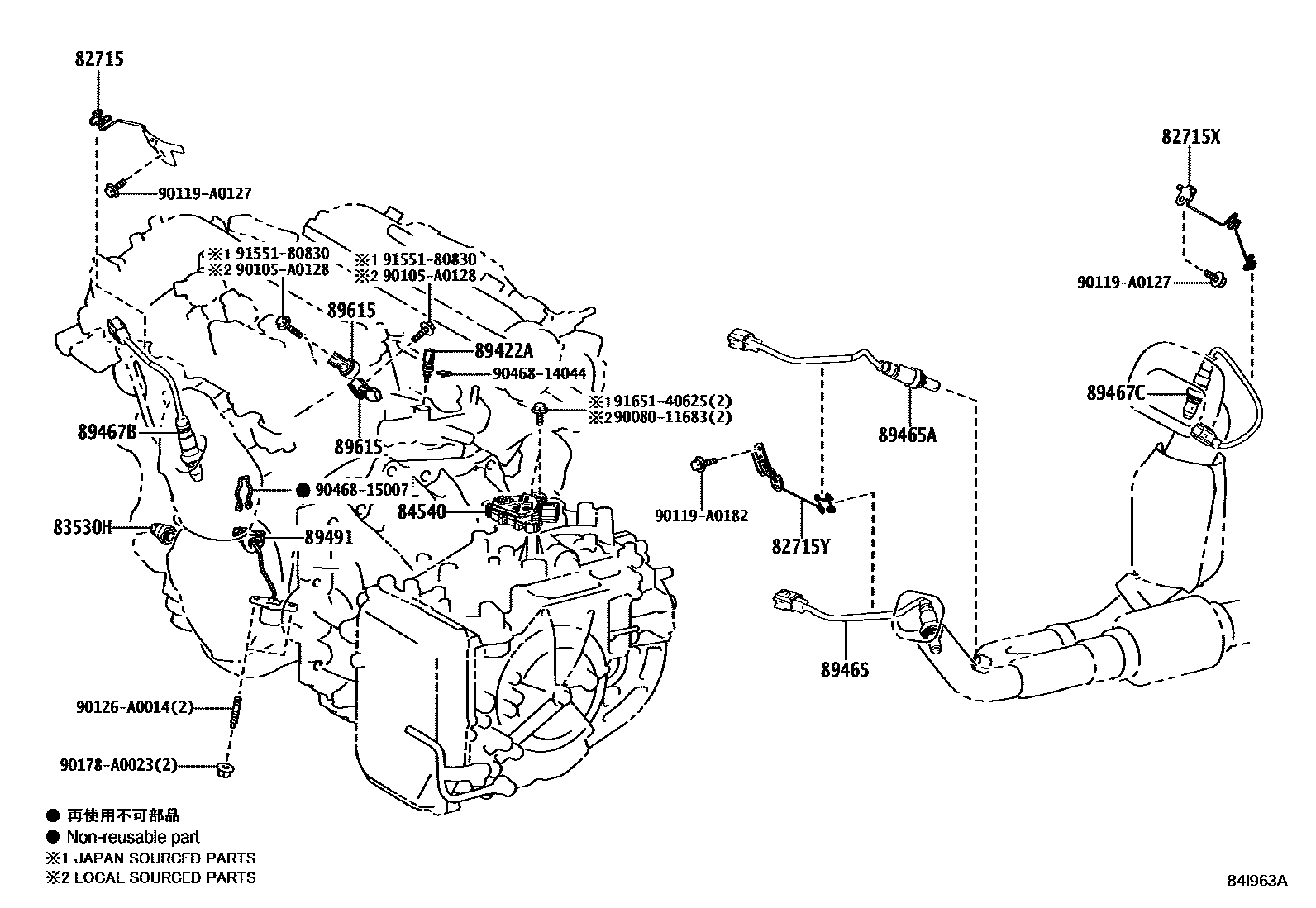

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1SEAT 0011 1DOOR, FLOOR & LUGGAGE 0012 1DOOR, FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-33J90iGSX50..LIMD,TOU,XLE201804-202107

main82715-33K11iAXXH50201805-202107

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-06P50iAXXH51201805-202008

main82715-33T50iGSX50201804-202107

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-33K00iGSX50201804-202107

83530HSWITCH ASSY, OIL PRESSURE

main83530-0E010iGSX50..XSE201804-202107

(L),DENSO

main83530-28020iGSX50..XSE201804-202107

(J),DENSO

main83530-60020iGSX50201804-202107

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-06020iAXXA55,GSX50201804-202111

(L)

sub84540-06021

sub35572-48051

main84540-06020iGSX50..XSE202008-202107

sub84540-06021

sub35572-48051

main84540-06021iGSX50..LIMD,TOU,XLE202111

(L)

main84540-33020iAXXA55,GSX50201804-202202

(J)

sub84540-33021

sub35572-48051

main84540-33021iGSX50..LIMD,TOU,XLE202202

(J)

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXXH51201805-202108

main89422-47010iGSX50..LIMD,TOU,XLE201804-202108

89465SENSOR, OXYGEN

main89465-06370iGSX50201804-202107

89465ASENSOR, OXYGEN NO.2

main89465-06380iGSX50201804-202107

89467BSENSOR, AIR FUEL RATIO

main89467-06230iGSX50..LIMD,TOU,XLE201804-202107

LH BANK

main89467-06250iAXXA55202008-202107

main89467-06250iAXXH51201805-202111

FR

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06210iAXXA55202008-202107

main89467-06280iAXXH51202008

RR

main89467-0E250iGSX50..LIMD,TOU,XLE201804-202111

RH BANK

main89467-33210iAXXH50201805-202008

RR

89491SENSOR, ENGINE OIL LEVEL

main89491-33050iAXXH50201805-201806

sub89491-33051

main89491-33051iAXXH51201806-202204

sub89491-33052

main89491-33052iAXXH51202205

main89491-48020iGSX50201804-201808

sub89491-48021

main89491-48021iGSX50201809-202001

sub89491-48040

main89491-48040iGSX50202002-202204

sub89491-48041

main89491-48041iGSX50..LIMD,TOU,XLE202205

89615SENSOR, KNOCK CONTROL

main89615-06010iAXXH50201804-202107

(L)

main89615-06010iAXXH51202008

MARK 89615-06010

main89615-20090iAXXA55201804-202107

(J)

main89615-20090iGSX50..LIMD,TOU,XLE202008

MARK 89615-20090

main89615-78010iAXXH51202209

MARK 89615-78010

main89615-F6010iAXXH51202209

MARK 89615-F6010

9008011683

main90080-11683

90105A0128

main90105-A0128

90119A0127

main90119-A0127

90119A0182

main90119-A0182

90126A0014

main90126-A0014

90178A0023

main90178-A0023

9046814044

main90468-14044

9046815007

main90468-15007

9155180830

main91551-80830

9165140625

main91651-40625

22 parts on this diagram · 12 diagrams in section
