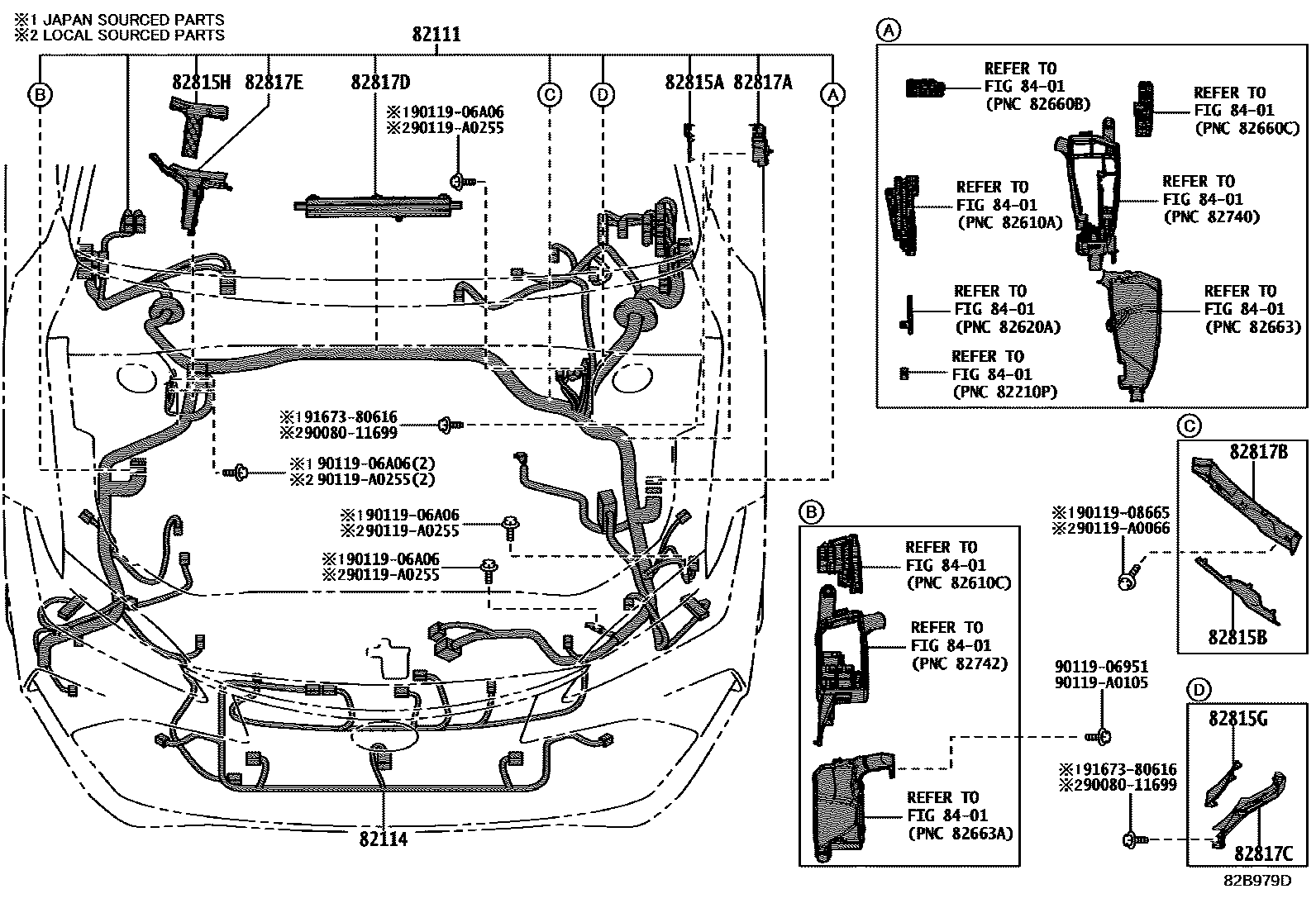

82111WIRE, ENGINE ROOM MAIN

main82111-07B70iAXXH50..XLE,XSE201908-202008

main82111-07B71iAXXH51..XLE,XSE202008-202108

main82111-07B72iAXXH51..XLE,XSE202108

main82111-07B80iAXXA55..XLE202008-202107

main82111-07C00iAXXA55..LIMD202008-202107

main82111-07F10iGSX50..XLE201804-201908

main82111-07F11iGSX50..XLE201908-202008

main82111-07F12iGSX50..XLE202008-202108

main82111-07F13iGSX50..XLE202108

main82111-07F20iGSX50..XSE201804-201908

main82111-07F21iGSX50..XSE201908-202008

main82111-07F22iGSX50..XSE202008-202107

main82111-07F70iGSX50..LIMD201804-201908

main82111-07F71iGSX50..LIMD201908-202008

main82111-07F72iGSX50..LIMD202008-202108

main82111-07F73iGSX50..LIMD202108

main82111-07F80iGSX50..TOU201804-201908

main82111-07F81iGSX50..TOU201908-202008

main82111-07F82iGSX50..TOU202008-202108

main82111-07F83iGSX50..TOU202108

main82111-07G60iAXXH50..XLE,XSE201805-201908

main82111-07G90iAXXH50..LIMD201805-201908

main82111-07G91iAXXH50..LIMD201908-202008

main82111-07G92iAXXH51..LIMD202008-202108

main82111-07G93iAXXH51..LIMD202108

82114WIRE, ENGINE ROOM, NO.4

main82114-07010

main82114-07030

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-33E00iGSX50201804-202107

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-33E10iAXXA55;GSX50..XSE201804-202107

main82815-33E30iAXXH50201805-202008

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-33E20iGSX50..LIMD,TOU,XLE201804-202107

main82815-33E70iAXXH50201805-202008

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-33K50iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-33N30iGSX50201804-202107

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-33N40iAXXA55;GSX50..XSE201804-202107

main82817-33U80iAXXH50201805-202008

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-33N60iGSX50201804-202107

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-33Y20iAXXH50,GSX50201804-202107

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-33Y30iAXXA55;GSX50..XSE201804-202107

8401

9008011699

main90080-11699

9011906951

main90119-06951

9011906A06

main90119-06A06

9011908665

main90119-08665

90119A0066

main90119-A0066

90119A0105

main90119-A0105

90119A0255

main90119-A0255

9167380616

main91673-80616

20 parts on this diagram · 21 diagrams in section
