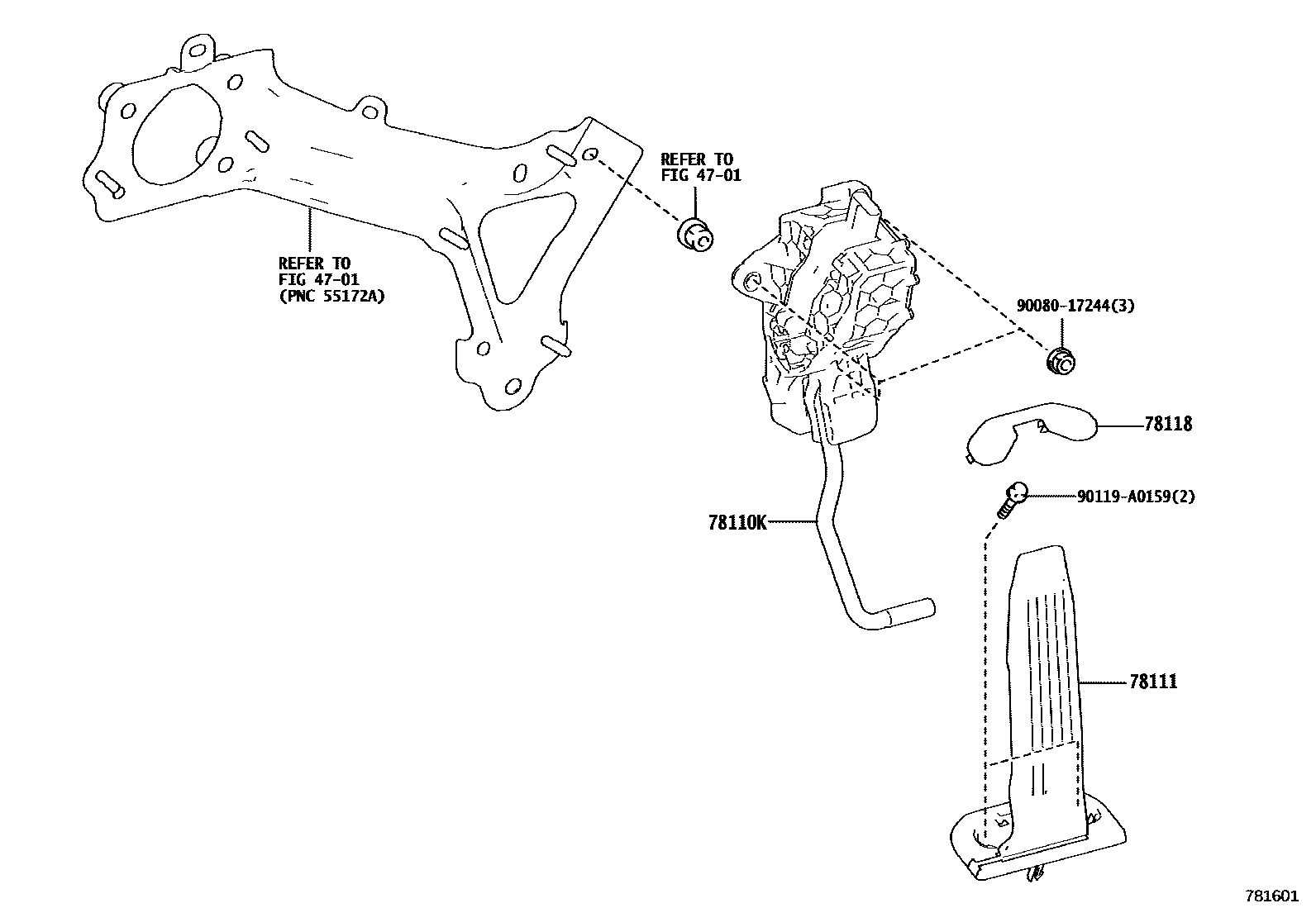

ACCELERATOR LINK

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06060iAXXA55,AXXH51,GSX50201804-202012

sub78110-06061

main78110-06061iAXXA55;GSX50..XSE202101-202107

78111PEDAL, ACCELERATOR

main78101-06010iAXXH50,GSX50..LIMD,XLE201804-202205

sub78101-06011

main78101-06011iAXXH51,GSX50..LIMD,XLE202206

main78101-33080iGSX50..XSE201804-202107

78118PAD, ACCELERATOR PEDAL

main78117-06010iAXXH50,GSX50201804-202107

9008017244

main90080-17244

90119A0159

main90119-A0159

6 parts on this diagram · 1 diagram in section
