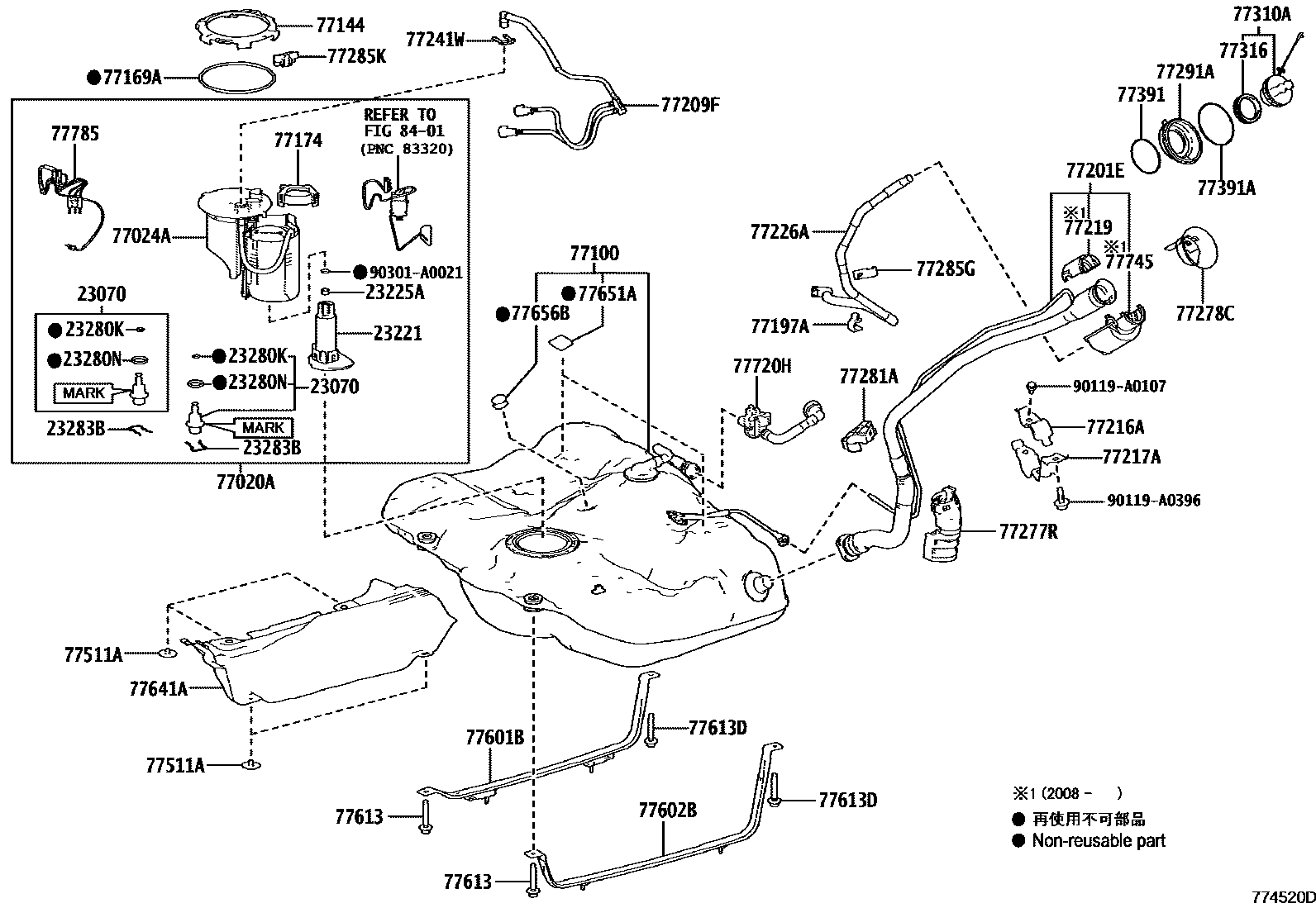

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
MARK 23070-25020
MARK 23070-31030
MARK 23070-36010
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283BHOLDER, FUEL PRESSURE REGULATOR
77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77100TANK ASSY, FUEL
(L)
(J)
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77219COVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77285GCLAMP, FUEL TUBE, NO.1
77285KCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
77613DBOLT, FUEL TANK BAND SET, NO.2
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
(L)
(L)
(J)
(J)
77656BCUSHION, FUEL TANK, NO.6
(L)
(J)
77720HVALVE ASSY, FUEL OUTLET
77745FILTER, CHARCOAL CANISTER, NO.1
77785HARNESS, FUEL PUMP
8401
90119A0107
main90119-A0107
90119A0396
main90119-A0396
90301A0021
main90301-A0021
48 parts on this diagram · 8 diagrams in section
