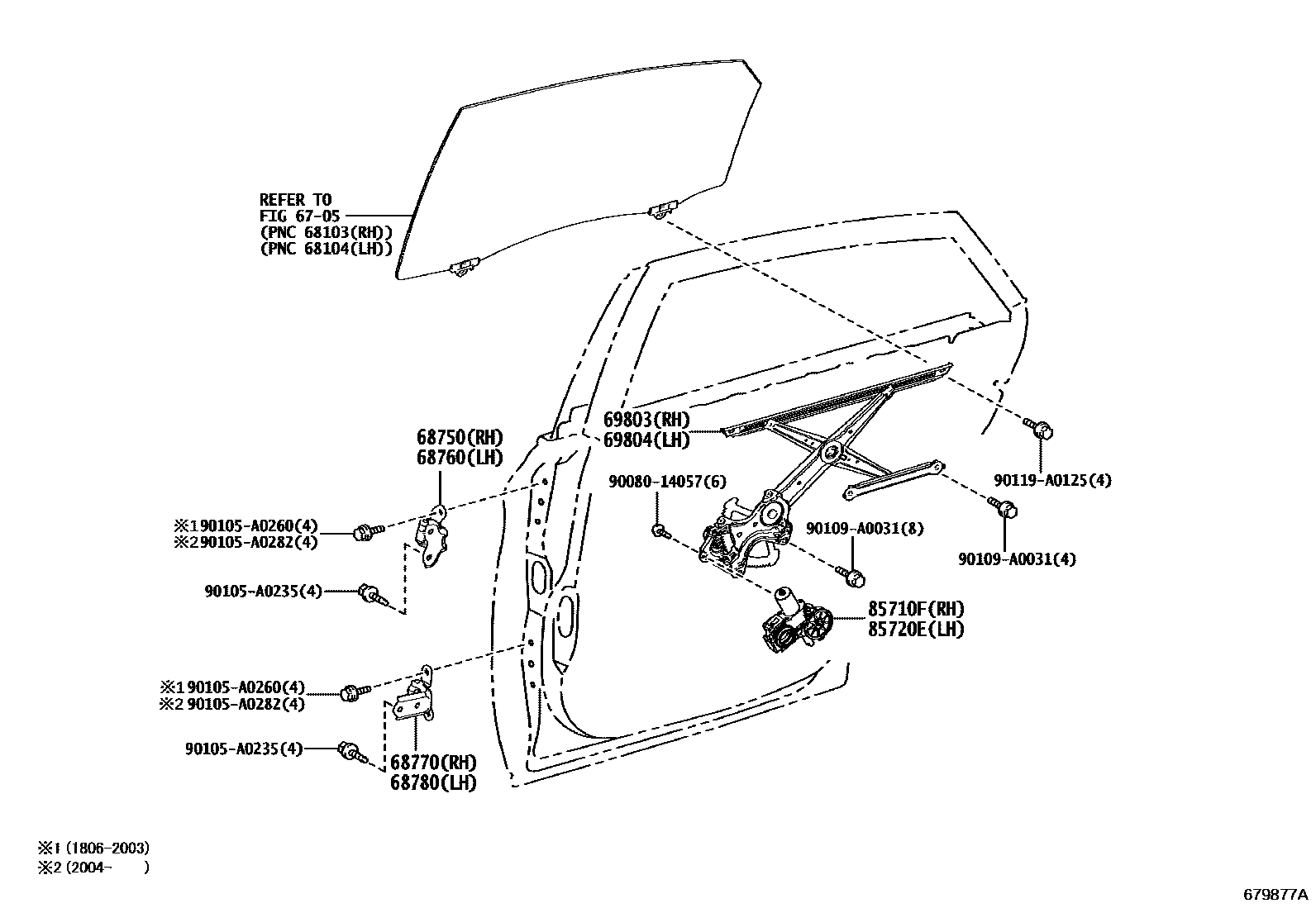

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iAXXH50,GSX50201804-202107

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iAXXH50,GSX50201804-202107

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-06050iAXXH50,GSX50201804-202107

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-06050iAXXH50,GSX50201804-202107

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-07050iAXXH50,GSX50201804-202107

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-07040iAXXH50,GSX50201804-202107

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-07100iAXXH50,GSX50201804-202008

sub85710-33360

main85710-07101iAXXA55;GSX50..XSE202008-202107

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-07080iAXXH50,GSX50201804-202008

sub85720-33360

main85720-07081iAXXA55;GSX50..XSE202008-202107

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90105A0282

main90105-A0282

90109A0031

main90109-A0031

90119A0125

main90119-A0125

15 parts on this diagram · 1 diagram in section
