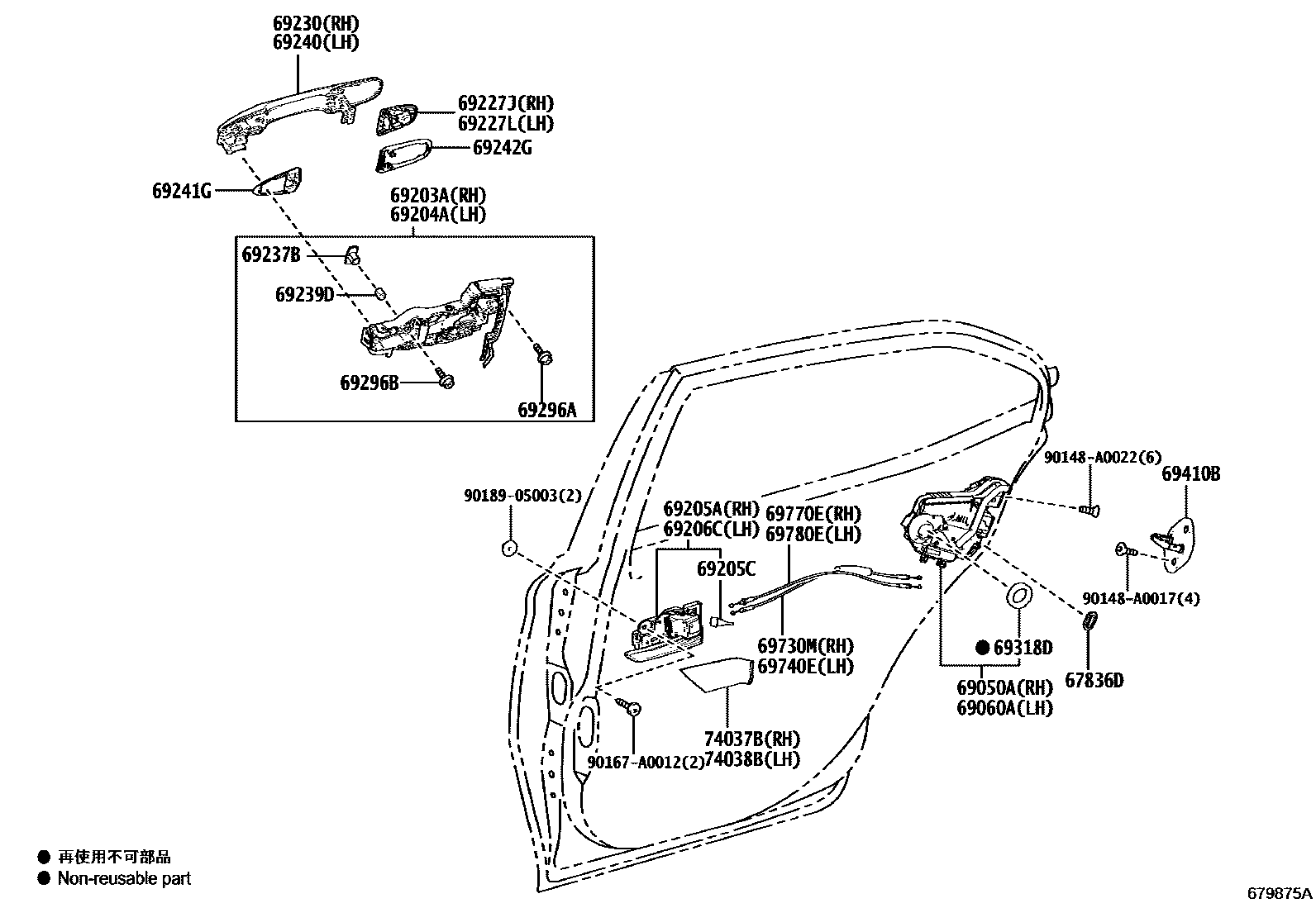

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-12040iAXXH50,GSX50201804-201901

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-07050iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-07050iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-07020iAXXH50,GSX50201804-202107

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-07020iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-06120-C0iAXXH50,GSX50..LIMD201804-202107

BLACK,TRIM1#,2#,4#

main69205-06120-C0iAXXH50,GSX50..LIMD201804-202008

BLACK,TRIM1#,4#

main69205-06120-C0iAXXH50,GSX50..LIMD201804-202008

BLACK,TRIM1#,2#

main69205-06120-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90080-54005iAXXH50,GSX50201804-202107

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-06160-C0iAXXH50,GSX50..LIMD201804-202008

BLACK,TRIM1#,4#

main69206-06160-C0iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main69206-06160-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

main69206-06160-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-06100iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-06100iAXXH50,GSX50201804-202107

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-06110-A1iGSX50..XSE202008-202107

PLATINUM WHITE PEARL MC.,089 ,2PS

main69211-06110-A1iGSX50..XSE201804-202107

PLATINUM WHITE PEARL MC.,089

main69211-06110-B1iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

SILVER ME.,1J9

main69211-06110-B4iAXXA55;GSX50..XSE201804-202107

SLATE GRAY ME.,1K4

main69211-06110-C0iAXXA55;GSX50..XSE201804-202107

ATTITUDE BLACK MC.,218

main69211-06110-C5iGSX50..XSE202008-202107

BLACK,089 ,1J9

main69211-06110-D0iAXXH50,GSX50201804-202107

RED MC.,3T3

main69211-06110-D4iAXXH51;GSX50..LIMD,TOU,XLE201908-202107

EMOTIONAL RED 2,3U5

main69211-06110-E0iAXXH50,GSX50201804-202008

GRAPHITE ME.,4X7

main69211-06110-E1iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

BLACKISH BROWN MC.,4X9

main69211-06110-J2iAXXH51;GSX50..LIMD,TOU,XLE202008-202107

DK. BLUE MC.,8X8

main69211-06110-J3iAXXH50,GSX50201804-202008

DK.BLUE M.M.,8W6

main69211-06110-P1iAXXH51;GSX50..LIMD,TOU,XLE202008-202107

ASH GRAY ME.,1K6

main69211-06110-P1iGSX50..XSE202008-202107

ASH GRAY ME.,1K6 ,2K6 ,2UZ

69237BNUT, REAR DOOR HANDLE

main69237-06030iAXXH50,GSX50201804-202107

69239DBUSH, REAR DOOR HANDLE

main69239-06030iAXXH50,GSX50201804-202107

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-06110-A1iAXXH50,GSX50201804-202107

PLATINUM WHITE PEARL MC.,089

main69211-06110-A1iAXXA55202008-202107

PLATINUM WHITE PEARL MC.,089 ,2PS

main69211-06110-B1iAXXH50,GSX50201804-202107

SILVER ME.,1J9

main69211-06110-B4iAXXH50,GSX50201804-202107

SLATE GRAY ME.,1K4

main69211-06110-C0iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

ATTITUDE BLACK MC.,218

main69211-06110-C5iGSX50..XSE202008-202107

BLACK,089 ,1J9

main69211-06110-D0iAXXA55;GSX50..XSE201804-202107

RED MC.,3T3

main69211-06110-D4iAXXA55;GSX50..XSE201908-202107

EMOTIONAL RED 2,3U5

main69211-06110-E0iAXXH50,GSX50201804-202008

GRAPHITE ME.,4X7

main69211-06110-E1iAXXA55;GSX50..XSE201804-202107

BLACKISH BROWN MC.,4X9

main69211-06110-J2iAXXH51;GSX50..LIMD,TOU,XLE202008-202107

DK. BLUE MC.,8X8

main69211-06110-J3iAXXH50,GSX50201804-202008

DK.BLUE M.M.,8W6

main69211-06110-P1iGSX50..XSE202008-202107

ASH GRAY ME.,1K6

main69211-06110-P1iGSX50..XSE202008-202107

ASH GRAY ME.,1K6 ,2K6 ,2UZ

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-06080iAXXA55;GSX50..XSE201804-202107

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-06080iAXXH50,GSX50201804-202007

main69242-06170iAXXA55;GSX50..XSE202008-202107

69296ASCREW, DOOR INSIDE HANDLE

main69296-02020iAXXH50,GSX50201804-202107

69296BSCREW, DOOR INSIDE HANDLE

main69296-06070iAXXH50,GSX50201804-202107

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-04010iAXXH50,GSX50201804-202107

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02020iAXXH50,GSX50201804-202107

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-07020iAXXH50,GSX50201804-202107

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-07020iAXXH50,GSX50201804-202107

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-07030iAXXH50,GSX50201804-202107

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-07030iAXXH50,GSX50201804-202107

74037BCOVER SUB-ASSY, REAR DOOR ARMREST, RH

main74037-07010-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

main74037-07010-C0iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main74037-07010-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

main74037-07010-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

74038BCOVER SUB-ASSY, REAR DOOR ARMREST, LH

main74038-07010-C0iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main74038-07010-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

main74038-07010-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

main74038-07010-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0012

main90167-A0012

9018905003

main90189-05003

30 parts on this diagram · 1 diagram in section
