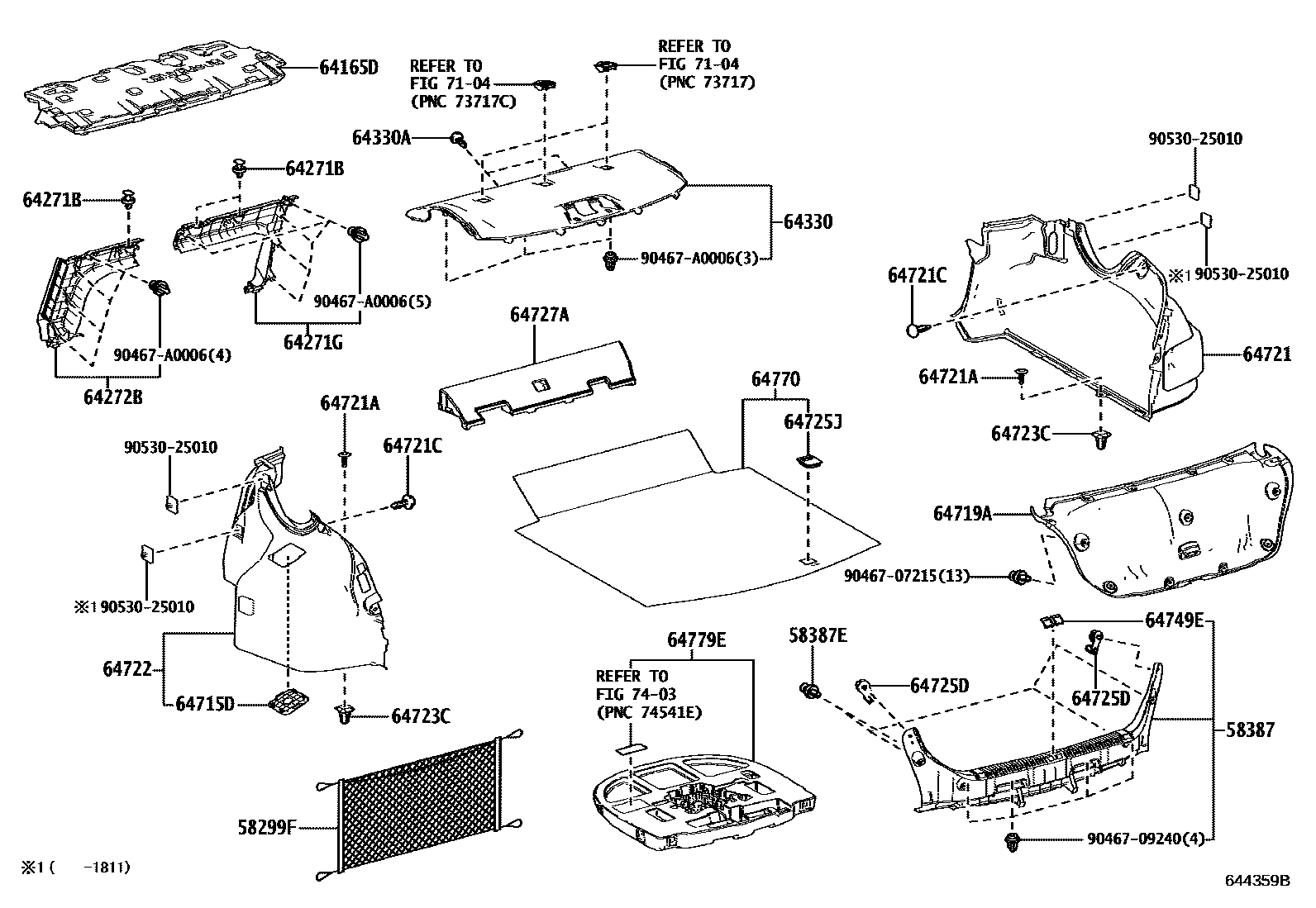

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58299FNET, BAGGAGE HOLDER

main58299-AA010iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

58387PLATE, REAR FLOOR FINISH

main58387-07020-C0iAXXH50,GSX50..TOU,XSE201804-202008

BLACK,TRIM1#,2#

main58387-07020-C0iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main58387-07020-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

main58387-07020-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-07215iAXXH50,GSX50201804-202107

64165DCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-07040iGSX50..XSE;AXXA55..XLE201804-202107

main64165-07050iGSX50..XLE;AXXH51..XLE,XSE202008

AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA

main64165-07050iAXXH51..XLE202008-202107

AUDIO-9INCH DISPLAY & 14SPEAKER

main64165-07050iAXXH50,GSX50..LIMD,TOU201804-202008

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-A0002-C0iAXXA55;GSX50..XSE202008-202107

BLACK

sub90467-A0002

main90467-A0002-C4iAXXH50,GSX50201804-202008

BLACK

sub90467-A0002

64271GBOARD, ROOM PARTITION, RH

main64271-06090-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

main64271-06090-C0iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main64271-06090-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

main64271-06090-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

64272BBOARD, ROOM PARTITION, LH

main64272-06050-C0iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main64272-06050-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

main64272-06050-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

main64272-06050-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-07090-C0iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main64330-07090-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

main64330-07090-C0iAXXH51,GSX50..XLE202008-202107

BLACK,TRIM2#,4#

main64330-07100-C1iAXXH50,GSX50..LIMD201804-202008

BLACK,TRIM1#,2#

main64330-07100-C1iAXXH50,GSX50..LIMD201804-202008

BLACK,TRIM1#,4#

main64330-07100-C1iAXXA55..LIMD202008-202107

BLACK,TRIM1#,2#,4#

main64330-07100-C1iAXXA55..LIMD202008-202107

AUDIO-9INCH DISPLAY & 14SPEAKER,BLACK,TRIM2#,4#

main64330-07100-C1iAXXA55..LIMD202008-202107

AUDIO-9INCH DISPLAY & 14SPEAKER,BLACK,TRIM1#,2#,4#

main64330-07100-C1iGSX50..TOU202008

BLACK,TRIM2#,4#

main64330-07100-C1iGSX50..TOU202008

AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA,BLACK,TRIM1#,2#,4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05164-C7iAXXH50,GSX50..TOU,XSE201804-202008

BLACK,TRIM1#,2#

sub90467-05164

main90467-05164-C7iGSX50..TOU;AXXH51..XSE202008-202107

BLACK,TRIM2#,4#

sub90467-05164

main90467-05164-C7iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

sub90467-05164

main90467-05164-C7iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

sub90467-05164

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-06010-C0iAXXH50..LIMD201805-202008

BLACK,TRIM1#,4#

main64715-06010-C0iAXXH50..LIMD201805-202008

BLACK,TRIM1#,2#,4#

main64715-06010-C0iAXXH50..LIMD201805-202008

BLACK,TRIM1#,2#

main64715-06010-C0iAXXH51..XSE202008

BLACK,TRIM2#,4#

main64715-06060-C0iGSX50..TOU202008-202107

BLACK,TRIM2#,4#

main64715-06060-C0iGSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main64715-06060-C0iGSX50..XLE201804-202008

BLACK,TRIM1#,4#

main64715-06060-C0iGSX50..XLE201804-202008

BLACK,TRIM1#,2#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-07020-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

main64719-07020-C0iAXXH50,GSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main64719-07020-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

main64719-07020-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-07030-C0iGSX50..TOU,XSE201804-202008

BLACK,TRIM1#,2#

main64721-07030-C0iGSX50..TOU,XSE201804-202008

BLACK,TRIM1#,4#

main64721-07030-C0iGSX50..TOU,XSE201804-202107

BLACK,TRIM1#,2#,4#

main64721-07030-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

main64721-07040-C0iAXXH50..LIMD201805-202008

BLACK,TRIM1#,2#

main64721-07040-C0iAXXH50..LIMD201805-202008

BLACK,TRIM1#,2#,4#

main64721-07040-C0iAXXH50..XLE201805-202008

BLACK,TRIM1#,4#

main64721-07040-C0iAXXH51..XSE202008

BLACK,TRIM2#,4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main64726-26010-C2iAXXH51,GSX50..LIMD,XLE202008-202107

BLACK,TRIM2#,4#

main64726-26010-C2iGSX50..TOU;AXXH51..XSE202008-202107

BLACK,TRIM1#,2#,4#

main90467-08222-C1iAXXH50,GSX50..XLE201804-202006

BLACK,TRIM1#,2#,4#

main90467-08222-C1iAXXH50,GSX50..XLE201804-202006

BLACK,TRIM1#,4#

main90467-08222-C1iAXXH50,GSX50..XLE201804-202006

BLACK,TRIM1#,2#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-A0002-C0iGSX50..XSE202008-202107

BLACK,TRIM1#,2#,4#

sub90467-A0002

main90467-A0002-C0iAXXA55202008-202107

BLACK,TRIM2#,4#

sub90467-A0002

main90467-A0002-C4iAXXH50,GSX50..TOU,XSE201804-202008

BLACK,TRIM1#,2#

sub90467-A0002

main90467-A0002-C4iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#,4#

sub90467-A0002

main90467-A0002-C4iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

sub90467-A0002

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-07030-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

main64722-07030-C0iGSX50..XLE201804-202107

BLACK,TRIM1#,2#,4#

main64722-07030-C0iGSX50..XLE201804-202008

BLACK,TRIM1#,4#

main64722-07030-C0iGSX50..XLE201804-202008

BLACK,TRIM1#,2#

main64722-07040-C0iAXXH51..LIMD,XLE201805-202008

BLACK,TRIM1#,2#,4#

main64722-07040-C0iAXXH50..LIMD201805-202008

BLACK,TRIM1#,4#

main64722-07040-C0iAXXH50..LIMD201805-202008

BLACK,TRIM1#,2#

main64722-07040-C0iAXXH51..XSE202008

BLACK,TRIM2#,4#

64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER

main64779-26010iAXXA55;GSX50..XSE202006-202107

main90467-10023iAXXH50,GSX50201804-202006

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-0T010-C1iAXXH50,GSX50..LIMD201804-202107

BLACK,TRIM1#,2#,4#

main64725-0T010-C1iAXXH50,GSX50..LIMD201804-202008

BLACK,TRIM1#,4#

main64725-0T010-C1iAXXH50,GSX50..LIMD201804-202008

BLACK,TRIM1#,2#

main64725-0T010-C1iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-06090iAXXH50,GSX50201804-202107

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-06100iAXXH50,GSX50201804-202107

main64727-06170iAXXA55202008-202107

64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-07010-C0iGSX50..TOU;AXXH51..XSE201804-202107

BLACK,TRIM1#,2#,4#

main64749-07010-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

main64749-07010-C0iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

main64749-07010-C0iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

64770COVER ASSY, SPARE WHEEL

main64770-06340-C1iGSX50..TOU;AXXH51..XSE201804-202107

BLACK,TRIM1#,2#,4#

main64770-06340-C1iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,4#

main64770-06340-C1iAXXH50,GSX50..XLE201804-202008

BLACK,TRIM1#,2#

main64770-06340-C1iGSX50..XSE202008-202107

BLACK,TRIM2#,4#

64779ETRAY, SPARE WHEEL COVER

main64779-06170iAXXA55202008-202107

main64779-06210iAXXH50,GSX50201804-202107

7104

7403

9046707215

main90467-07215

9046709240

main90467-09240

90467A0006

main90467-A0006

9053025010

main90530-25010

28 parts on this diagram · 2 diagrams in section
