CONSOLE BOX & BRACKET

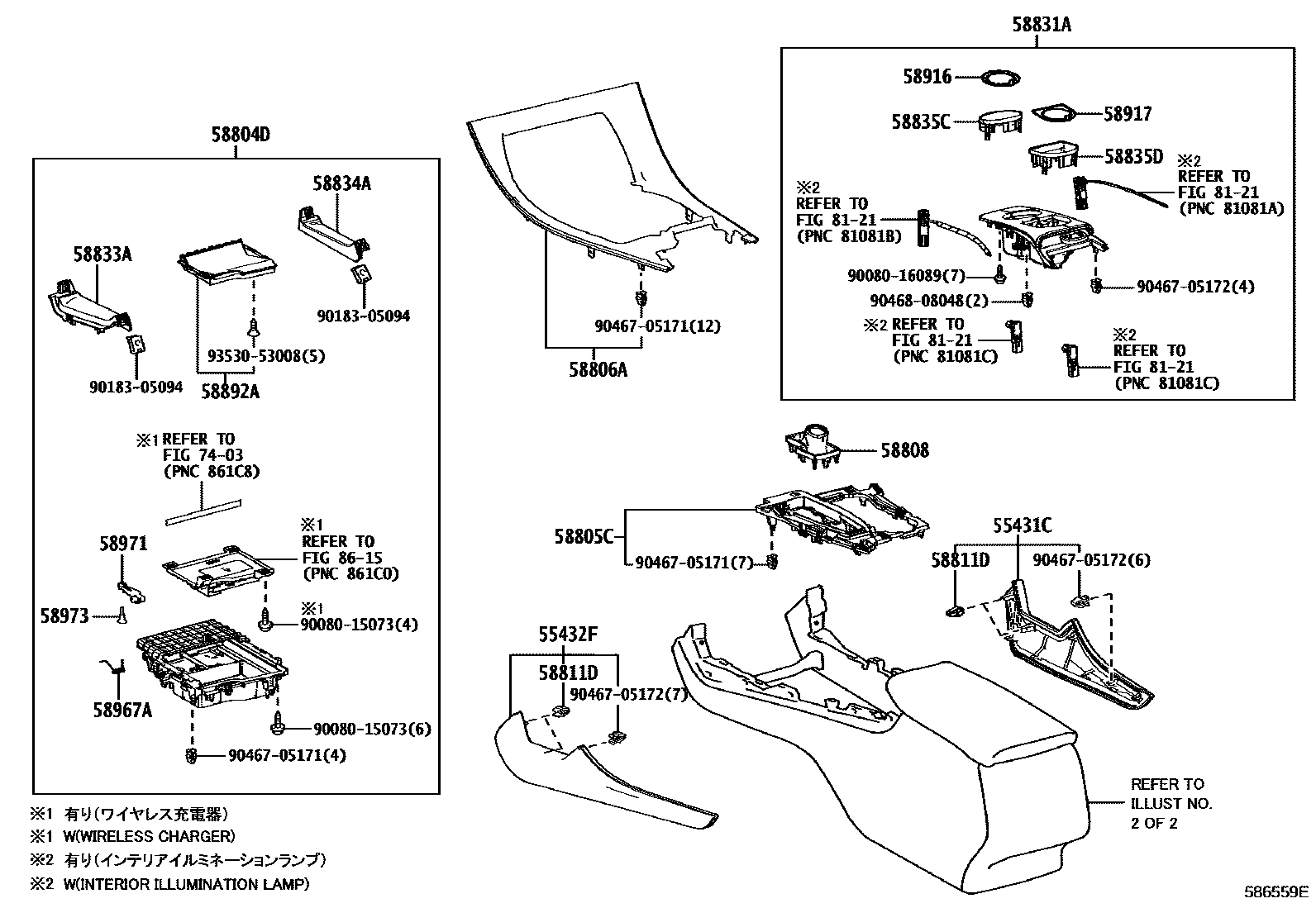

Parts diagram
55431CPANEL, INSTRUMENT PANEL FINISH, LOWER RH
main55431-07060-C0i201804-201908
BLACK,TRIM1#,4#
main55431-07060-C0i201804-201908
BLACK,TRIM1#,2#
main55431-07060-C0i201804-201908
BLACK,TRIM1#,2#,4#
main55431-07061-C0i201908-202008
BLACK,TRIM1#,2#,4#
sub55431-07062
main55431-07061-C0i201908-202008
BLACK,TRIM1#,4#
sub55431-07062
main55431-07061-C0i201908-202008
BLACK,TRIM1#,2#
sub55431-07062
main55431-07062-C0i202008-202107
BLACK,TRIM2#,4#
main55431-07062-C0i202008-202107
BLACK,TRIM1#,2#,4#
55432FPANEL, INSTRUMENT PANEL FINISH, LOWER LH
main55432-07080-C0i201804-201908
BLACK,TRIM1#,2#
main55432-07080-C0i201804-201908
BLACK,TRIM1#,2#,4#
main55432-07080-C0i201804-201908
BLACK,TRIM1#,4#
main55432-07081-C0i201908-202008
BLACK,TRIM1#,4#
sub55432-07082
main55432-07081-C0i201908-202008
BLACK,TRIM1#,2#
sub55432-07082
main55432-07081-C0i201908-202008
BLACK,TRIM1#,2#,4#
sub55432-07082
main55432-07082-C0i202008-202107
BLACK,TRIM1#,2#,4#
main55432-07082-C0i202008-202107
BLACK,TRIM2#,4#
58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT
main58804-07140-C0i201804-202001
BLACK,TRIM2#
sub58804-07141
main58804-07140-C1i201804-202001
GRAY,TRIM1#
sub58804-07141
main58804-07140-C2i201804-202001
BROWN,TRIM43
sub58804-07141
main58804-07140-C3i201804-202001
NEUTRAL BEIGE,TRIM40
sub58804-07141
main58804-07140-C3i201804-202001
NEUTRAL BEIGE,TRIM4#
sub58804-07141
main58804-07141-C0i202002-202107
BLACK,TRIM2#
main58804-07141-C1i202002-202107
GRAY,TRIM1#
main58804-07141-C2i202008-202107
BROWN,TRIM4#
main58804-07141-C2i202002-202008
BROWN,TRIM43
main58804-07141-C3i202002-202107
NEUTRAL BEIGE,TRIM4#
main58804-07141-C3i202002-202008
NEUTRAL BEIGE,TRIM40
main58804-07150-C0i201804-201806
WIRELESS CHARGER-WITH,BLACK,TRIM2#
sub58804-07151
main58804-07150-C1i201804-201806
WIRELESS CHARGER-WITH,GRAY,TRIM1#
sub58804-07151
main58804-07150-C2i201804-201806
WIRELESS CHARGER-WITH,BROWN,TRIM43
sub58804-07151
main58804-07150-C3i201804-201806
WIRELESS CHARGER-WITH,NEUTRAL BEIGE,TRIM4#
sub58804-07151
main58804-07150-C3i201804-201806
WIRELESS CHARGER-WITH,NEUTRAL BEIGE,TRIM40
sub58804-07151
main58804-07151-C0i201806-202001
WIRELESS CHARGER-WITH,BLACK,TRIM2#
sub58804-07152
main58804-07151-C1i201806-202001
WIRELESS CHARGER-WITH,GRAY,TRIM1#
sub58804-07152
main58804-07151-C2i201806-202001
WIRELESS CHARGER-WITH,BROWN,TRIM43
sub58804-07152
main58804-07151-C3i201806-202001
WIRELESS CHARGER-WITH,NEUTRAL BEIGE,TRIM4#
sub58804-07152
main58804-07151-C3i201806-202001
WIRELESS CHARGER-WITH,NEUTRAL BEIGE,TRIM40
sub58804-07152
main58804-07152-C0i202002-202008
WIRELESS CHARGER-WITH,BLACK,TRIM2#
sub58804-07170
main58804-07152-C1i202002-202008
WIRELESS CHARGER-WITH,GRAY,TRIM1#
sub58804-07170
main58804-07152-C2i202002-202008
WIRELESS CHARGER-WITH,BROWN,TRIM43
sub58804-07170
main58804-07152-C3i202002-202008
WIRELESS CHARGER-WITH,NEUTRAL BEIGE,TRIM40
sub58804-07170
main58804-07152-C3i202002-202008
WIRELESS CHARGER-WITH,NEUTRAL BEIGE,TRIM4#
sub58804-07170
main58804-07170-C0i202008-202107
WIRELESS CHARGER-WITH,BLACK,TRIM2#
main58804-07170-C1i202008-202107
WIRELESS CHARGER-WITH,GRAY,TRIM1#
main58804-07170-C2i202008-202107
WIRELESS CHARGER-WITH,BROWN,TRIM4#
main58804-07170-C3i202008-202107
WIRELESS CHARGER-WITH,NEUTRAL BEIGE,TRIM4#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-07140-B0i201804-202107
NEUTRAL WARM GRAY,TRIM1#
main58805-07140-B0i201804-202008
NEUTRAL WARM GRAY,TRIM1#,43
main58805-07140-B0i201804-202008
NEUTRAL WARM GRAY,TRIM10
main58805-07140-B0i202008-202107
NEUTRAL WARM GRAY,TRIM1#,4#
main58805-07140-C0i201804-202008
BLACK,TRIM10,2#
main58805-07140-C0i201804-202107
BLACK,TRIM2#,4#
main58805-07140-C0i201804-202008
BLACK,TRIM40
main58805-07140-C0i202008-202107
BLACK,TRIM2#
58806APOCKET SUB-ASSY, CONSOLE BOX
main58806-07020-B0i201804-202107
NEUTRAL WARM GRAY,TRIM1#
main58806-07020-B0i201804-202008
NEUTRAL WARM GRAY,TRIM1#,43
main58806-07020-B0i201804-202008
NEUTRAL WARM GRAY,TRIM10
main58806-07020-B0i202008-202107
NEUTRAL WARM GRAY,TRIM1#,4#
main58806-07020-C0i201804-202008
BLACK,TRIM40
main58806-07020-C0i201804-202008
BLACK,TRIM10,2#
main58806-07020-C0i201804-202107
BLACK,TRIM2#,4#
main58806-07020-C0i202008-202107
BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
main58280-07020-C0i201804-201908
BLACK,TRIM1#,2#,4#
main58280-07020-C0i201804-201908
BLACK,TRIM1#,2#
main58280-07020-C0i201804-201908
BLACK,TRIM1#,4#
main58280-07021-C1i201908-202107
BLACK/RED,TRIM21
main58280-07021-C2i201908-202107
BLACK/BLACK THREADING,TRIM1#,2#,4#
main58280-07021-C2i201908-202008
BLACK/BLACK THREADING,TRIM1#,4#
main58280-07021-C2i201908-202008
BLACK/BLACK THREADING,TRIM1#,20
main58280-07021-C2i201908-202008
BLACK/BLACK THREADING,TRIM1#,2#
main58280-07021-C2i202008-202107
BLACK/BLACK THREADING,TRIM20,4#
main58280-07021-C2i202008-202107
BLACK/BLACK THREADING,TRIM2#,4#
main58280-07022-C2i202108
BLACK/BLACK THREADING,TRIM2#,4#
main58280-07022-C2i202108
BLACK/BLACK THREADING,TRIM1#,2#,4#
58811DCLIP(FOR CONSOLE BOX)
main90467-13082-A0i201804-202107
MELLOW WHITE
sub90467-13082
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-07060-B2i201804-202008
GRAY/LT.GRAY,TRIM1#
sub58831-07061
main58831-07060-C0i201804-202008
BLACK/BLACK,TRIM2#
sub58831-07061
main58831-07060-E0i201804-202008
NEUTRAL BEIGE/IVORY,TRIM4#
sub58831-07061
main58831-07061-B2i202008-202107
GRAY,TRIM1#
main58831-07061-C0i202008-202107
BLACK,TRIM2#
main58831-07061-E0i202008-202107
NEUTRAL BEIGE,TRIM4#
main58831-07061-E1i202008-202107
BROWN,TRIM4#
main58831-07070-B2i201804-202008
GRAY/LT.GRAY,TRIM1#
sub58831-07071
main58831-07070-C0i201804-202008
BLACK/BLACK,TRIM2#
sub58831-07071
main58831-07070-E2i201804-202008
BROWN/AMBER,TRIM43
sub58831-07071
main58831-07070-E3i201804-202008
NEUTRAL BEIGE/IVORY,TRIM40
sub58831-07071
main58831-07071-B2i202008-202107
GRAY,TRIM1#
main58831-07071-C0i202008-202107
BLACK,TRIM2#
main58831-07071-E2i202008-202107
BROWN,TRIM4#
58833ACOVER, CONSOLE, UPPER
main58833-07070-C0i201804-202008
BLACK,TRIM1#,2#
main58833-07070-C0i201804-202107
BLACK,TRIM1#,2#,4#
main58833-07070-C0i201804-202008
BLACK,TRIM1#,4#
main58833-07070-C0i202008-202107
BLACK,TRIM2#,4#
58834ACOVER, CONSOLE, LOWER
main58834-07050-C0i201804-202008
BLACK,TRIM1#,4#
main58834-07050-C0i201804-202107
BLACK,TRIM1#,2#,4#
main58834-07050-C0i201804-202008
BLACK,TRIM1#,2#
main58834-07050-C0i202008-202107
BLACK,TRIM2#,4#
58835CORNAMENT, CONSOLE BOX
main58835-07050i201804-202107
main58835-07070-C0i201804-202107
BLACK,TRIM1#,2#,4#
main58835-07070-C0i202008-202107
BLACK,TRIM2#,4#
main58835-07070-C0i201804-202008
BLACK,TRIM1#,2#
main58835-07080-C1i202008
BLACK,TRIM2#,4#
main58835-07080-C1i201804-202008
BLACK,TRIM1#,4#
main58835-07080-C1i201804-202008
BLACK,TRIM1#,2#
main58835-07080-C1i202008-202107
BLACK,TRIM1#,2#,4#
58835DORNAMENT, CONSOLE BOX, NO.2
main58835-07060i201804-202107
58892ADOOR, TRASH BOX
main58892-07040-B0i201804-202001
GRAY,TRIM1#
sub58892-07041
main58892-07040-C0i201804-202001
BLACK,TRIM2#
sub58892-07041
main58892-07040-E0i201804-202001
BROWN,TRIM43
sub58892-07041
main58892-07040-E1i201804-202001
NEUTRAL BEIGE,TRIM4#
sub58892-07041
main58892-07040-E1i201804-202001
NEUTRAL BEIGE,TRIM40
sub58892-07041
main58892-07041-B0i202002-202107
GRAY,TRIM1#
main58892-07041-C0i202002-202107
BLACK,TRIM2#
main58892-07041-E0i202002-202008
BROWN,TRIM43
main58892-07041-E0i202008-202107
BROWN,TRIM4#
main58892-07041-E1i202002-202107
NEUTRAL BEIGE,TRIM4#
main58892-07041-E1i202002-202008
NEUTRAL BEIGE,TRIM40
58916MAT, BOX BOTTOM
main58916-07020i201804-202107
58917MAT, BOX BOTTOM, NO.2
main58917-07020i201804-202107
58967ASPRING, CONSOLE DOOR STOPPER
main58967-06320i201804-202107
58971LOCK, CONSOLE COMPARTMENT DOOR
main58971-07020i201804-202107
58973PIN, CONSOLE COMPARTMENT DOOR LOCK
main58973-07010i201804-202107
7403
8121
8615
9008015073
main90080-15073
9008016089
main90080-16089
9018305094
main90183-05094
9046705171
main90467-05171
9046705172
main90467-05172
9046808048
main90468-08048
9353053008
main93530-53008

28 parts on this diagram · 2 diagrams in section
