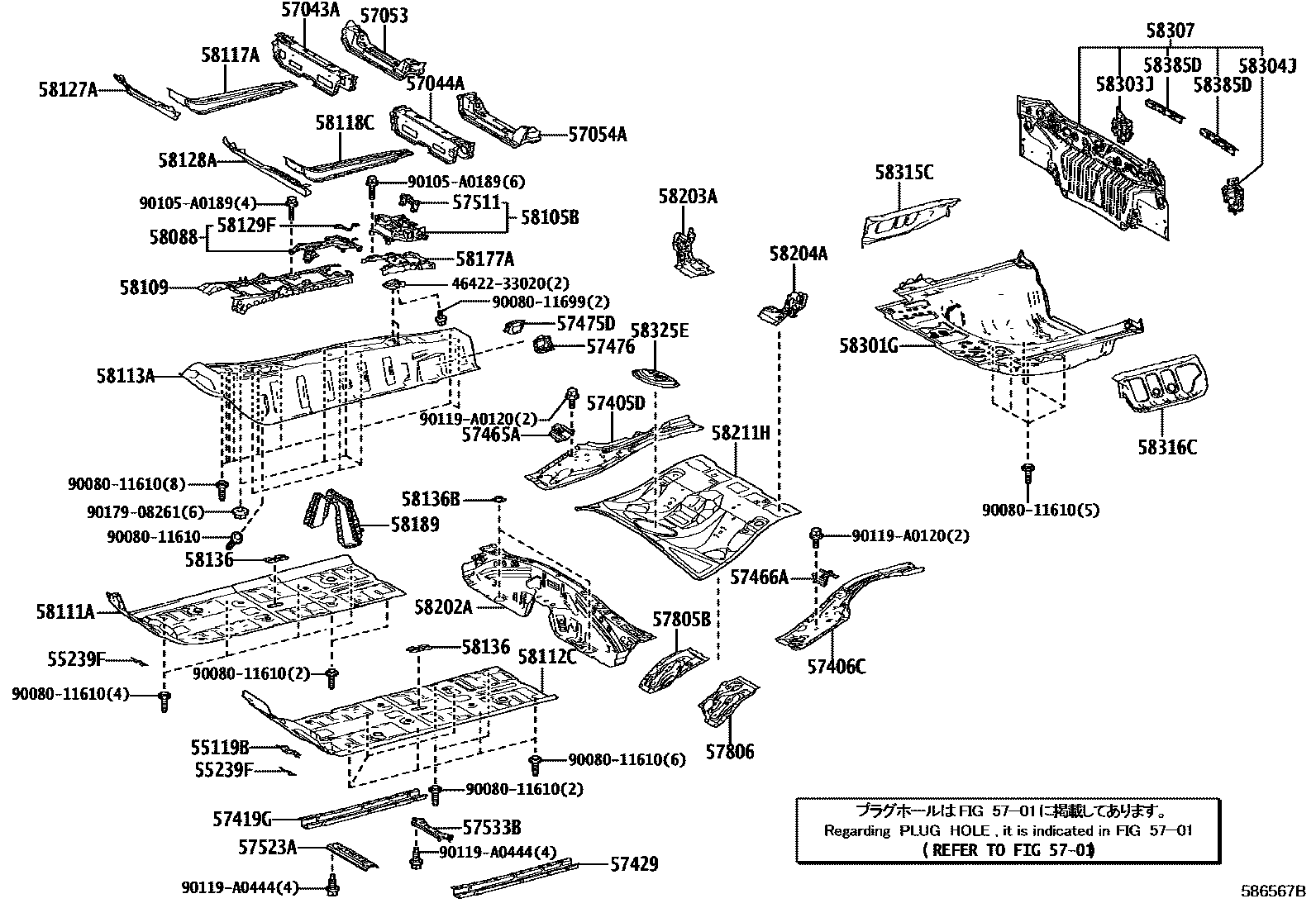

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

55119BEXTENSION, DASH PANEL, LH

main55119-06010iAXXA55;GSX50..XSE201804-202107

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-06050iAXXH50,GSX50201804-202107

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06060iAXXH50,GSX50201804-202107

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06060iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-06040iGSX50..XSE201804-202107

main57053-06050iAXXA55202008-202107

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-06090iAXXA55;GSX50..XSE201804-202107

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-06010iAXXH50,GSX50201804-202107

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-06010iAXXH50,GSX50201804-202107

sub57406-06060

sub90950-01919

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-07060iAXXA55;GSX50..XSE201804-202107

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-07060iAXXH50,GSX50201804-202107

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-06010iAXXH50,GSX50201804-202107

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-06010iAXXA55;GSX50..XSE201804-202107

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-06060iAXXH50,GSX50201804-202107

main57475-06100iAXXA55202008-202107

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-06050iAXXH50,GSX50201804-202107

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-06060iAXXA55;GSX50..XSE201804-202107

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-06010iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

main57523-06050iAXXA55202008-202107

57533BBRACE, FRONT FLOOR, CENTER

main57533-06070iAXXH50,GSX50201804-202107

main57533-06090iAXXA55202008-202107

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06030iGSX50..XSE201804-202107

main57805-06040iAXXH51201805-202008

main57805-06110iAXXA55202008-202107

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57805-06040iAXXH51201805-202008

main57806-06030iGSX50..XSE201804-202107

main57806-06070iAXXA55202008-202107

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-06010iAXXA55202008-202107

main58088-06060iGSX50..XSE201804-202107

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06060iAXXH50,GSX50201804-202107

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-06010iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

58111APAN, FRONT FLOOR, RH

main58111-07050iAXXH50,GSX50201804-202001

sub58111-07051

main58111-07051iAXXH50,GSX50202002-202107

main58111-07091iAXXA55202008-202107

58112CPAN, FRONT FLOOR, LH

main58112-07010iAXXH50,GSX50201804-202001

sub58112-07011

main58112-07011iAXXH50,GSX50202002-202107

58113APANEL, FRONT FLOOR, CENTER

main58113-07010iAXXH50,GSX50201804-202107

main58113-07040iAXXA55202008-202107

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-06010iAXXA55;GSX50..XSE201804-202107

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-06010iAXXH50,GSX50201804-202107

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-06070iAXXH51;GSX50..LIMD,TOU,XLE202008-202107

main58127-33030iAXXH50,GSX50201804-202008

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-06070iAXXA55,AXXH51,GSX50202008-202107

sub58128-06071

main58128-06071iAXXH51;GSX50..LIMD,TOU,XLE202108

main58128-33010iAXXH50,GSX50201804-202008

sub58128-33040

58129FCLAMP, SHIFT & SELECT CABLE

main58129-06010iAXXA55;GSX50..XSE201804-202107

58136COVER, FRONT FLOOR HOLE

main58136-06050iAXXH50,GSX50201804-202107

58136BCOVER, CENTER FLOOR HOLE

main58136-06070iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-06010iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

main58177-06050iAXXA55202008-202107

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06140iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06060iAXXH51201805-202008

main58202-06100iGSX50..XSE201804-202107

main58202-06140iAXXA55202008-202107

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-06020iAXXH50,GSX50201804-202107

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-06050iAXXH50,GSX50201804-202107

58211HPAN, CENTER FLOOR

main58211-06230iGSX50201804-201812

sub58211-06231

main58211-06231iGSX50201901-202107

main58211-06250iAXXH50201805-202008

main58211-06330iAXXA55202008-202107

58301GPAN SUB-ASSY, REAR FLOOR

main58301-06904iGSX50..LIMD,TOU,XLE201804-202107

main58301-06905iAXXH50201805-202008

main58301-06907iAXXA55202008-202107

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-07020iAXXH50,GSX50201804-202107

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-07020iAXXH50,GSX50201804-202107

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-07050iAXXA55;GSX50..XSE201804-202107

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-06020iGSX50201804-202107

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-06040iAXXH50,GSX50201804-202107

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06080iGSX50..XSE201804-202107

main58325-06090iAXXH50201805-202008

main58325-06100iAXXA55202008-202107

58385DBRACKET, REAR BUMPER COVER

main58385-06150iAXXA55;GSX50..XSE201804-202107

4642233020CAP, PARKING BRAKE CABLE, CASING

main46422-33020

9008011610

main90080-11610

9008011699

main90080-11699

90105A0189

main90105-A0189

90119A0120

main90119-A0120

90119A0444

main90119-A0444

9017908261

main90179-08261

54 parts on this diagram · 3 diagrams in section
