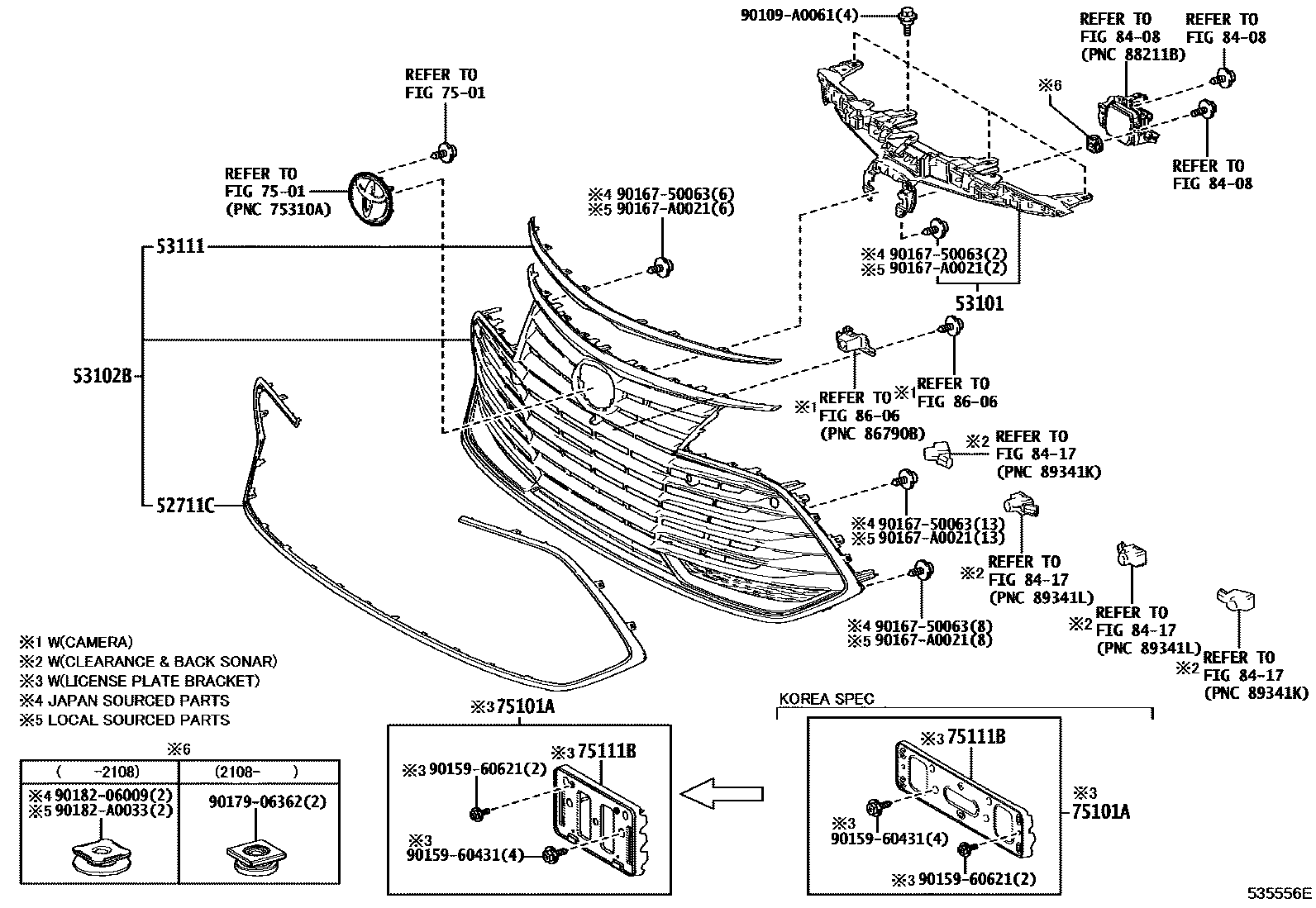

RADIATOR GRILLE

0001 1 0002 1

52711CMOULDING, FRONT BUMPER

main52711-07060iAXXH51,GSX50..LIMD,XLE201804-202107

53101GRILLE SUB-ASSY, RADIATOR

main53101-07120iAXXH51;GSX50..LIMD,TOU,XLE202108

NO PAINT REQ.

main53101-07200iAXXH51;GSX50..LIMD,TOU,XLE201804-202108

NO PAINT REQ.

53102BGRILLE SUB-ASSY, RADIATOR, LOWER

main53102-07070iAXXH50,GSX50..LIMD,XLE201804-202107

main53102-07100iAXXH50,GSX50..TOU,XSE201804-202107

53111GRILLE, RADIATOR

main53111-07100iAXXH50,GSX50..LIMD,XLE201804-202107

PLATED

7501

75101ABRACKET SUB-ASSY, FRONT LICENSE PLATE

75111BBRACKET, FRONT LICENSE PLATE

8408

8417

8606

90109A0061

main90109-A0061

9015960431

main90159-60431

9015960621

main90159-60621

9016750063

main90167-50063

90167A0021

main90167-A0021

9017906362

main90179-06362

9018206009

main90182-06009

90182A0033

main90182-A0033

18 parts on this diagram · 2 diagrams in section
