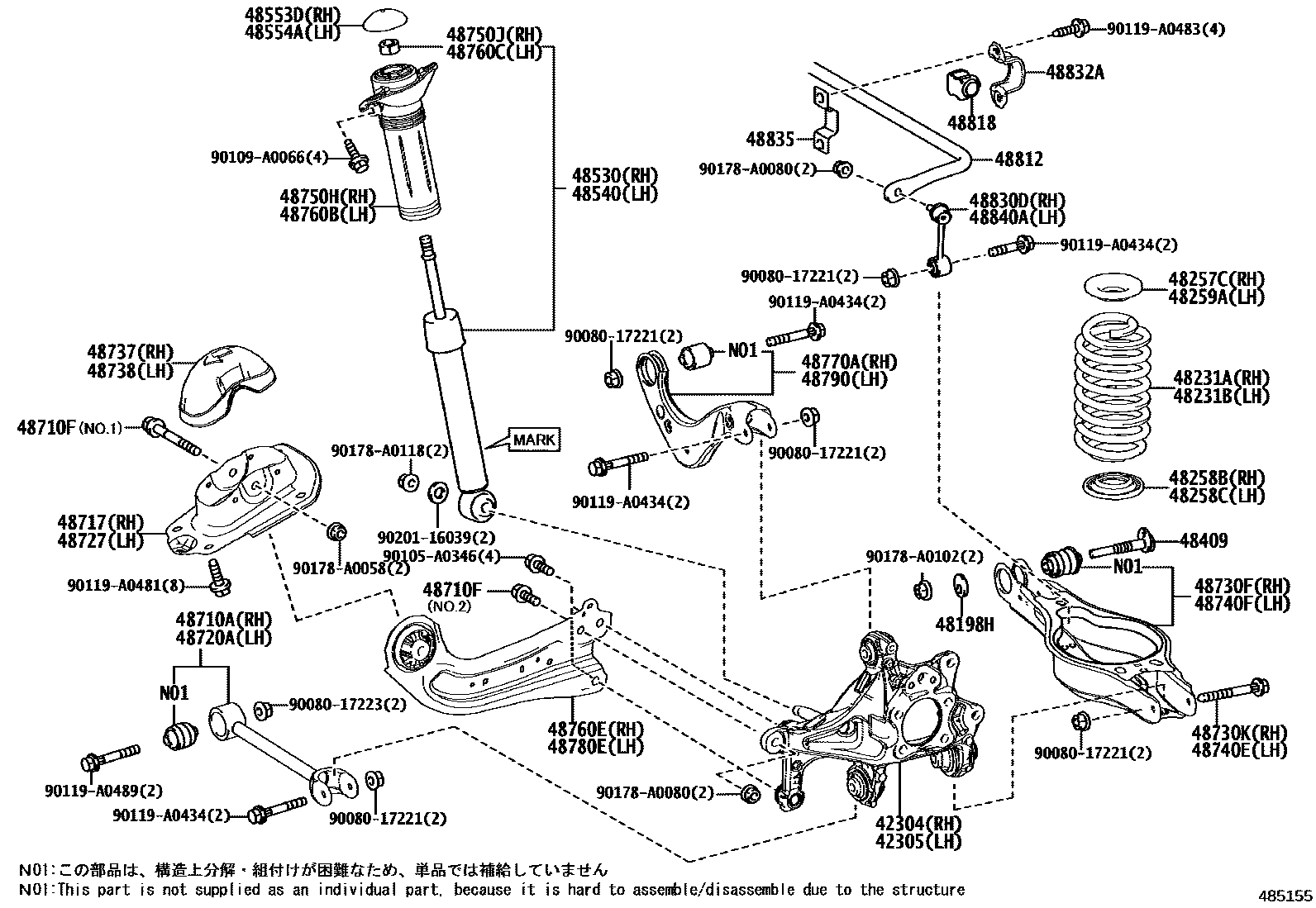

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-06270iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

main42304-06320iAXXA55202008-202107

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-06270iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

main42305-06320iAXXA55202008-202107

48198HCAM, CAMBER ADJUST, NO.2

main48198-07010iAXXH50,GSX50201808-202107

main48198-47010iAXXH50,GSX50201804-201807

48231ASPRING, COIL, REAR RH

main48231-06A00iGSX50..XLE201804-202008

main48231-06B30iAXXA55..XLE202008-202107

main48231-07130iGSX50..LIMD201804-202008

main48231-07140iGSX50..XSE202008-202107

main48231-07140iGSX50..XSE201804-202008

TRD PACKAGE

main48231-07150iAXXH51..XSE201805-202008

main48231-07160iAXXH51..LIMD201805-202008

main48231-07190iAXXH51..XLE201805-202008

main48231-07210iAXXA55..LIMD202008-202107

48231BSPRING, COIL, REAR LH

main48231-06A00iGSX50..XLE201804-202008

main48231-06B30iAXXA55..XLE202008-202107

main48231-07130iGSX50..LIMD201804-202008

main48231-07140iGSX50..TOU,XSE201804-202008

TRD PACKAGE

main48231-07140iGSX50..TOU202008-202107

main48231-07150iAXXH51..XSE201805-202008

main48231-07160iAXXH50..LIMD201805-202008

main48231-07190iAXXH51..XLE201805-202008

main48231-07210iAXXA55..LIMD202008-202107

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06030iAXXH50,GSX50201804-202107

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06230iAXXH50,GSX50201804-202107

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06230iAXXH50,GSX50201804-202107

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06030iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-06010iAXXA55;GSX50..XSE201808-202107

main48409-47011iAXXH50,GSX50201804-201807

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80825iGSX50..TOU201804-202008

MARK 48530-41010

main48530-8Z054iGSX50..XLE201804-202008

MARK 48530-06830

main48530-8Z056iAXXH50..XLE201805-202008

MARK 48530-06850

main48530-8Z066iGSX50..LIMD201804-202008

MARK 48530-07190

main48530-8Z067iGSX50..XSE201804-202107

MARK 48530-07200

main48530-8Z067iGSX50..XSE201804-202008

MARK 48530-07200,TRD PACKAGE

main48530-8Z069iAXXH50..XSE201805-202008

MARK 48530-07210

main48530-8Z070iAXXH50..LIMD201805-202008

MARK 48530-07220

main48530-8Z135iAXXA55..XLE202008-202107

MARK 48530-06A90

main48530-8Z155iAXXA55..LIMD202008-202107

MARK 48530-07300

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z054iGSX50..XLE201804-202008

MARK 48530-06830

main48530-8Z056iAXXH50..XLE201805-202008

MARK 48530-06850

main48530-8Z066iGSX50..LIMD201804-202008

MARK 48530-07190

main48530-8Z067iGSX50..XSE201804-202107

MARK 48530-07200

main48530-8Z067iGSX50..XSE201804-202008

MARK 48530-07200,TRD PACKAGE

main48530-8Z069iAXXH50..XSE201805-202008

MARK 48530-07210

main48530-8Z070iAXXH51..LIMD201805-202008

MARK 48530-07220

main48530-8Z135iAXXA55..XLE202008-202107

MARK 48530-06A90

main48530-8Z155iAXXA55..LIMD202008-202107

MARK 48530-07300

main48540-29375iGSX50..TOU201804-202008

MARK 48540-41010

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-06010iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-06010iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-06160iGSX50..XLE201804-202008

main48710-06170iAXXH51;GSX50..LIMD,TOU201804-202107

main48710-0R050iAXXA55202008-202107

48710FBOLT(FOR REAR TRAILING ARM)

main90105-A0346iAXXH50,GSX50201804-202107

NO.2

main90105-A0365iAXXH50,GSX50201804-202107

NO.1

main90119-A0346iAXXA55202008-202107

NO.2

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-06030iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

main48717-06160iAXXA55202008-202107

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-06160iGSX50..XLE201804-202008

main48710-06170iAXXH50;GSX50..LIMD,TOU,XSE201804-202107

main48710-0R050iAXXA55202008-202107

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-06060iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

main48727-06100iAXXA55202008-202107

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-06120iAXXH50,GSX50201804-202107

main48730-0R050iAXXA55202105-202107

(L)

main48730-0R050iAXXA55202008-202105

main48730-42060iAXXA55202105-202107

(J)

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-A0433iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

48737COVER, REAR SUSPENSION ARM, RH

main48753-06080iAXXH50,GSX50201804-202107

48738COVER, REAR SUSPENSION ARM, LH

main48753-06090iAXXH50,GSX50201804-202107

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-A0433iAXXH50,GSX50201804-202107

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-06120iAXXH50,GSX50201804-202107

main48730-0R050iAXXA55202105-202107

(L)

main48730-0R050iAXXA55202008-202105

main48730-42060iAXXA55202105-202107

(J)

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-06300iAXXH50,GSX50201804-202107

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-A0008iAXXH50,GSX50201812-202107

(L)

main94130-61200iAXXH51;GSX50..LIMD,TOU,XLE201812-202107

(J)

main94130-61200iAXXH50,GSX50201804-201812

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-06300iAXXH51;GSX50..LIMD,TOU,XLE201804-202107

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-A0008iAXXH50,GSX50201812-202107

(L)

main94130-61200iAXXH51;GSX50..LIMD,TOU,XLE201812-202107

(J)

main94130-61200iAXXH50,GSX50201804-201812

48760EARM ASSY, TRAILING, REAR RH

main48760-06130iGSX50..XLE201804-202008

main48760-06310iAXXH51;GSX50..LIMD,TOU201804-202107

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-06010iAXXH50,GSX50201804-202107

48780EARM ASSY, TRAILING, REAR LH

main48780-06110iGSX50..XLE201804-202008

main48780-06120iAXXA55;GSX50..XSE201804-202107

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-06010iAXXH50,GSX50201804-202107

48812BAR, STABILIZER, REAR

main48812-06220iAXXA55202008-202107

main48812-06240iAXXH51,GSX50..XLE201804-202008

main48812-06250iAXXH51,GSX50..LIMD201804-202008

main48812-07010iAXXH50,GSX50..TOU,XSE201804-202107

48818BUSH, STABILIZER, REAR

main48818-06330iAXXH50,GSX50..LIMD,XLE201804-202008

main48818-06340iAXXH50,GSX50..TOU,XSE201804-202107

main48818-0R050iAXXA55202008-202107

48830DLINK ASSY, REAR STABILIZER, RH

main48830-06090iGSX50..XSE201804-202107

main48830-0R030iAXXA55202008-202107

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-0R031iAXXA55202008-202107

48835BRACKET, REAR STABILIZER, LOWER

main48835-0R010iAXXA55202008-202107

48840ALINK ASSY, REAR STABILIZER, LH

main48830-06090iAXXH50,GSX50201804-202107

main48830-0R030iAXXA55202008-202107

9008017221

main90080-17221

9008017223

main90080-17223

90105A0346

main90105-A0346

90109A0066

main90109-A0066

90119A0434

main90119-A0434

90119A0481

main90119-A0481

90119A0483

main90119-A0483

90119A0489

main90119-A0489

90178A0058

main90178-A0058

90178A0080

main90178-A0080

90178A0102

main90178-A0102

90178A0118

main90178-A0118

9020116039

main90201-16039

52 parts on this diagram · 2 diagrams in section
