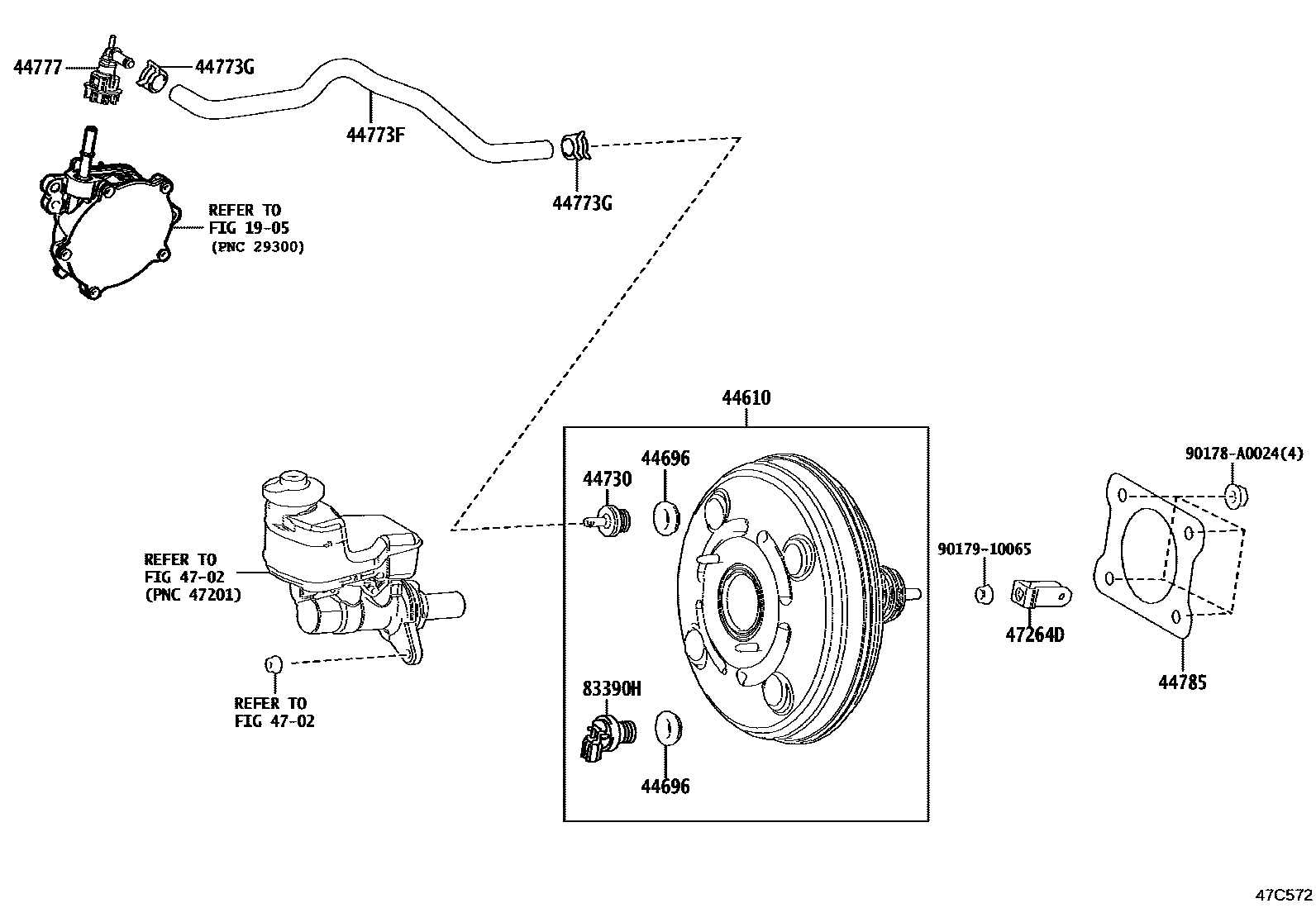

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-06670iAXXA55;GSX50..XSE201804-202107

44696GROMMET, CHECK VALVE

main90080-48071iGSX50201804-202107

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iAXXA55;GSX50..XSE201804-202107

44773FHOSE, UNION TO CHECK VALVE

main44773-06180iGSX50201804-202107

main44773-33180iAXXA55202008-202107

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGSX50201804-202107

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iAXXA55202008-202107

44785GASKET, BRAKE BOOSTER

main44785-02060iGSX50201804-202107

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iGSX50201804-202107

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGSX50201804-202008

90178A0024

main90178-A0024

9017910065

main90179-10065

13 parts on this diagram · 2 diagrams in section
