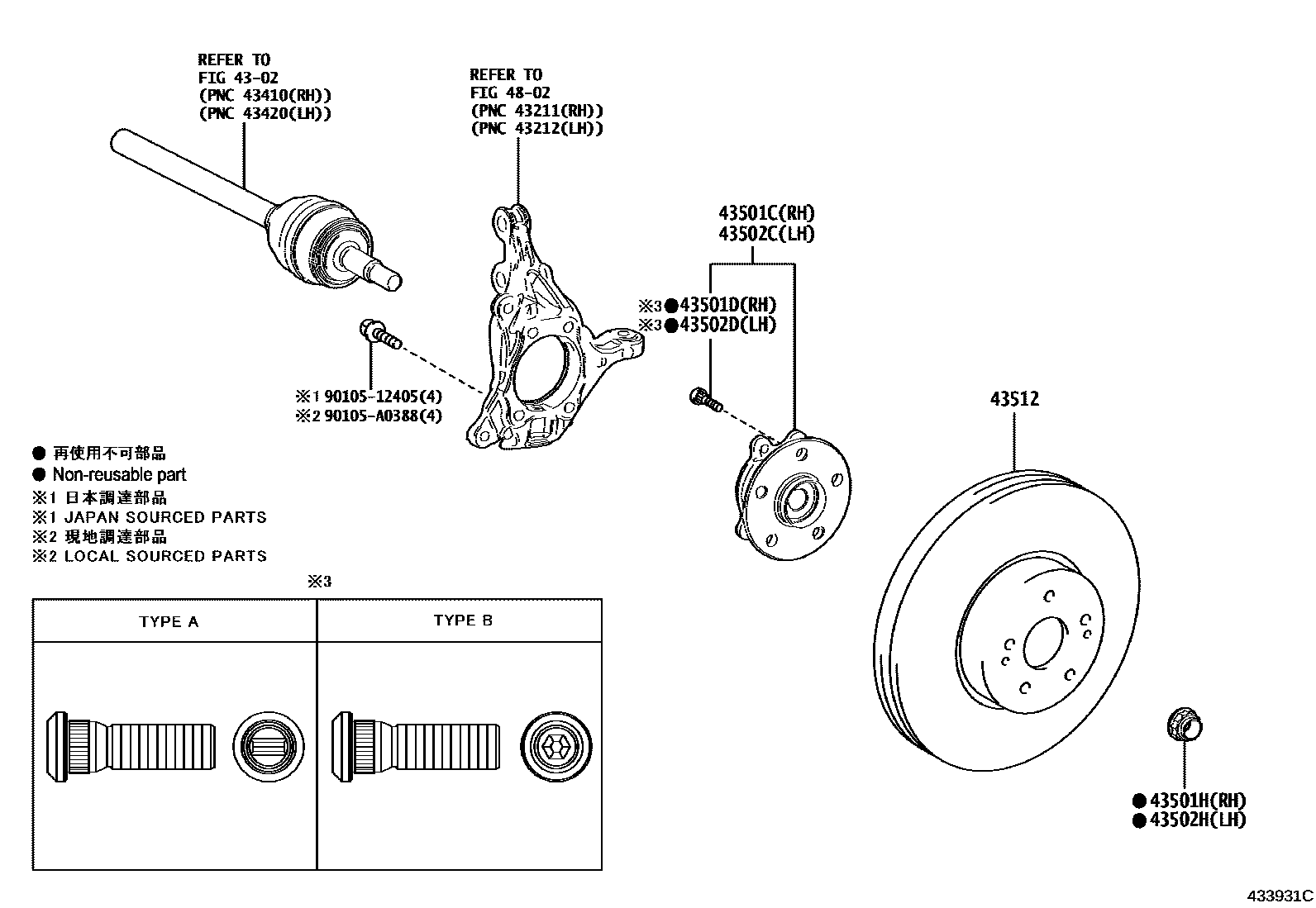

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-06010iAXXA55..LIMD202008-202107

main43550-06050iGSX50..XSE201804-202107

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iGSX50..XSE202008-202107

TYPE A:REFER ILLUST.

main90942-02049iAXXH50,GSX50201804-202008

main90942-02081iGSX50..XLE202008-202107

TYPE B:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238iAXXA55;GSX50..XSE201804-202107

(L)

main90177-22001iAXXA55;GSX50..XSE201804-202107

(J)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-06010iAXXA55202008-202107

main43550-06050iAXXH50,GSX50201804-202107

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iGSX50..XSE202008-202107

TYPE A:REFER ILLUST.

main90942-02049iAXXH50,GSX50201804-202008

main90942-02081iAXXA55202008-202107

TYPE B:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238iAXXA55;GSX50..XSE201804-202107

(L)

main90177-22001iAXXA55;GSX50..XSE201804-202107

(J)

43512DISC, FRONT

main43512-06200iAXXH50,GSX50201804-202107

main43512-48130iGSX50..XSE201908-202107

TRD PACKAGE

4802

9010512405

main90105-12405

90105A0388

main90105-A0388

11 parts on this diagram · 1 diagram in section
