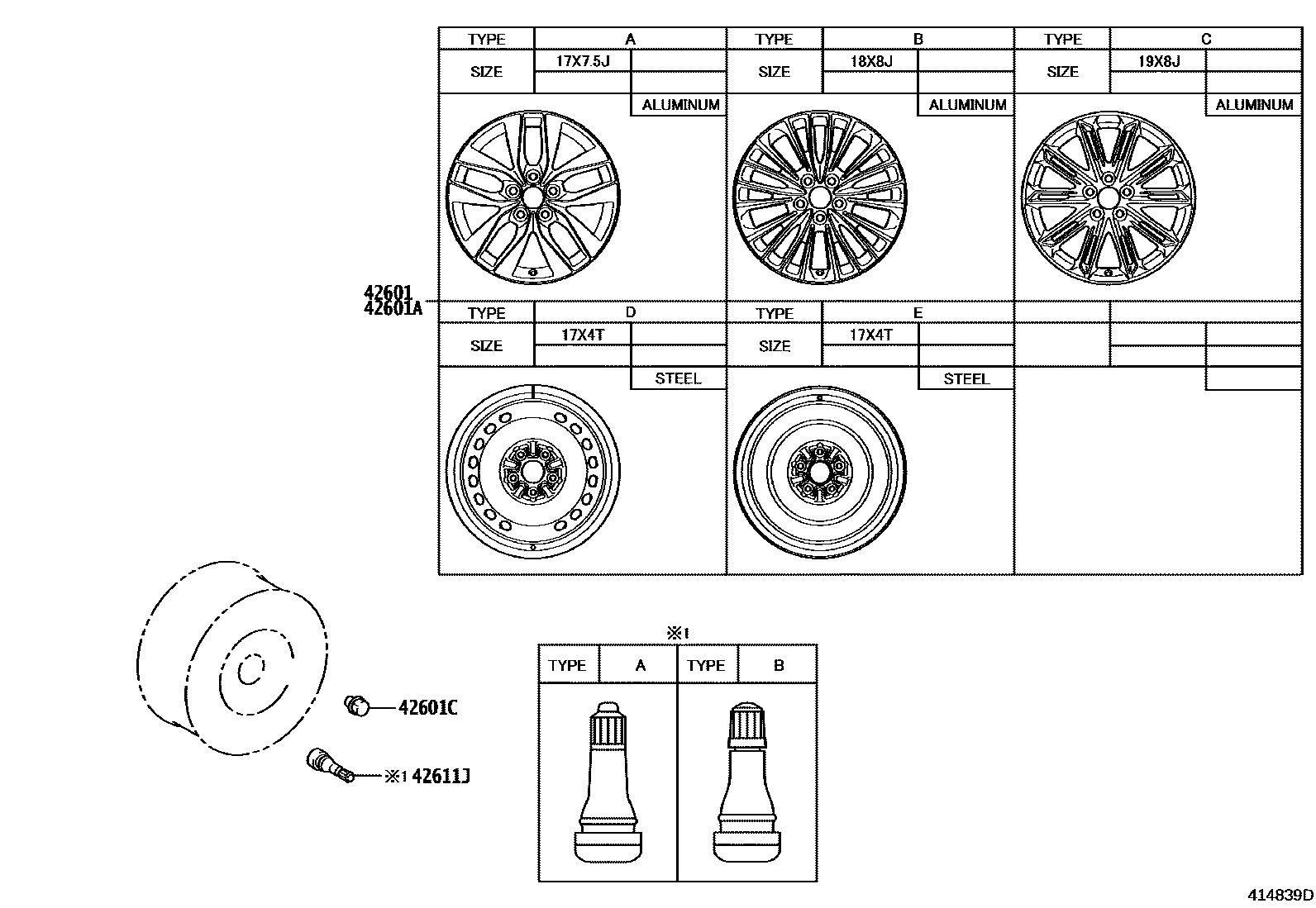

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-07140i201804-202002

17X7.5J,#,TYPE A:REFER ILLUST.

main42611-07141i202003-202107

17X7.5J,#,TYPE A:REFER ILLUST.

main42611-07150i201805-202008

18X8J,#,TYPE B:REFER ILLUST.

main42611-07160i201804-202107

19X8J,#,TYPE C:REFER ILLUST.

19X8J,#,TIRE & DISC WHEEL-235/40R19 8J ALUMINUM, SUMMER TIRE,TYPE C:REFER ILLUST.

main4261A-07030i201804-202107

18X8J, #,TYPE B:REFER ILLUST.

18X8J, #,KOREA SPEC,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-06C40i201804-202107

17X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001i201804-202107

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001i202008-202108

TYPE A:REFER ILLUST.

main90080-45006i202008-202107

TYPE B:REFER ILLUST.

main90080-45006i201804-202008

4 parts on this diagram · 2 diagrams in section
