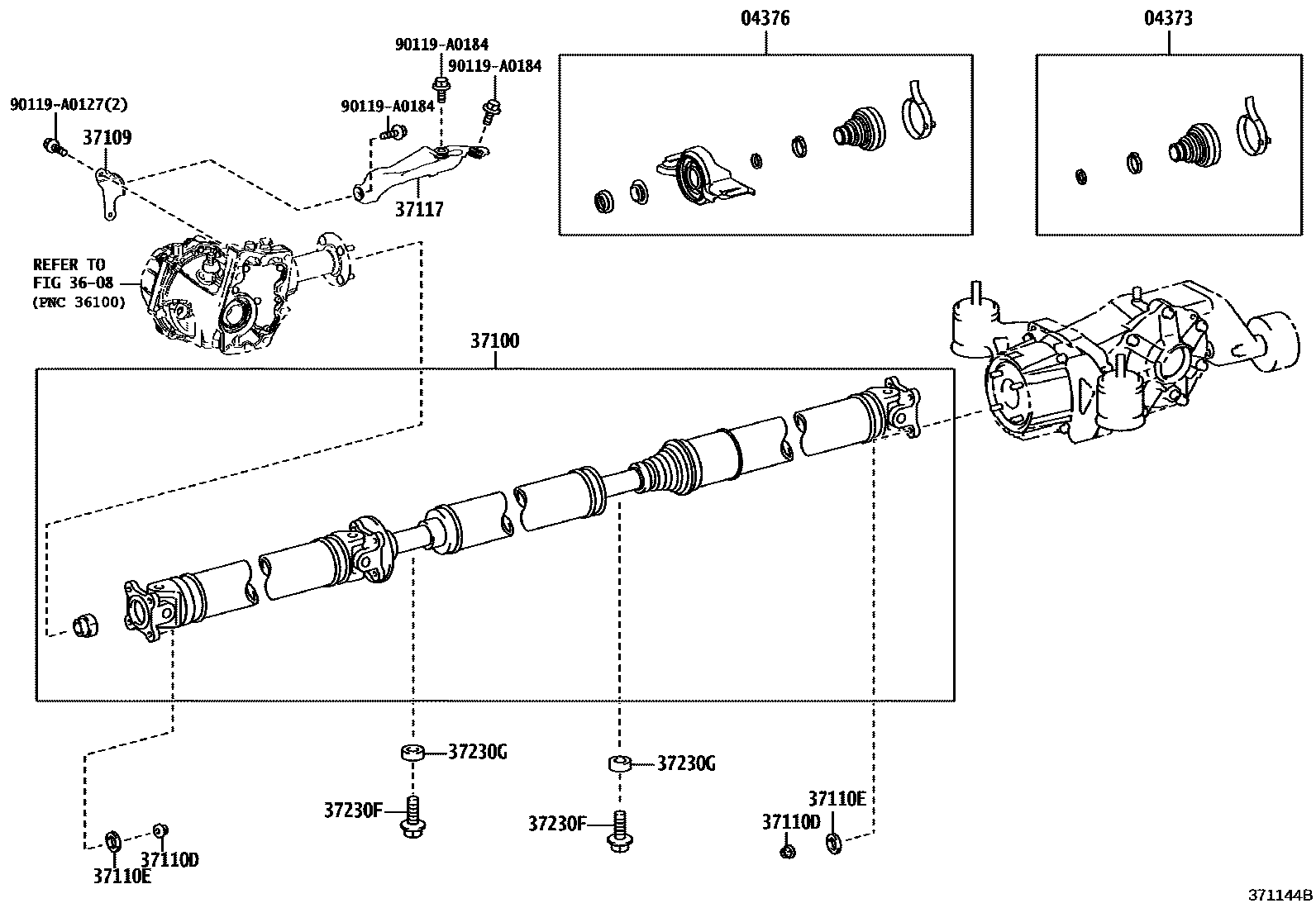

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-48010iAXXA55202008-202107

04376BEARING KIT, CENTER SUPPORT

main04376-48010iAXXA55202008-202107

3608

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-41010iAXXA55202008-202107

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-0R010iAXXA55202008-202107

37110DNUT (FOR PROPELLER SHAFT)

main90179-08197iAXXA55202008-202107

37110EWASHER (FOR PROPELLER SHAFT)

main90201-08097iAXXA55202008-202107

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-0R010iAXXA55202008-202107

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-A0246iAXXA55202008-202107

*10-1.25PX35-35

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iAXXA55202008-202107

T=4.5

main90201-10083iAXXA55202008-202107

T=6.5

90119A0127

main90119-A0127

90119A0184

main90119-A0184

12 parts on this diagram · 1 diagram in section
