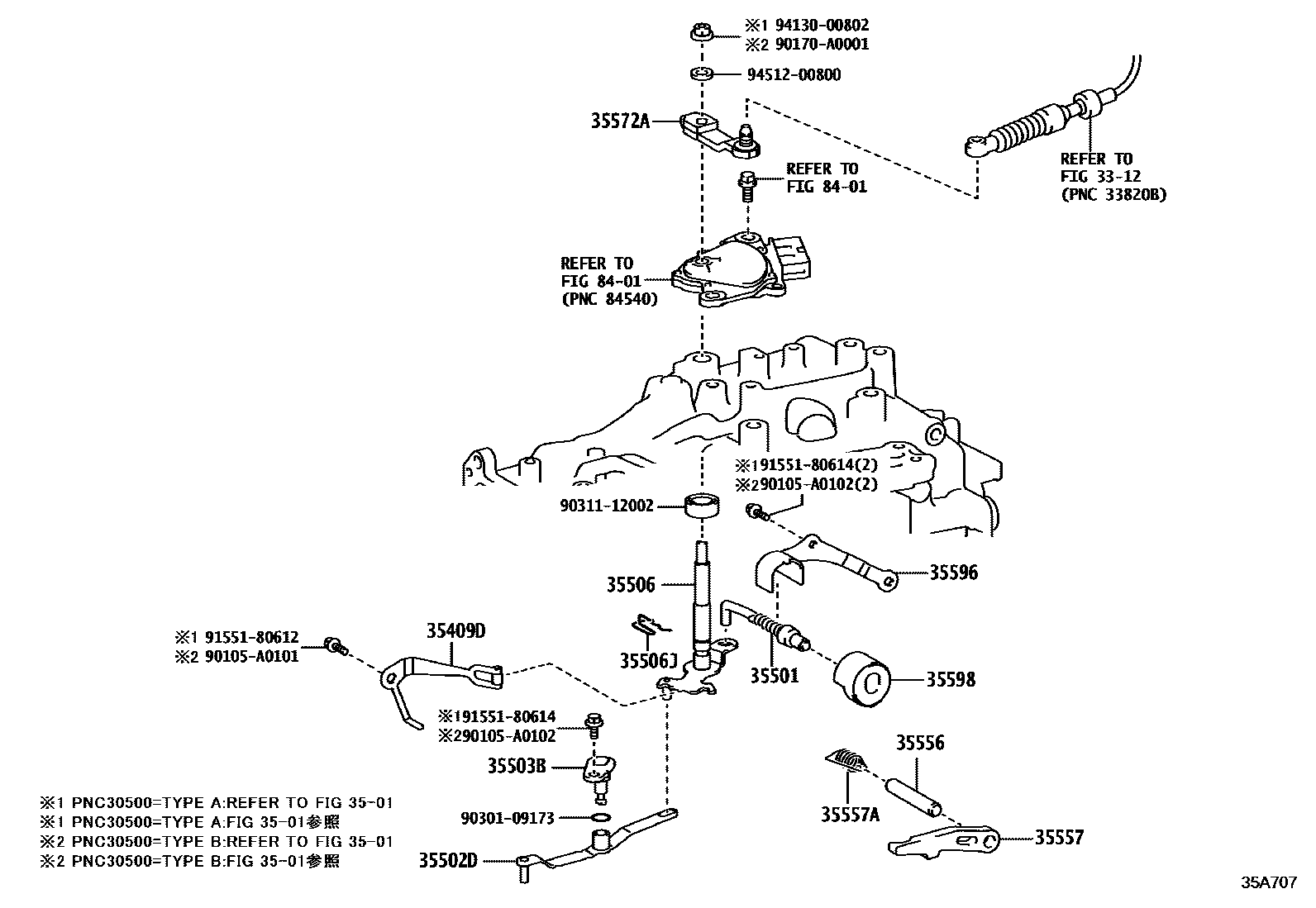

THROTTLE LINK & VALVE LEVER (ATM)
3312
35409DSPRING SUB-ASSY, MANUAL DETENT
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35501ROD SUB-ASSY, PARKING LOCK
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35502DLEVER SUB-ASSY, MANUAL VALVE LINK
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35503BSHAFT SUB-ASSY, MANUAL VALVE LINK
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
NO.2
T/P B:SEE 35-01,NO.1
TYPE B:REFER 35-01,TYPE A:REFER 35-01
T/P A:SEE 35-01,NO.1
NO.1,TMC:REFER 35-01
T/P A:SEE 35-01,NO.1
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35556SHAFT, PARKING LOCK PAWL
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
35557PAWL, PARKING LOCK
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35572ALEVER, TRANSMISSION CONTROL SHAFT
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35596PLATE, PAWL STOPPER
TMMWV:REFER 35-01
TYPE B:REFER 35-01
TYPE B:REFER 35-01,TYPE A:REFER 35-01
TYPE A:REFER 35-01
TOYOTA:REFER 35-01
35598SLEEVE, PARKING LOCK
TMMWV:REFER 35-01
TYPE B:REFER 35-01
TOYOTA:REFER 35-01
TYPE A:REFER 35-01
8401
90105A0101
main90105-A0101
90105A0102
90170A0001
main90170-A0001
9030109173
9031112002
9155180612
9155180614
9413000802
9451200800
23 parts on this diagram · 3 diagrams in section
