BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

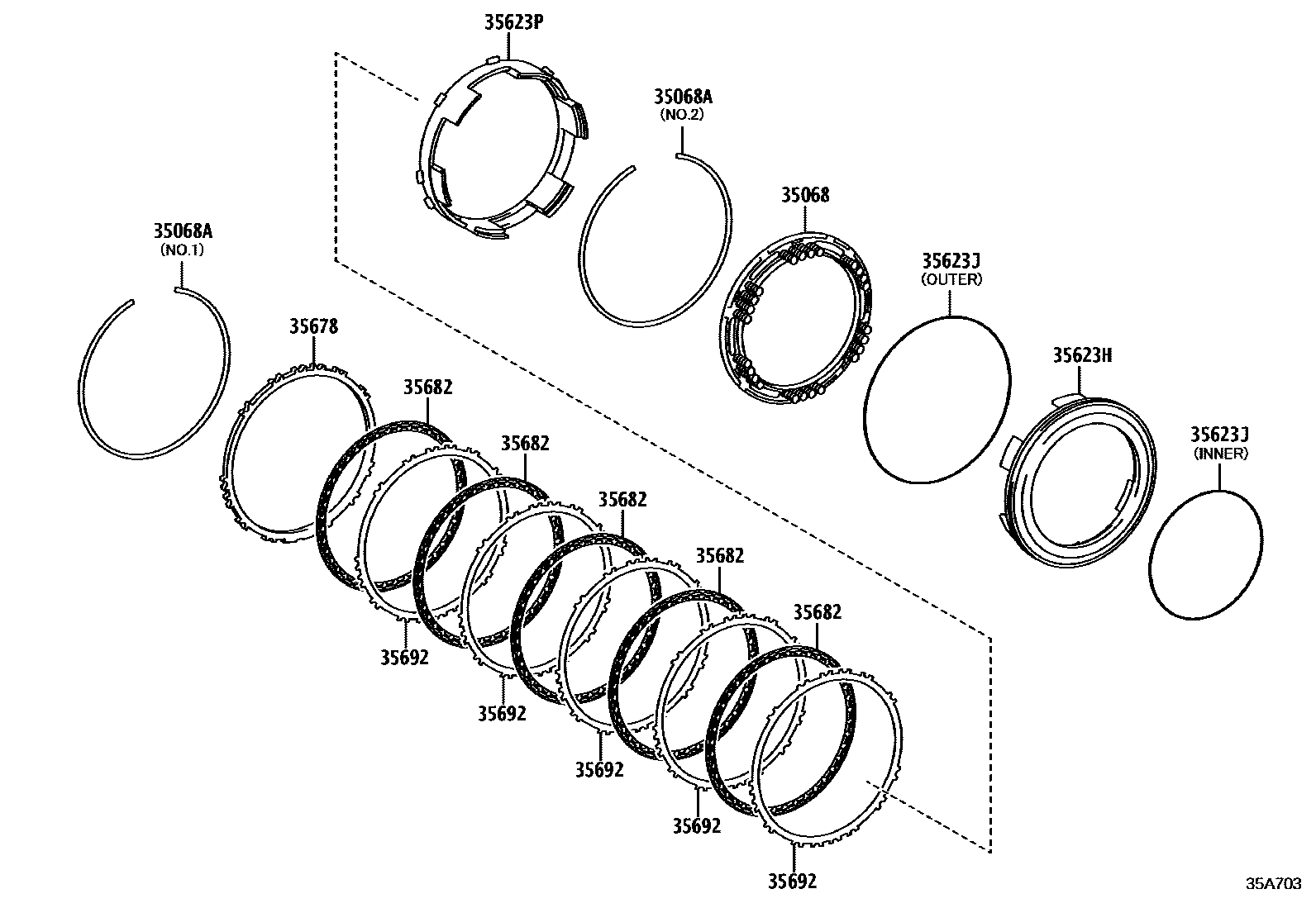

Parts diagram
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
main35068-0R010i202008
TYPE B:REFER 35-01
sub35068-0R020
main35068-33040i202008
TYPE A:REFER 35-01
main35068-48020i201804-202008
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
main90520-99174i202008
NO.1
main90520-99175i201804-202008
NO.2,TMC:REFER 35-01
main90520-A0075i201804-202008
NO.2,TMMWV:SEE 35-01
main90521-99193i202008
T/P A:SEE 35-01,NO.1
main90521-99198i202008
T/P A:SEE 35-01,NO.2
main90521-A0019i202008
T/P B:SEE 35-01,NO.1
main90521-A0021i202008
T/P B:SEE 35-01,NO.2
35623HPISTON, 1ST & REVERSE BRAKE
main35623-0R020i202008
TYPE B:REFER 35-01
main35623-33101i202008
TYPE A:REFER 35-01
main35623-48040i202008-202107
TYPE B:REFER 35-01
main35623-48050i201804-202008
TOYOTA:REFER 35-01
35623JRING, O (FOR 1ST & REVERSE BRAKE)
main90301-99209i202008
OUTER
main90301-99210i202008
INNER
main90301-99220i202008
T/P B:SEE35-01,INNER,T/P A:SEE35-01,INNER
main90301-99231i202008
T/P A:SEE35-01,OUTER,T/P B:SEE35-01,OUTER
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
main35624-0R010i202008
TYPE B:REFER 35-01
main35624-33050i202008
TYPE A:REFER 35-01
main35624-48020i202008-202107
TYPE B:REFER 35-01
main35624-48030i201804-202008
TOYOTA:REFER 35-01
35678FLANGE, BRAKE(FOR 2ND BRAKE)
main35678-06140i202008
T=5.0,MARK 0,TYPE B:REFER 35-01
main35678-06150i202008
T=5.1,MARK 1,TYPE B:REFER 35-01
main35678-06160i202008
T=5.2,MARK 2,TYPE B:REFER 35-01
main35678-06170i202008
T=5.3,MARK 3,TYPE B:REFER 35-01
main35678-06180i202008
T=5.4,MARK 4,TYPE B:REFER 35-01
main35678-06190i202008
T=5.5,MARK 5,TYPE B:REFER 35-01
main35678-06200i202008
T=5.6,MARK 6,TYPE B:REFER 35-01
main35678-06210i202008-202107
T=5.0,MARK 0,TYPE B:REFER 35-01
main35678-06220i202008-202107
T=5.1,MARK 1,TYPE B:REFER 35-01
main35678-06230i202008
T=5.2,MARK 2,TYPE B:REFER 35-01
main35678-06240i201804-202008
T=5.3,MARK 3,TMMWV:REFER 35-01
main35678-06250i201804-202008
T=5.4,MARK 4,TMMWV:REFER 35-01
main35678-06260i202008-202107
T=5.5,MARK 5,TYPE B:REFER 35-01
main35678-06270i201804-202008
T=5.6,MARK 6,TMMWV:REFER 35-01
main35678-33280i202008
T=5.0,MARK 0,TYPE A:REFER 35-01
main35678-33290i202008
T=5.1,MARK 1,TYPE A:REFER 35-01
main35678-33300i202008
T=5.2,MARK 2,TYPE A:REFER 35-01
main35678-33310i202008
T=5.3,MARK 3,TYPE A:REFER 35-01
main35678-33320i202008
T=5.4,MARK 4,TYPE A:REFER 35-01
main35678-33330i202008
T=5.5,MARK 5,TYPE A:REFER 35-01
main35678-33340i202008
T=5.6,MARK 6,TYPE A:REFER 35-01
main35678-48040i201804-202008
T=5.0,MARK 0,TOYOTA:REFER 35-01
main35678-48050i202008
T=5.1,MARK 1,TYPE A:REFER 35-01
main35678-48060i201804-202008
T=5.2,MARK 2,TOYOTA:REFER 35-01
main35678-48070i201804-202008
T=5.3,MARK 3,TOYOTA:REFER 35-01
main35678-48080i202008
T=5.4,MARK 4,TYPE A:REFER 35-01
main35678-48090i202008
T=5.5,MARK 5,TYPE A:REFER 35-01
main35678-48100i201804-202008
T=5.6,MARK 6,TOYOTA:REFER 35-01
35682DISC, BRAKE(FOR 2ND BRAKE)
main35682-06020×5i202008
TYPE B:REFER 35-01
main35682-06030×5i202008-202107
TYPE B:REFER 35-01
main35682-33040×5i202008
TYPE A:REFER 35-01
main35682-48030×5i202008
TYPE A:REFER 35-01
35692PLATE, BRAKE(FOR 2ND BRAKE)
main35692-06020×5i202008
TYPE B:REFER 35-01
main35692-06030×5i201804-202008
TMMWV:REFER 35-01
main35692-33040×5i202008
TYPE A:REFER 35-01
main35692-48020×5i202008
TYPE A:REFER 35-01

8 parts on this diagram · 2 diagrams in section
