BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

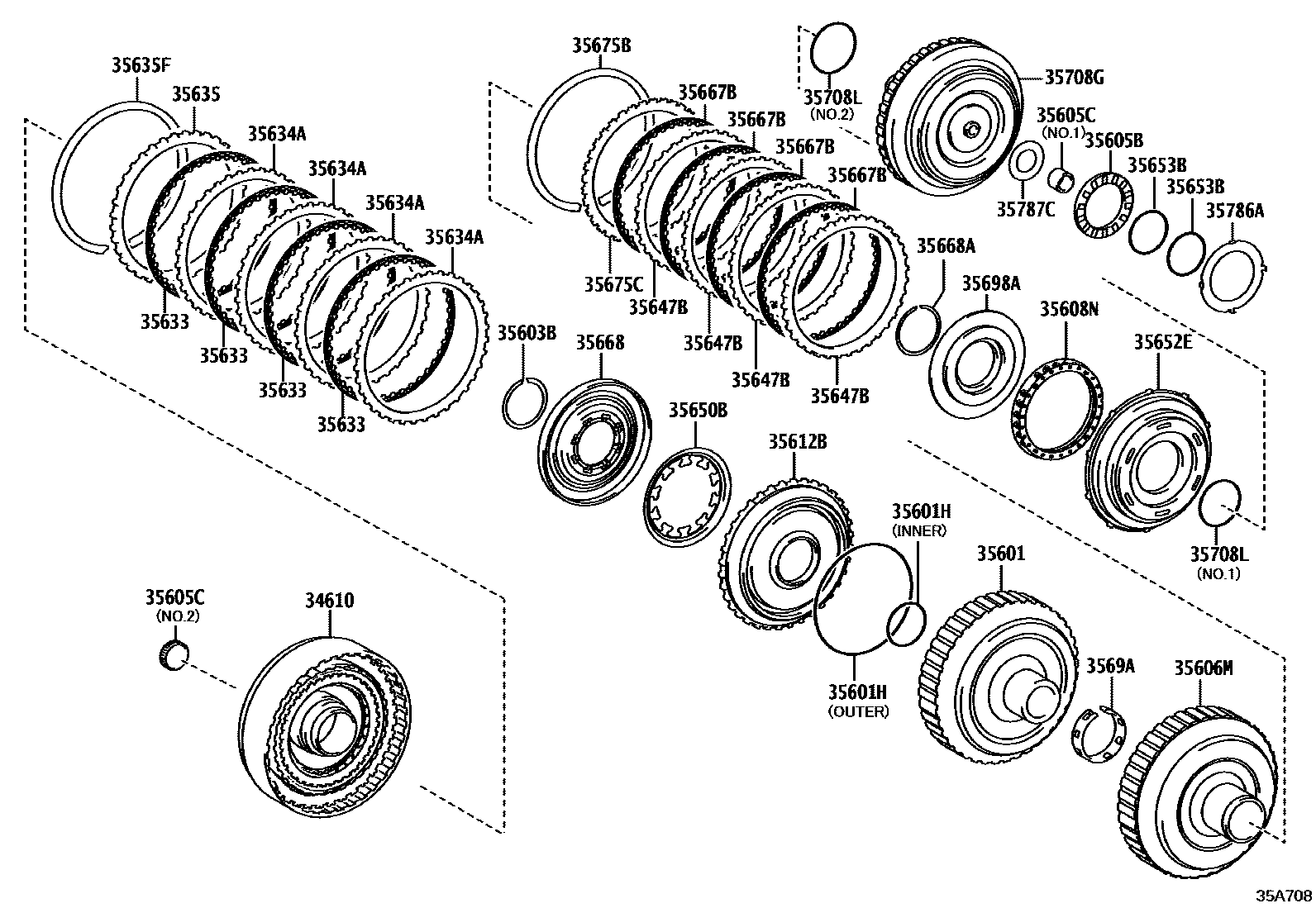

Parts diagram
34610CLUTCH ASSY, C-3 & C-4
main34610-06010i202008
TYPE B:REFER 35-01
main34610-06020i201804-202008
TMMWV:REFER 35-01
sub34610-06030
main34610-06020i202008-202012
TYPE B:REFER 35-01
sub34610-06030
main34610-06030i202101-202107
TYPE B:REFER 35-01
main34610-33060i202008
TYPE A:REFER 35-01
main34610-48030i201804-202008
TOYOTA:REFER 35-01
sub34610-48050
main34610-48030i202008-202012
TYPE A:REFER 35-01
sub34610-48050
main34610-48050i202101
TYPE A:REFER 35-01
35601DRUM SUB-ASSY, CLUTCH
main35601-06010i202008-202207
TYPE B:REFER 35-01
main35601-06010i201804-202008
TMMWV:REFER 35-01
main35601-0R010i202008
TYPE B:REFER 35-01
main35601-33010i202008
TYPE A:REFER 35-01
main35601-48041i202008
TYPE A:REFER 35-01
main35601-48041i201804-202008
TOYOTA:REFER 35-01
35601HRING, O(FOR C-1 DRUM)
main90301-99219i202008
T/P A:SEE35-01,OUTER,T/P B:SEE35-01,OUTER
main90301-99229i201804-202008
OUTER
main90302-40001i202008
T/P B:SEE35-01,INNER,T/P A:SEE35-01,INNER
main90302-42001i201804-202008
INNER
35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)
main90520-44043i202008
TYPE A:REFER 35-01
main90520-46015i201804-202008
TOYOTA:REFER 35-01
main90520-46015i202008
TYPE A:REFER 35-01
main90520-A0065i202008
TYPE B:REFER 35-01
main90520-A0074i201804-202008
TMMWV:REFER 35-01
main90520-A0074i202008-202207
TYPE B:REFER 35-01
35605BBEARING, THRUST NEEDLE ROLLER
main90374-47005i202008
TYPE A:REFER 35-01
main90374-50002i201804-202008
main90374-A0048i202008
TYPE B:REFER 35-01
35605CBEARING, NEEDLE ROLLER
main90364-13010i202008
T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1
main90364-16011i202008
T/P A:SEE 35-01,NO.1
main90364-16011i201804-202008
TOYOTA:REFER 35-01
main90364-16012i202008-202107
T/P B:SEE 35-01,NO.1
main90364-16012i201804-202008
TMMWV:REFER 35-01
main90364-23006i202008-202205
T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2
sub90364-23007
main90364-26007i202008-202205
T/P A:SEE 35-01,NO.2
sub90364-26009
main90364-26007i201804-202008
NO.2,TMC:SEE ILLUST
sub90364-26009
main90364-26008i202008-202205
T/P B:SEE 35-01,NO.2
main90364-26008i201804-202008
NO.2,TMMWV:SEE 35-01
main90364-26009i202206
T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2
35606MHUB SUB-ASSY, SUN GEAR INPUT
main35606-06040i202008-202107
TYPE B:REFER 35-01
main35606-06040i201804-202008
TMMWV:REFER 35-01
main35606-0R010i202008
TYPE B:REFER 35-01
main35606-33040i202008
TYPE A:REFER 35-01
main35606-48020i201804-202008
TOYOTA:REFER 35-01
main35606-48020i202008
TYPE A:REFER 35-01
35608NSPRING SUB-ASSY, CLUTCH RETURN W/RETAINER
main3560A-06010i202008
TYPE B:REFER 35-01
sub3560A-06030
main3560A-06020i202008-202107
TYPE B:REFER 35-01
main3560A-06020i201804-202008
TMMWV:REFER 35-01
main3560A-33010i202008
TYPE A:REFER 35-01
main3560A-48010i201804-202008
TOYOTA:REFER 35-01
main3560A-48010i202008
TYPE A:REFER 35-01
35612BPISTON, FORWARD CLUTCH
main35612-33070i202008
TYPE B:REFER 35-01,TYPE A:REFER 35-01
main35612-48020i201804-202008
35633DISC, CLUTCH (FOR FRONT CLUTCH)
main35633-06020i202008
TYPE B:REFER 35-01
main35633-06030i201804-202008
TMMWV:REFER 35-01
main35633-06030i202008-202207
TYPE B:REFER 35-01
main35633-33140i202008
TYPE A:REFER 35-01
main35633-48030i202008
TYPE A:REFER 35-01
main35633-48030i201804-202008
TOYOTA:REFER 35-01
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
main35634-06030i202008
T=1.8,TYPE B:REFER 35-01
main35634-06040i201804-202008
T=1.8,NO.2,TMMWV:SEE 35-01
main35634-06040i202008-202207
T=1.8,T/P B:SEE 35-01,NO.2
main35634-06050i202008-202207
T=1.4,T/P B:SEE 35-01,NO.1
main35634-06050i201804-202008
T=1.4,NO.1,TMMWV:SEE 35-01
main35634-33090i202008
T=1.8,TYPE A:REFER 35-01
main35634-48050i201804-202008
T=1.8,NO.2,TMC:REFER 35-01
main35634-48050i202008
T=1.8,T/P A:SEE 35-01,NO.2
main35634-48060i202008
T=1.4,T/P A:SEE 35-01,NO.1
main35634-48060i201804-202008
T=1.4,NO.1,TMC:REFER 35-01
35635FLANGE, FORWARD CLUTCH
main35635-06060i202008
T=4.0,MARK 0,TYPE B:REFER 35-01
main35635-06070i202008
T=4.1,MARK 1,TYPE B:REFER 35-01
main35635-06080i202008
T=4.2,MARK 2,TYPE B:REFER 35-01
main35635-06090i202008
T=4.3,MARK 3,TYPE B:REFER 35-01
main35635-06100i202008
T=4.4,MARK 4,TYPE B:REFER 35-01
main35635-06110i202008
T=4.5,MARK 5,TYPE B:REFER 35-01
main35635-06120i202008
T=4.6,MARK 6,TYPE B:REFER 35-01
main35635-06130i202008-202207
T=4.3,MARK 0,TYPE B:REFER 35-01
main35635-06130i201804-202008
T=4.3,MARK 0,TMMWV:REFER 35-01
main35635-06140i201804-202008
T=4.4,MARK 1,TMMWV:REFER 35-01
main35635-06140i202008-202207
T=4.4,MARK 1,TYPE B:REFER 35-01
main35635-06150i201804-202008
T=4.5,MARK 2,TMMWV:REFER 35-01
main35635-06150i202008-202207
T=4.5,MARK 2,TYPE B:REFER 35-01
main35635-06160i201804-202008
T=4.6,MARK 3,TMMWV:REFER 35-01
main35635-06160i202008-202207
T=4.6,MARK 3,TYPE B:REFER 35-01
main35635-06170i202008-202207
T=4.7,MARK 4,TYPE B:REFER 35-01
main35635-06170i201804-202008
T=4.7,MARK 4,TMMWV:REFER 35-01
main35635-06180i201804-202008
T=4.8,MARK 5,TMMWV:REFER 35-01
main35635-06180i202008-202207
T=4.8,MARK 5,TYPE B:REFER 35-01
main35635-06190i202008-202207
T=4.9,MARK 6,TYPE B:REFER 35-01
main35635-06190i201804-202008
T=4.9,MARK 6,TMMWV:REFER 35-01
main35635-06200i201804-202008
T=5.0,MARK 7,TMMWV:REFER 35-01
main35635-06200i202008-202207
T=5.0,MARK 7,TYPE B:REFER 35-01
main35635-06210i202008-202207
T=5.1,MARK 8,TYPE B:REFER 35-01
main35635-06210i201804-202008
T=5.1,MARK 8,TMMWV:REFER 35-01
main35635-33200i202008
T=4.0,TYPE A:REFER 35-01
main35635-33210i202008
T=4.1,TYPE A:REFER 35-01
main35635-33220i202008
T=4.2,TYPE A:REFER 35-01
main35635-33230i202008
T=4.3,TYPE A:REFER 35-01
main35635-33240i202008
T=4.4,TYPE A:REFER 35-01
main35635-33250i202008
T=4.5,TYPE A:REFER 35-01
main35635-33260i202008
T=4.6,TYPE A:REFER 35-01
main35635-48120i201804-202008
T=4.3,TOYOTA:REFER 35-01
main35635-48120i202008
T=4.3,TYPE A:REFER 35-01
main35635-48130i202008
T=4.4,TYPE A:REFER 35-01
main35635-48130i201804-202008
T=4.4,TOYOTA:REFER 35-01
main35635-48140i202008
T=4.5,TYPE A:REFER 35-01
main35635-48140i201804-202008
T=4.5,TOYOTA:REFER 35-01
main35635-48150i202008
T=4.6,TYPE A:REFER 35-01
main35635-48150i201804-202008
T=4.6,TOYOTA:REFER 35-01
main35635-48160i201804-202008
T=4.7,TOYOTA:REFER 35-01
main35635-48160i202008
T=4.7,TYPE A:REFER 35-01
main35635-48170i202008
T=4.8,TYPE A:REFER 35-01
main35635-48170i201804-202008
T=4.8,TOYOTA:REFER 35-01
main35635-48180i202008
T=4.9,TYPE A:REFER 35-01
main35635-48180i201804-202008
T=4.9,TOYOTA:REFER 35-01
main35635-48190i202008
T=5.0,TYPE A:REFER 35-01
main35635-48190i201804-202008
T=5.0,TOYOTA:REFER 35-01
main35635-48200i201804-202008
T=5.1,TOYOTA:REFER 35-01
main35635-48200i202008
T=5.1,TYPE A:REFER 35-01
35635FRING SNAP (FOR FOWARD CLUTCH FLANGE)
main90520-99188i201804-202008
TOYOTA:REFER 35-01
main90520-99188i202008
TYPE A:REFER 35-01
main90520-A0069i202008
TYPE B:REFER 35-01
main90520-A0073i202008-202207
TYPE B:REFER 35-01
main90520-A0073i201804-202008
TMMWV:REFER 35-01
main90521-99194i202008
TYPE A:REFER 35-01
35647BPLATE, CLUTCH, NO.2
main35647-06030i202008
TYPE B:REFER 35-01
main35647-06040i202008-202107
T/P B:SEE 35-01,NO.1
main35647-06040i201804-202008
NO.1,TMMWV:SEE 35-01
main35647-06050i202008-202107
T/P B:SEE 35-01,NO.2
main35647-06050i201804-202008
NO.2,TMMWV:SEE 35-01
main35647-33050i202008
TYPE A:REFER 35-01
main35647-48030i202008
T/P A:SEE 35-01,NO.1
main35647-48030i201804-202008
NO.1,TMC:REFER 35-01
main35647-48040i202008
T/P A:SEE 35-01,NO.2
main35647-48040i201804-202008
NO.2,TMC:REFER 35-01
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
main35628-06030i201804-202008
TMMWV:REFER 35-01
main35628-06030i202008-202207
TYPE B:REFER 35-01
main35628-0R010i202008
TYPE B:REFER 35-01
main35628-33050i202008
TYPE A:REFER 35-01
main35628-48010i201804-202008
TOYOTA:REFER 35-01
main35628-48010i202008
TYPE A:REFER 35-01
35652EPISTON, C-2 CLUTCH
main35652-33020i202008
TYPE B:REFER 35-01,TYPE A:REFER 35-01
main35652-48020i201804-202008
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
main35653-33020i202008
TYPE B:REFER 35-01,TYPE A:REFER 35-01
main35653-48020i201804-202008
35667BDISK, CLUTCH, NO.2
main35667-06020i202008
TYPE B:REFER 35-01
main35667-06030i202008-202107
TYPE B:REFER 35-01
main35667-06030i201804-202008
TMMWV:REFER 35-01
main35667-33040i202008
TYPE A:REFER 35-01
main35667-48030i201804-202008
main35667-48030i202008
TYPE A:REFER 35-01
35668BALANCER, CLUTCH, NO.1
main35668-33030i202008
TYPE B:REFER 35-01,TYPE A:REFER 35-01
main35668-48020i201804-202008
35668ARING, SNAP(FOR CLUTCH BALANCER)
main90520-45038i202008
TYPE B:REFER 35-01,TYPE A:REFER 35-01
main90520-48013i202008
TYPE A:REFER 35-01
main90520-48013i201804-202008
(J)
main90520-A0081i201804-202008
(L)
main90520-A0081i202008-202107
TYPE B:REFER 35-01
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
main90520-99171i202008
TYPE A:REFER 35-01
main90520-99171i201804-202008
TOYOTA:REFER 35-01
main90520-A0070i202008
TYPE B:REFER 35-01
main90520-A0080i202008-202107
TYPE B:REFER 35-01
main90520-A0080i201804-202008
TMMWV:REFER 35-01
main90521-99195i202008
TYPE A:REFER 35-01
35675CFLANGE, DIRECT CLUTCH
main35675-06070i202008
T=3.6,MARK A,TYPE B:REFER 35-01
main35675-06080i202008
T=3.7,MARK B,TYPE B:REFER 35-01
main35675-06090i202008
T=3.8,MARK C,TYPE B:REFER 35-01
main35675-06100i202008
T=3.9,MARK D,TYPE B:REFER 35-01
main35675-06110i202008
T=4.0,MARK E,TYPE B:REFER 35-01
main35675-06120i202008
T=4.1,MARK F,TYPE B:REFER 35-01
main35675-06130i202008
T=4.2,MARK G,TYPE B:REFER 35-01
main35675-06140i202008-202107
T=3.6,MARK 0,TYPE B:REFER 35-01
main35675-06140i201804-202008
T=3.6,MARK 0,TMMWV:REFER 35-01
main35675-06150i202008-202107
T=3.7,MARK 1,TYPE B:REFER 35-01
main35675-06150i201804-202008
T=3.7,MARK 1,TMMWV:REFER 35-01
main35675-06160i202008-202107
T=3.8,MARK 2,TYPE B:REFER 35-01
main35675-06160i201804-202008
T=3.8,MARK 2,TMMWV:REFER 35-01
main35675-06170i202008-202107
T=3.9,MARK 3,TYPE B:REFER 35-01
main35675-06170i201804-202008
T=3.9,MARK 3,TMMWV:REFER 35-01
main35675-06180i202008-202107
T=4.0,MARK 4,TYPE B:REFER 35-01
main35675-06180i201804-202008
T=4.0,MARK 4,TMMWV:REFER 35-01
main35675-06190i202008-202107
T=4.1,MARK 5,TYPE B:REFER 35-01
main35675-06190i201804-202008
T=4.1,MARK 5,TMMWV:REFER 35-01
main35675-06200i202008-202107
T=4.2,MARK 6,TYPE B:REFER 35-01
main35675-06200i201804-202008
T=4.2,MARK 6,TMMWV:REFER 35-01
main35675-33140i202008
T=3.6,TYPE A:REFER 35-01
main35675-33150i202008
T=3.7,TYPE A:REFER 35-01
main35675-33160i202008
T=3.8,TYPE A:REFER 35-01
main35675-33170i202008
T=3.9,TYPE A:REFER 35-01
main35675-33180i202008
T=4.0,TYPE A:REFER 35-01
main35675-33190i202008
T=4.1,TYPE A:REFER 35-01
main35675-33200i202008
T=4.2,TYPE A:REFER 35-01
main35675-48370i202008
T=3.6,MARK 0,TYPE A:REFER 35-01
main35675-48370i201804-202008
T=3.6,MARK 0,TOYOTA:REFER 35-01
main35675-48380i202008
T=3.7,MARK 1,TYPE A:REFER 35-01
main35675-48380i201804-202008
T=3.7,MARK 1,TOYOTA:REFER 35-01
main35675-48390i201804-202008
T=3.8,MARK 2,TOYOTA:REFER 35-01
main35675-48390i202008
T=3.8,MARK 2,TYPE A:REFER 35-01
main35675-48400i202008
T=3.9,MARK 3,TYPE A:REFER 35-01
main35675-48400i201804-202008
T=3.9,MARK 3,TOYOTA:REFER 35-01
main35675-48410i202008
T=4.0,MARK 4,TYPE A:REFER 35-01
main35675-48410i201804-202008
T=4.0,MARK 4,TOYOTA:REFER 35-01
main35675-48420i201804-202008
T=4.1,MARK 5,TOYOTA:REFER 35-01
main35675-48420i202008
T=4.1,MARK 5,TYPE A:REFER 35-01
main35675-48430i202008
T=4.2,MARK 6,TYPE A:REFER 35-01
main35675-48430i201804-202008
T=4.2,MARK 6,TOYOTA:REFER 35-01
35698ABALANCER, C-2 CLUTCH
main35698-33010i202008
TYPE B:REFER 35-01,TYPE A:REFER 35-01
main35698-48020i201804-202008
3569ARING, CLUTCH DRUM TOLERANCE
main3569A-33010i202008
TYPE B:REFER 35-01,TYPE A:REFER 35-01
35708GSHAFT SUB-ASSY, INTERMEDIATE
main35708-06030i202008-202107
TYPE B:REFER 35-01
main35708-06030i201804-202008
TMMWV:REFER 35-01
main35708-0R010i202008
TYPE B:REFER 35-01
main35708-33070i202008
TYPE A:REFER 35-01
main35708-48041i201804-202008
TOYOTA:REFER 35-01
main35708-48041i202008
TYPE A:REFER 35-01
35708LRING, O (FOR INTERMEDIATE SHAFT)
main90301-45007i202008
T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1
main90301-45008i202008
T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2
main90301-47008i202008
T/P A:SEE 35-01,NO.1
main90301-47008i201804-202008
NO.1,TMC:REFER 35-01
main90301-50004i201804-202008
NO.2,TMC:REFER 35-01
main90301-50004i202008
T/P A:SEE 35-01,NO.2
main90301-A0069i202008-202107
T/P B:SEE 35-01,NO.2
main90301-A0069i201804-202008
NO.2,TMMWV:SEE 35-01
main90301-A0070i201804-202008
NO.1,TMMWV:SEE 35-01
main90301-A0070i202008-202107
T/P B:SEE 35-01,NO.1
35786ARACE, THRUST BEARING, NO.1
main35786-06020i202008
TYPE B:REFER 35-01
main35786-33020i202008
TYPE A:REFER 35-01
main35786-48020i201804-202008
35787CRACE, THRUST BEARING, NO.2
main35787-06020i202008
TYPE B:REFER 35-01
main35787-33030i202008
TYPE A:REFER 35-01
main35787-48030i201804-202008

28 parts on this diagram · 2 diagrams in section

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM) — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
