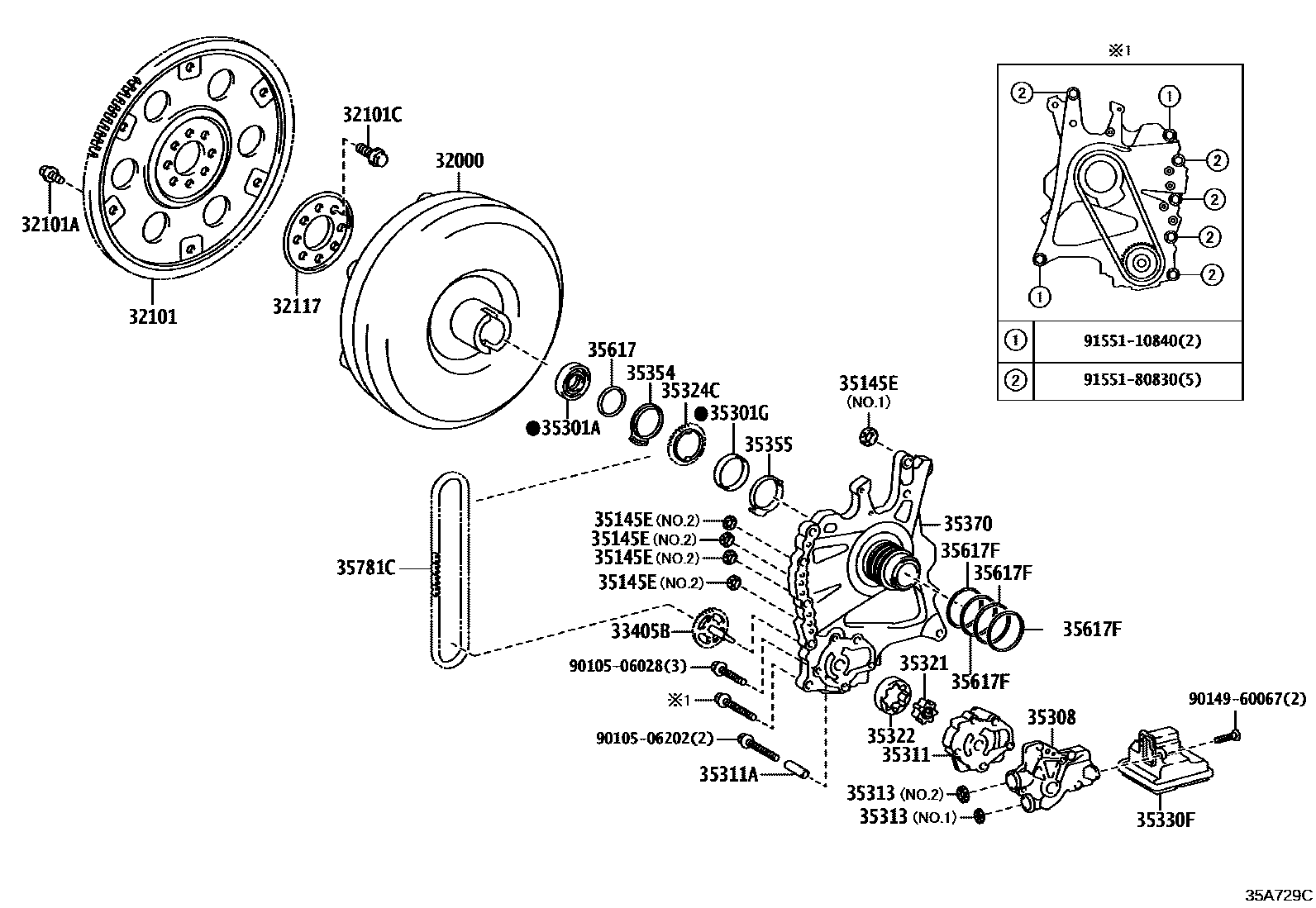

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1UB80F,TYPE A 0002 1UB80F,TYPE B 0003 1UA80E 0004 1UA80E

32000CONVERTER ASSY, TORQUE

main32000-06060iAXXA55202008

TYPE B:REFER 35-01

main32000-06070iGSX50201804-202008

(L)

main32000-33180iAXXA55¥86,400202008

TYPE A:REFER 35-01

main32000-48060iGSX50¥86,400201804-202008

(J)

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06070iAXXA55202008-202107

(L)

main32101-0E010iGSX50201804-202108

(L)

main32101-33020iAXXA55¥13,400202008-202107

(J)

main32101-48010iGSX50¥13,400201804-202108

(J)

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iGSX50¥80201804-202107

*9-1.25PX12.4-7.3,BLACK

main90119-09025iGSX50¥80201804-202107

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iGSX50..XSE¥130201804-202108

*10-1.25PX18-13

main90105-12404iAXXA55¥100202008-202107

*12-1.25PX20.3-14.3

32117SPACER, DRIVE PLATE, REAR

main32117-02030iAXXA55202008-202107

(L)

main32117-32020iGSX50¥730201804-202108

main32117-33010iAXXA55¥920202008-202107

(J)

33405BSHAFT SUB-ASSY, OIL PUMP DRIVE

main33405-06010iGSX50..XSE202008-202107

TYPE B:REFER 35-01

main33405-06010iGSX50201804-202008

TMMWV:REFER 35-01

main33405-48010iGSX50¥1,110201804-202008

TOYOTA:REFER 35-01

main33405-48010iAXXA55,GSX50¥1,110202008

TYPE A:REFER 35-01

35145EGASKET, TRANSAXLE CASE

main35145-07010iGSX50201804-202008

NO.1,TMMWV:SEE 35-01

main35145-07010iGSX50202008-202102

T/P B:SEE 35-01,NO.1

main35145-33010iAXXA55,GSX50¥360202008-202102

T/P B:SEE 35-01,NO.1

main35145-33010iGSX50¥360201804-202008

NO.1,TMC:REFER 35-01

main35145-33010iAXXA55¥360202008-202102

T/P A:SEE 35-01,NO.1

main35145-33020iAXXA55,GSX50¥340202103-202107

T/P B:SEE 35-01,NO.1

main35145-33020iAXXA55,GSX50..LIMD,TOU,XLE¥340202103

T/P A:SEE 35-01,NO.1

main35145-33040iAXXA55,GSX50¥340202103-202107

T/P B:SEE 35-01,NO.2

main35145-33040iAXXA55,GSX50¥340202103

T/P A:SEE 35-01,NO.2

main35145-48030iGSX50¥400201804-202008

NO.2,TMC:REFER 35-01,NO.2,TMMWV:SEE 35-01

main35145-48030iAXXA55,GSX50¥400202008-202102

T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-51013iAXXA55,GSX50¥470201804-202008

35301GBEARING,NEEDLE ROLLER

main90364-51004iGSX50¥890201804-202008

35308COVER SUB-ASSY, FRONT OIL PUMP

main35308-06010iAXXA55,GSX50..LIMD,TOU,XLE202008-202107

TYPE B:REFER 35-01

main35308-06010iGSX50201804-202008

TMMWV:REFER 35-01

main35308-48110iGSX50201804-202008

TOYOTA:REFER 35-01

main35308-48110iAXXA55,GSX50202008

TYPE A:REFER 35-01

35311BODY, FRONT OIL PUMP

main35311-06030iGSX50..XSE202008-202107

TYPE B:REFER 35-01

main35311-06030iGSX50201804-202008

TMMWV:REFER 35-01

main35311-48040iAXXA55,GSX50¥5,900202008

TYPE A:REFER 35-01

main35311-48040iGSX50¥5,900201804-202008

TOYOTA:REFER 35-01

35311APIN, RING

main90253-09004iAXXA55,GSX50¥90202008

TYPE A:REFER 35-01

main90253-09005iGSX50..XSE¥90202008-202107

TYPE B:REFER 35-01

35313GASKET, FRONT OIL PUMP COVER

main35313-48020iAXXA55¥40202008

T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1

main35313-48020iGSX50¥40201804-202008

NO.1

main35313-48030iAXXA55¥60202008

T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2

main35313-48030iGSX50¥60201804-202008

NO.2

35321GEAR, FRONT OIL PUMP DRIVE

main35321-06160iGSX50..XSE202008-202107

T=16.66,TYPE B:REFER 35-01

main35321-06160iGSX50201804-202008

T=16.66,TMMWV:REFER 35-01

main35321-48110iGSX50¥2,490201804-202008

T=16.66,TOYOTA:REFER 35-01

main35321-48110iAXXA55,GSX50¥2,490202008

T=16.66,TYPE A:REFER 35-01

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-06160iGSX50201804-202008

T=16.66,TMMWV:REFER 35-01

main35322-06160iGSX50..XSE202008-202107

T=16.66,TYPE B:REFER 35-01

main35322-48110iGSX50¥2,490201804-202008

T=16.66,TOYOTA:REFER 35-01

main35322-48110iAXXA55,GSX50¥2,490202008

T=16.66,TYPE A:REFER 35-01

35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE

main35324-06010iGSX50..XSE202008-202107

TYPE B:REFER 35-01

main35324-06010iGSX50201804-202008

TMMWV:REFER 35-01

main35324-48040iGSX50¥970201804-202008

TOYOTA:REFER 35-01

main35324-48040iAXXA55,GSX50¥970202008

TYPE A:REFER 35-01

35330FSTRAINER ASSY, OIL

main35330-06020iAXXA55,GSX50..LIMD,TOU,XLE202008-202107

TYPE B:REFER 35-01

main35330-06020iGSX50201804-202008

TMMWV:REFER 35-01

main35330-48040iGSX50¥3,580201804-202008

TOYOTA:REFER 35-01

main35330-48040iAXXA55,GSX50¥3,580202008

TYPE A:REFER 35-01

35354WASHER, OIL PUMP SPROCKET THRUST, FRONT

main35354-48010iGSX50¥400201804-202008

35355WASHER, OIL PUMP SPROCKET THRUST, REAR

main35355-48010iGSX50¥750201804-202012

main35355-48011iAXXA55,GSX50¥550202012

35370SHAFT ASSY, STATOR

main35370-06040iGSX50..XSE202008-202107

TYPE B:REFER 35-01

main35370-06040iGSX50201804-202008

TMMWV:REFER 35-01

main35370-33070iAXXA55¥14,900202008

TYPE A:REFER 35-01

main35370-48040iGSX50¥14,900201804-202008

TOYOTA:REFER 35-01

main35370-48040iGSX50¥14,900202008

TYPE A:REFER 35-01

35617RING, CLUTCH DRUM OIL SEAL

main35617-48050iGSX50¥200202008

TYPE B:REFER 35-01,TYPE A:REFER 35-01

main35617-48050iGSX50¥200201804-202008

35617FRING, CLUTCH DRUM OIL SEAL

main35617-33020iAXXA55¥200202008

main35617-48060iGSX50¥220201804-202008

35781CCHAIN, TRANSMISSION DRIVE

main35781-06010iGSX50..LIMD,TOU,XLE202008

TYPE B:REFER 35-01

main35781-06010iGSX50201804-202107

(L)

main35781-48020iAXXA55¥4,600202008

TYPE A:REFER 35-01

main35781-48020iGSX50¥4,600201804-202008

(J)

9010506028

main90105-06028¥80

9010506202

main90105-06202¥90

9014960067

main90149-60067¥80

9155110840

main91551-10840¥80

9155180830

main91551-80830¥80
