EXHAUST PIPE

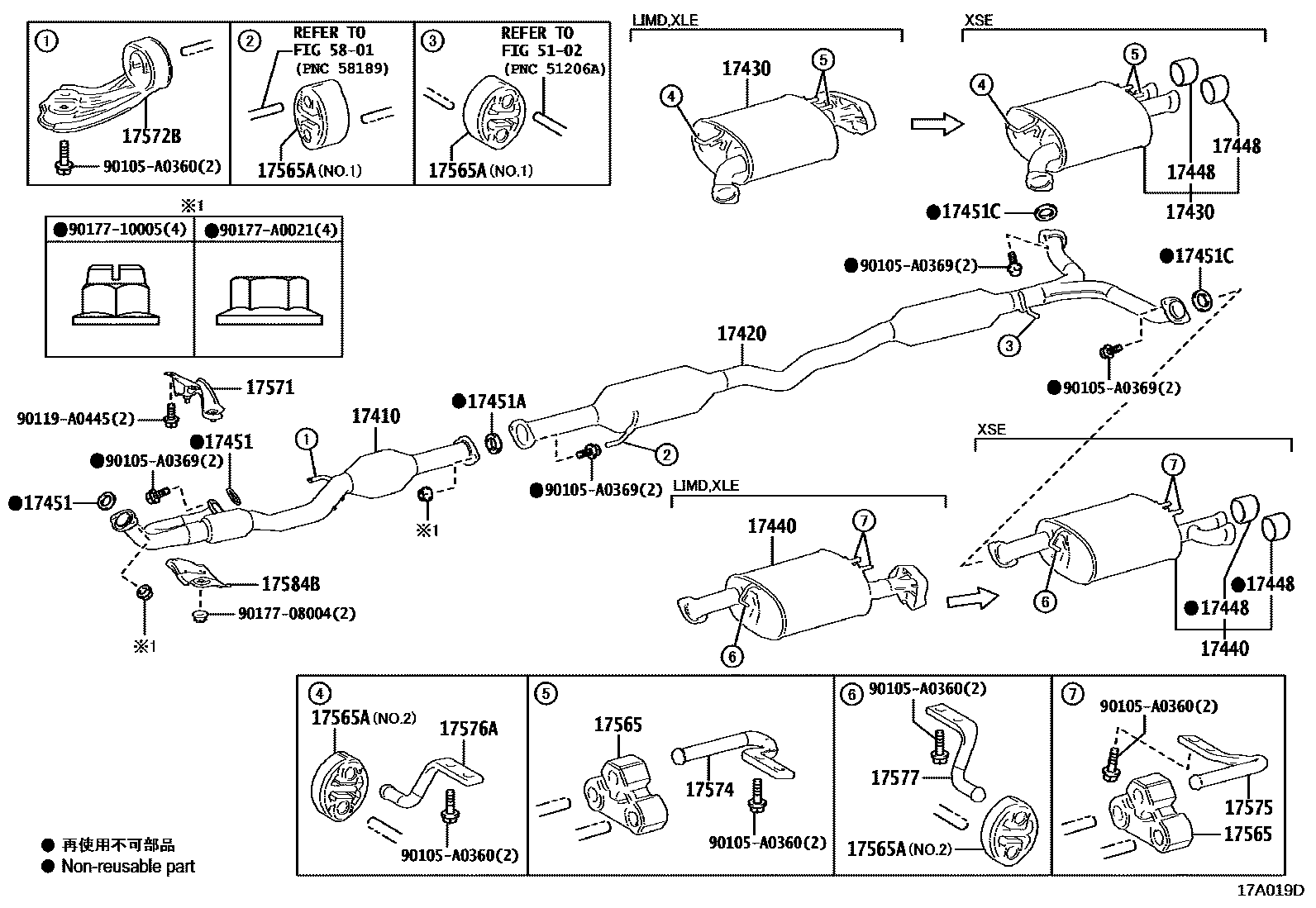

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
main17410-0P380i201804-202008
main17410-0P650i202008-202107
main17410-F0020i201805-202002
sub17410-F0021
main17410-F0021i202003-202008
main17410-F0451i202008-202107
17420PIPE ASSY, EXHAUST, CENTER
main17420-0P500i201804-201902
TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER
sub17420-0P501
main17420-0P500i201804-201902
TRD PACKAGE
sub17420-0P501
main17420-0P501i201903-202008
TRD PACKAGE
main17420-0P501i202008-202107
main17420-0P501i201903-202008
TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER
main17420-0P510i201804-201902
AUDIO-9INCH DISPLAY & 14SPEAKER
sub17420-0P511
main17420-0P511i201903-202008
main17420-F0131i201805-202008
main17420-F0160i202008-202107
17430PIPE ASSY, EXHAUST, TAIL
main17430-0P420i201804-202002
TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER
sub17430-0P421
main17430-0P420i201804-202002
TRD PACKAGE
sub17430-0P421
main17430-0P421i202008-202107
main17430-0P421i202003-202008
TRD PACKAGE
main17430-0P421i202003-202008
TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER
main17430-0P570i201804-201903
sub17430-0P571
main17430-0P571i201904-201906
sub17430-0P572
main17430-0P572i201907-202002
sub17430-0P573
main17430-0P573i202003-202008
main17430-0P580i201804-202002
sub17430-0P581
main17430-0P581i202008
main17430-0P581i202003-202008
AUDIO-9INCH DISPLAY & 14SPEAKER
main17430-F0411i202008-202107
17440PIPE, EXHAUST TAIL, LH
main17440-0P170i201804-201903
sub17440-0P171
main17440-0P171i201904-201906
sub17440-0P172
main17440-0P172i201907-202002
sub17440-0P173
main17440-0P173i202003-202008
main17440-0P180i201804-202002
sub17440-0P181
main17440-0P181i202003-202008
AUDIO-9INCH DISPLAY & 14SPEAKER
main17440-0P181i202008
main17440-0P200i201804-202002
TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER
sub17440-0P201
main17440-0P200i201804-202002
TRD PACKAGE
sub17440-0P201
main17440-0P201i202003-202008
TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER
main17440-0P201i202003-202008
TRD PACKAGE
main17440-0P201i202008-202107
main17440-F0120i201805-202002
sub17440-F0121
main17440-F0121i202003-202008
main17440-F0171i202008-202107
17448BAFFLE, TAILPIPE
main17448-31160i202008-202107
main17448-31160i201804-202008
TRD PACKAGE
main17448-31160i201804-202008
TRD PACKAGE&AUDIO-9INCH DISPLAY & 14SPEAKER
17451GASKET, EXHAUST PIPE
main90080-43036i201804-202107
(L)
main90917-06089i201804-202107
(J)
main90917-A6002i201805-202107
17451AGASKET, EXHAUST PIPE, NO.2
main90917-A6003i202008-202107
main90917-A6004i201804-202107
17451CGASKET, EXHAUST PIPE, NO.3
main90917-A6003i201804-202107
17565SUPPORT, EXHAUST PIPE, NO.5
main17566-F0010i201804-202107
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-0P041i201804-202107
NO.1
main17565-0P051i201804-202107
NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
main17571-0P250i201804-202107
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
main17572-0P170i201804-202107
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
main17574-0P140i201804-202107
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
main17575-0P200i201804-202107
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
main17576-0P110i201804-202107
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
main17577-0P050i201804-202107
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
main17584-0P150i201910-202107
(L)
sub17584-31050
main17584-0P150i201804-202001
sub17584-31050
main17584-31050i201910-202107
(J)
5102
5801
90105A0360
main90105-A0360
90105A0369
main90105-A0369
90119A0445
main90119-A0445
9017708004
main90177-08004
9017710005
main90177-10005
90177A0021
main90177-A0021

25 parts on this diagram · 4 diagrams in section
