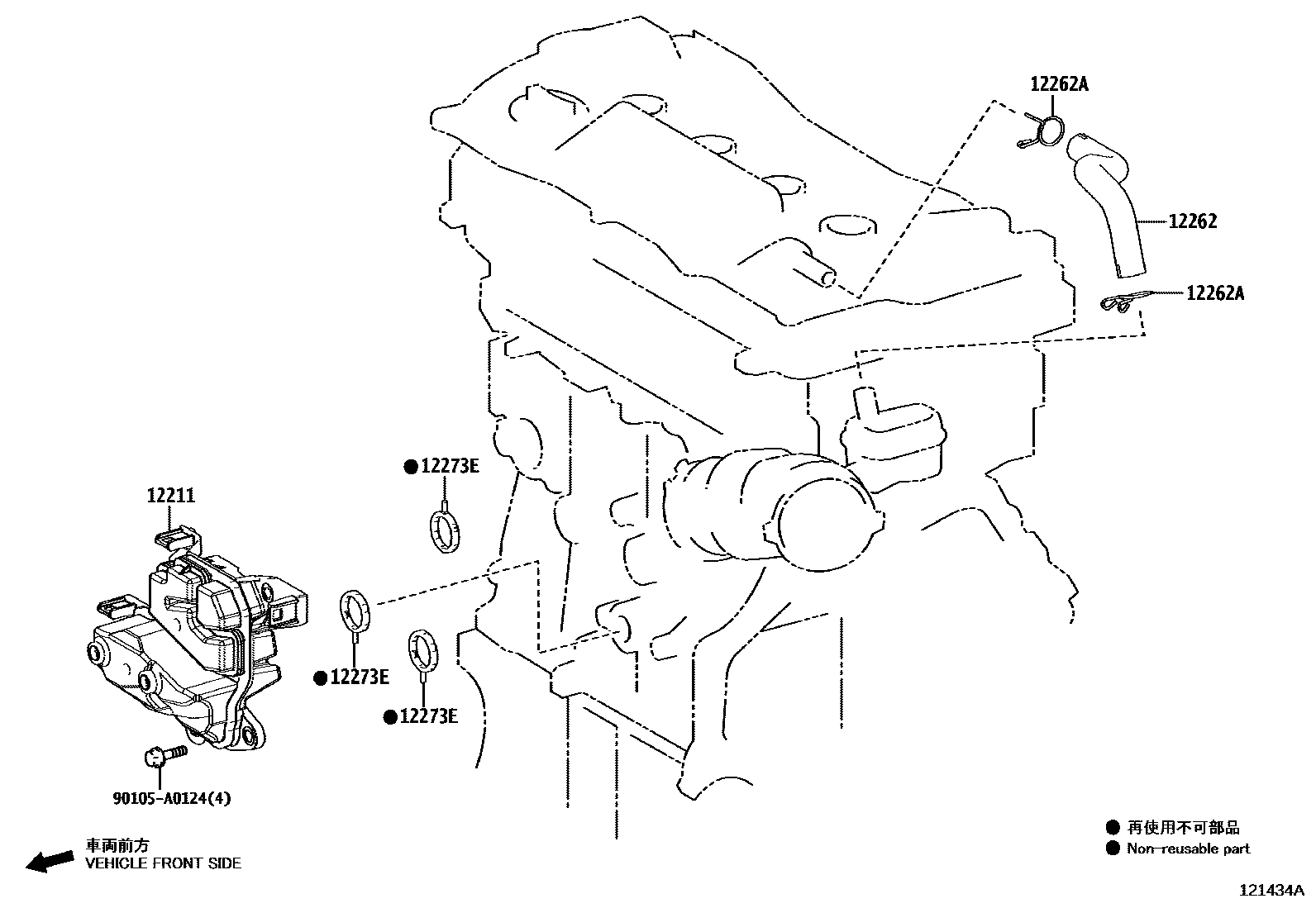

VENTILATION HOSE

0001 1 0002 1 0003 1

12211CASE, VENTILATION, NO.1

main12211-F0010iA25AFXS..AXXH50201805-202008

sub12211-F0011

main12211-F0011iA25AFKS..AXXA55202008-202208

12262HOSE, VENTILATION, NO.2

main12262-25030iA25AFKS..AXXA55202008-202107

main12262-25040iA25AFXS..AXXH51201805-202008

main12262-31190i2GRFKS..GSX50201804-202107

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-A0028iA25AFKS..AXXA55201804-202107

(L)

main90467-21004i2GRFKS..GSX50201804-202107

(J)

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25AFXS..AXXH51201805-202208

90105A0124

main90105-A0124

5 parts on this diagram · 3 diagrams in section
