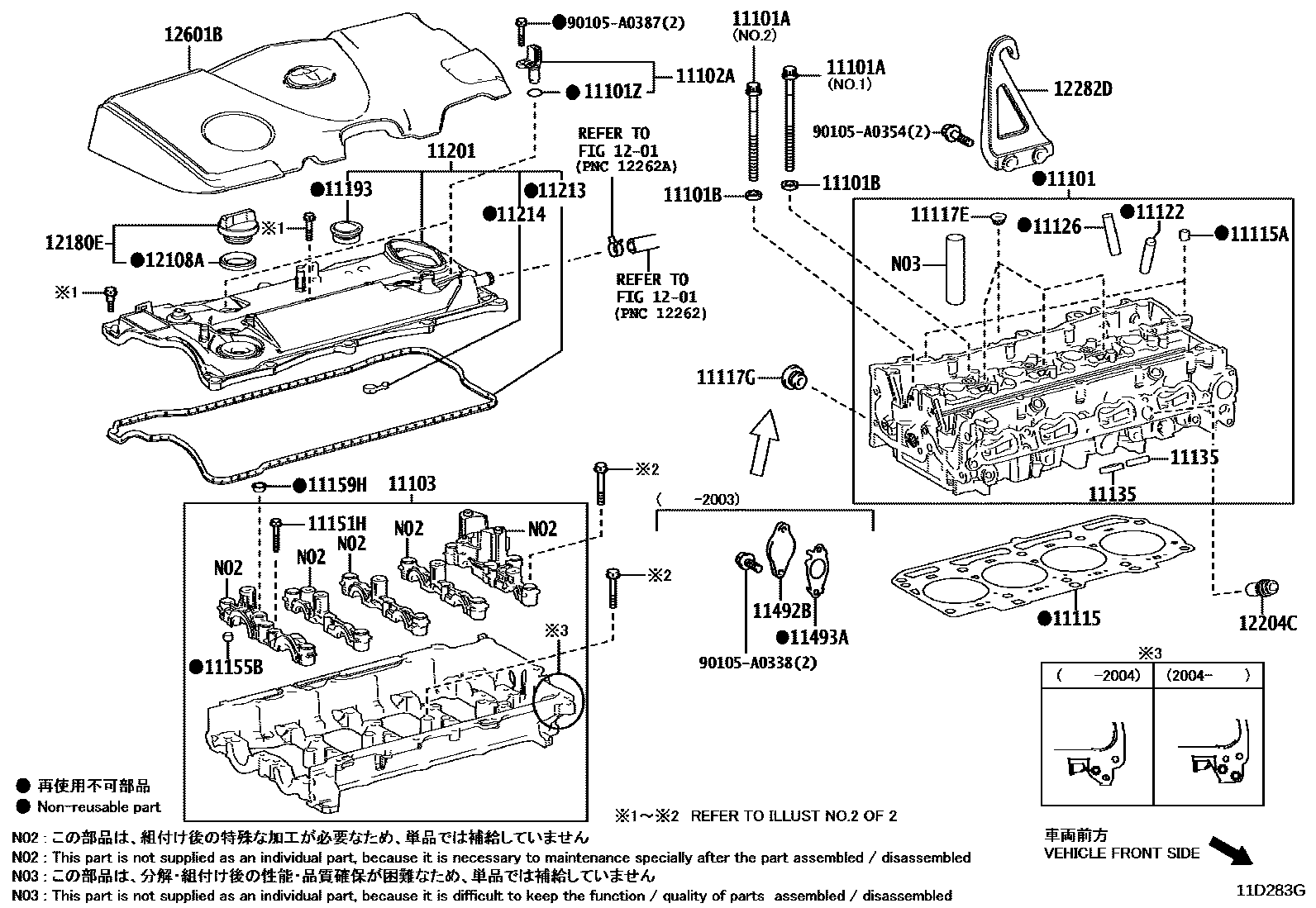

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(J)
(L)
(L)
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD
STD,(L)
STD,(J)
STD
STD,(J)
STD,(L)
O/S 0.03
O/S 0.03,(L)
O/S 0.03
O/S 0.03,(J)
O/S 0.03
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155BPIN, RING
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11492BPLATE, WATER SEAL
11493AGASKET, WATER SEAL PLATE
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12282DHANGER, ENGINE, NO.2
90105A0338
main90105-A0338
90105A0354
main90105-A0354
90105A0387
main90105-A0387
33 parts on this diagram · 7 diagrams in section
