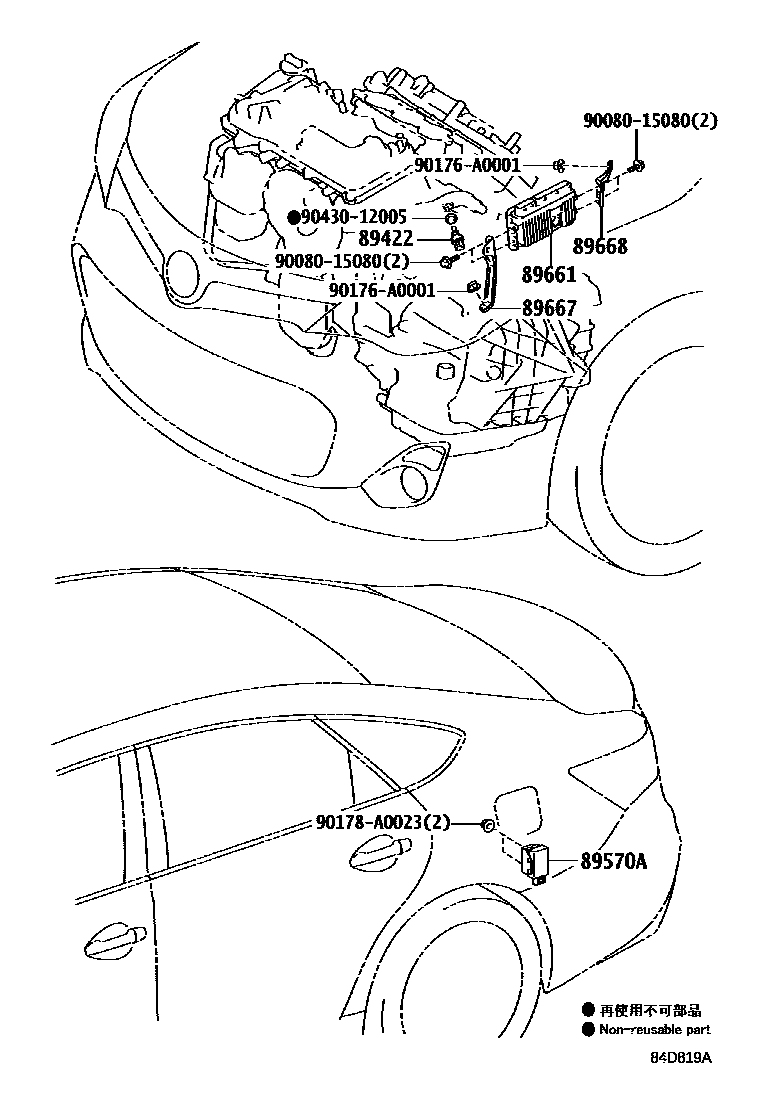

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAVX40,GSX40201210-201510

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-33010iGSX40201210-201302

sub89570-33040

main89570-33040iGSX40201303-201510

89661COMPUTER, ENGINE CONTROL

main89661-07530iGSX40201410-201510

sub89661-07531

main89661-07550iGSX40201510-201702

sub89661-07551

main89661-07551iGSX40201703

DENSO

main89661-07560iAVX40201211-201410

sub89661-07561

main89661-07590iGSX40201210-201211

sub89661-07591

main89661-07591iGSX40201211-201410

main89661-07620iAVX40201410-201510

main89661-07640iAVX40201510-201609

sub89661-07641

main89661-07641iAVX40201610-201611

sub89661-07642

main89661-07642iAVX40201612

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-06120iAVX40,GSX40201210-201510

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06120iAVX40,GSX40201210-201510

9008015080

main90080-15080

90176A0001

main90176-A0001

90178A0023

main90178-A0023

9043012005

main90430-12005

9 parts on this diagram · 2 diagrams in section
