SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1STEERING 0011 1SEAT 0012 1DOOR & ROOF 0013 1FLOOR & LUGGAGE

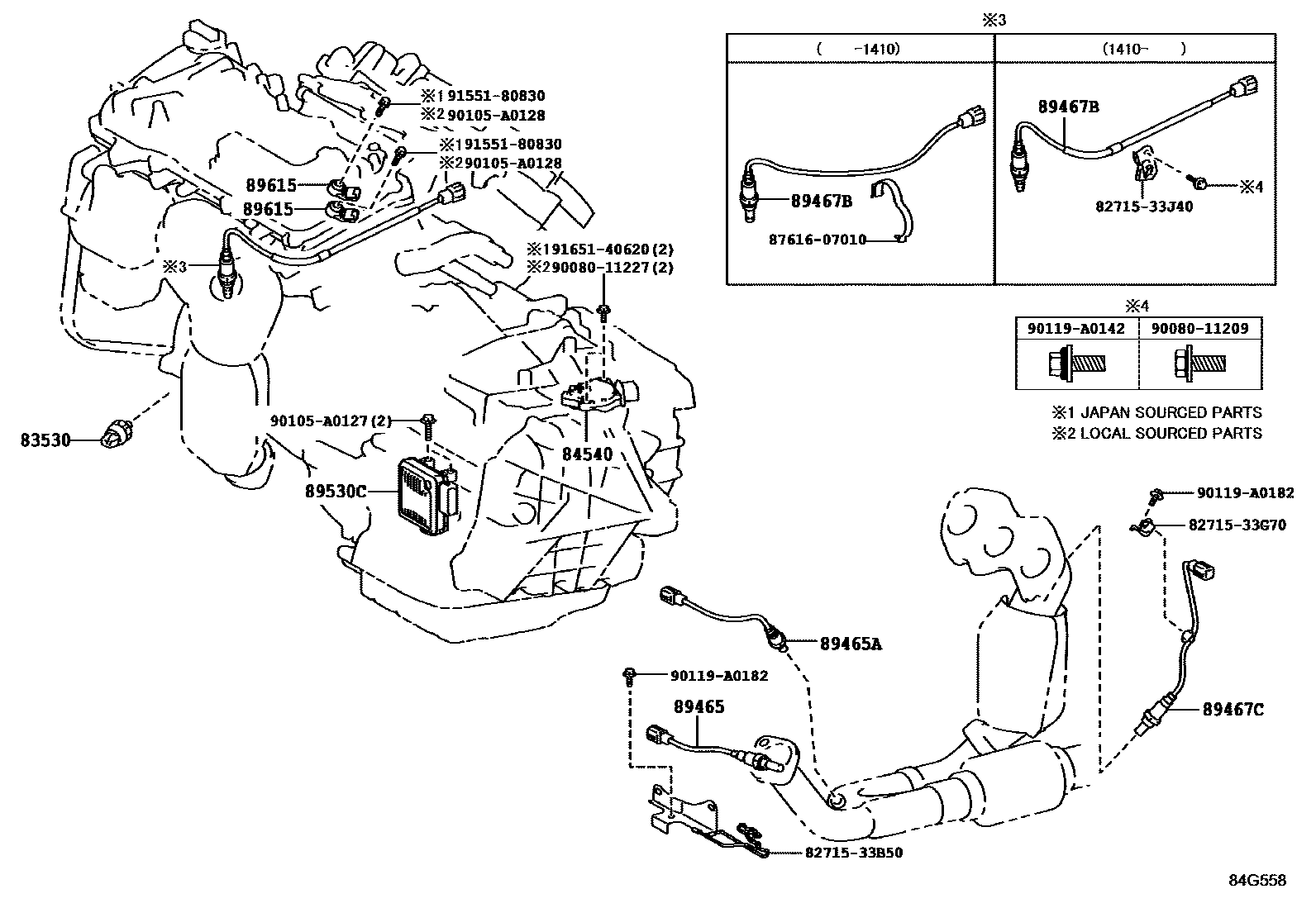

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iAVX40,GSX40201210-201510

(L)

main83530-28020iAVX40,GSX40201210-201510

(J)

84540SWITCH ASSY, NEUTRAL START

main84540-07010iGSX40201210-201510

(L)

main84540-33010iGSX40201210-201510

(J)

89465SENSOR, OXYGEN

main89465-06250iGSX40201210-201410

main89465-06260iAVX40201211-201510

main89465-06320iGSX40201410-201510

89465ASENSOR, OXYGEN NO.2

main89465-06330iGSX40201410-201510

main89465-07080iGSX40201210-201410

89467BSENSOR, AIR FUEL RATIO

main89467-06120iAVX40201211-201510

main89467-06130iGSX40201210-201410

main89467-0E190iGSX40201410-201510

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06140iGSX40201210-201410

main89467-06190iGSX40201410-201510

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-07070iGSX40201210-201302

sub89530-07071

main89530-07071iGSX40201303-201510

main89530-07110iGSX40201510

89615SENSOR, KNOCK CONTROL

main89615-06010iGSX40201210-201510

(L)

main89615-20090iAVX40201211-201510

main89615-20090iAVX40201210-201510

(J)

8271533B50BRACKET,WIRING HARNESS CLAMP

main82715-33B50

8271533G70BRACKET,WIRING HARNESS CLAMP

main82715-33G70

8271533J40BRACKET,WIRING HARNESS CLAMP

main82715-33J40

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

9008011209

main90080-11209

9008011227

main90080-11227

90105A0127

main90105-A0127

90105A0128

main90105-A0128

90119A0142

main90119-A0142

90119A0182

main90119-A0182

9155180830

main91551-80830

9165140620

main91651-40620

20 parts on this diagram · 13 diagrams in section
