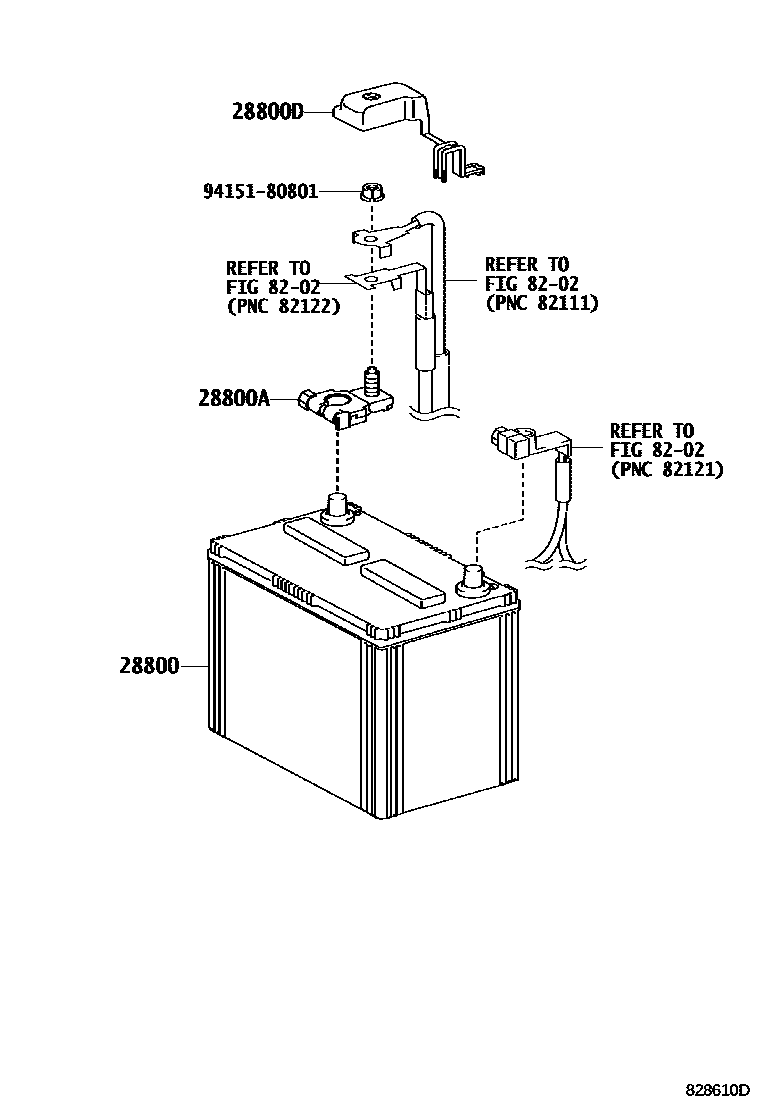

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-03044i2GRFE..GSX40201210-201603

80D26L,JOHNSON CONTROLS

sub28800-54020

main28800-28100i2ARFXE..AVX40..LIMD201510

S55D23R,MAYDAY SYSTEM-WITHOUT

sub28800-28101

main28800-28100i2ARFXE..AVX40201211-201510

S55D23R

sub28800-28101

main28800-36050i2ARFXE..AVX40201211-201510

S65D26R,MAYDAY SYSTEM-WITH

sub28800-36051

main28800-36050i2ARFXE..AVX40..LIMD201510

S65D26R

sub28800-36051

main28800-AA041i2GRFE..GSX40201210-201510

80D26L,EXIDE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFE..GSX40201210-201510

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i2GRFE..GSX40201210-201510

8202

9415180801

main94151-80801

5 parts on this diagram · 5 diagrams in section
