INTERIOR LAMP
6402
7401
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230BBULB(FOR COURTESY LAMP)
12V 5W
81249SWITCH, ROOM LAMP
81260CBULB(FOR MAP LAMP)
12V 6W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81340BBULB (FOR VANITY LAMP)
14V 1.4W
81360TLAMP ASSY, SPOT
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
81360UBULB, SPOT LAMP
81362BLENS, INTERIOR ILLUMINATION LAMP
FRONT RH
FRONT LH
REAR RH
REAR LH
81362CLENS, INTERIOR ILLUMINATION LAMP, RH
81362DLENS, INTERIOR ILLUMINATION LAMP, LH
81391DHOLDER, LAMP BULB
RH
LH
8202

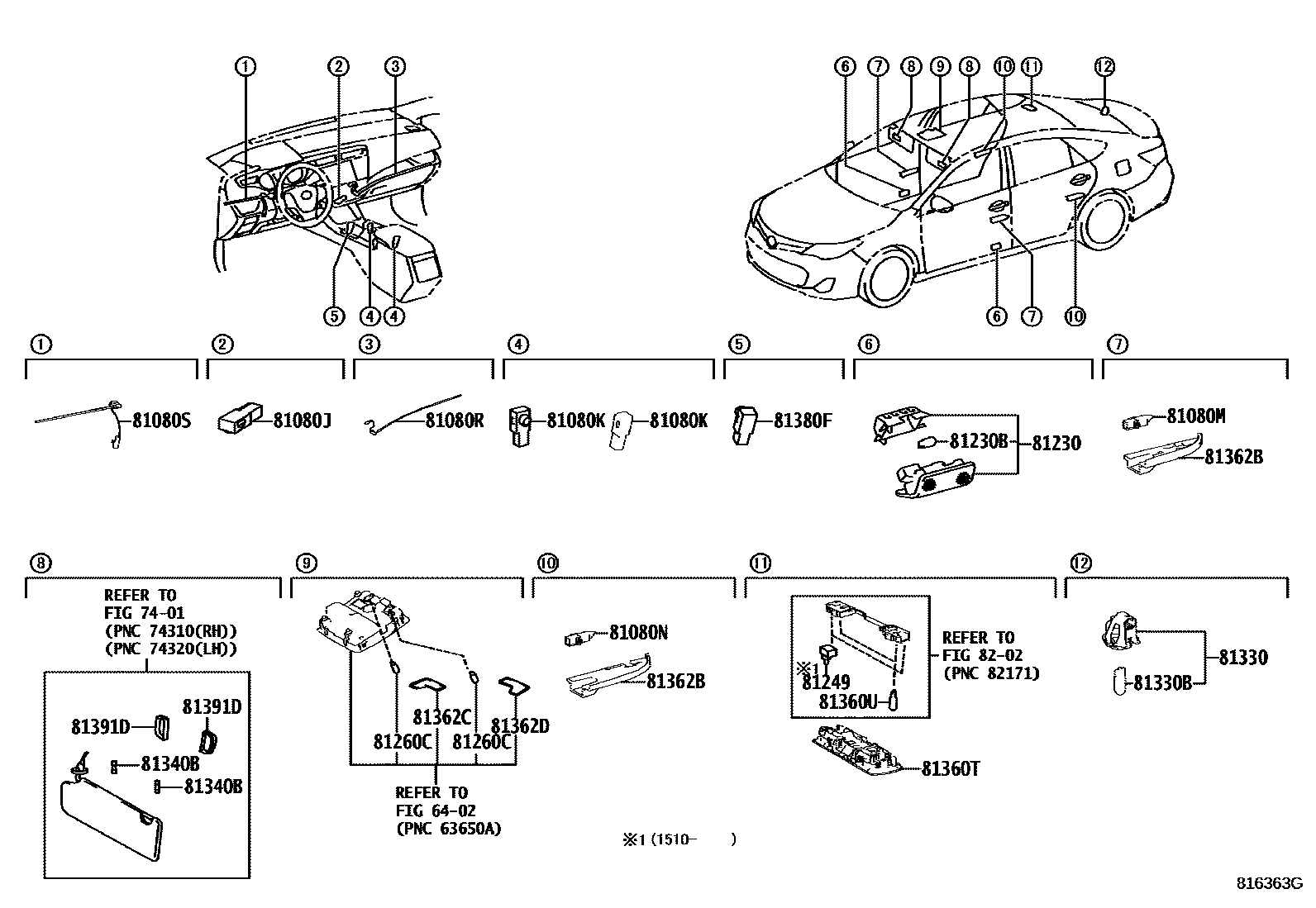

23 parts on this diagram · 1 diagram in section
