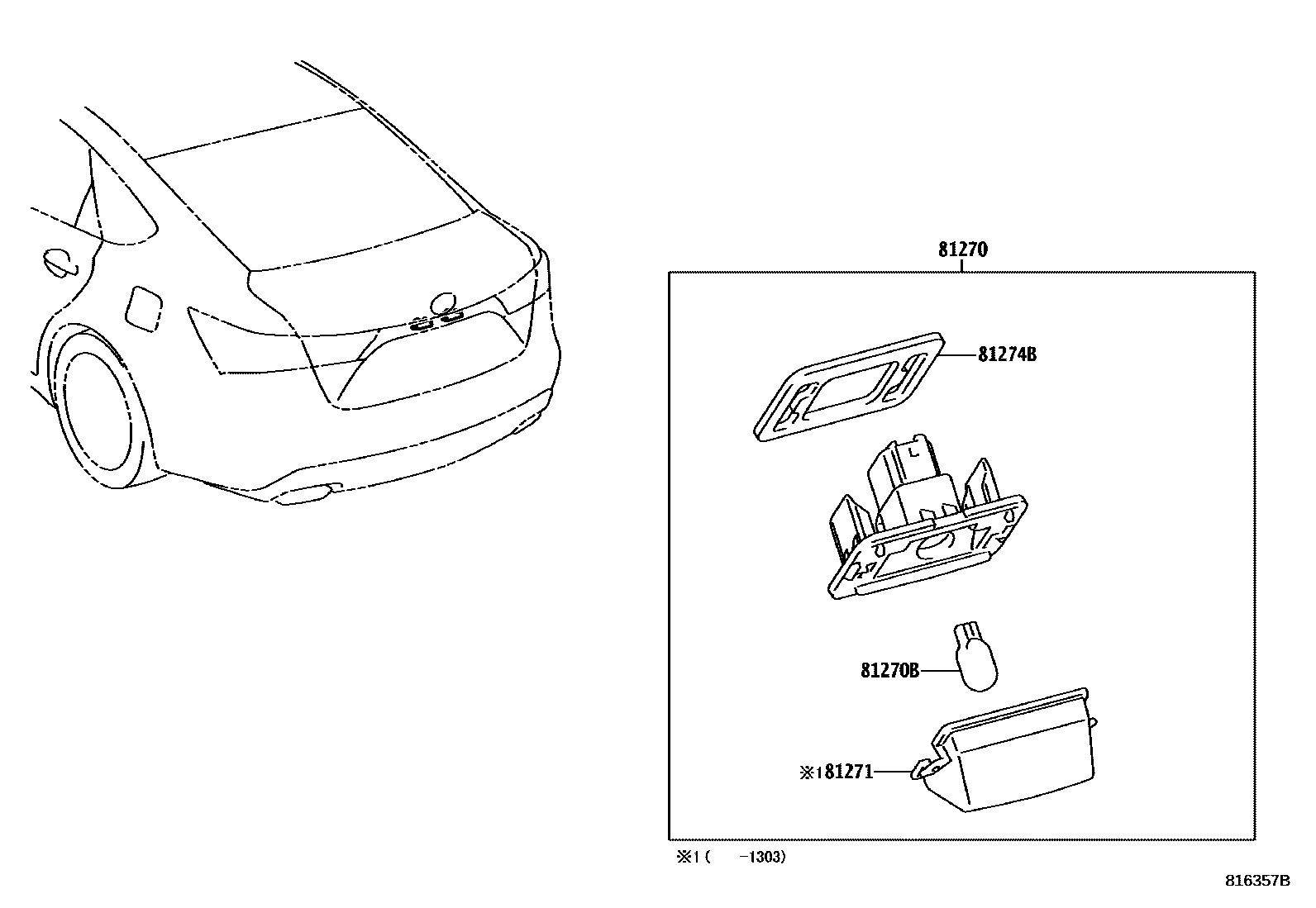

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-06030iAVX40,GSX40201210-201302

sub81270-06031

main81270-06031iAVX40,GSX40201303-201510

main81270-33110iAVX40,GSX40201510

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iAVX40,GSX40201210-201510

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-06030iAVX40,GSX40201210-201303

81274BPACKING, LICENSE PLATE LAMP

main81272-06031iAVX40,GSX40201303-201510

main81274-06030iAVX40,GSX40201210-201303

4 parts on this diagram · 2 diagrams in section
