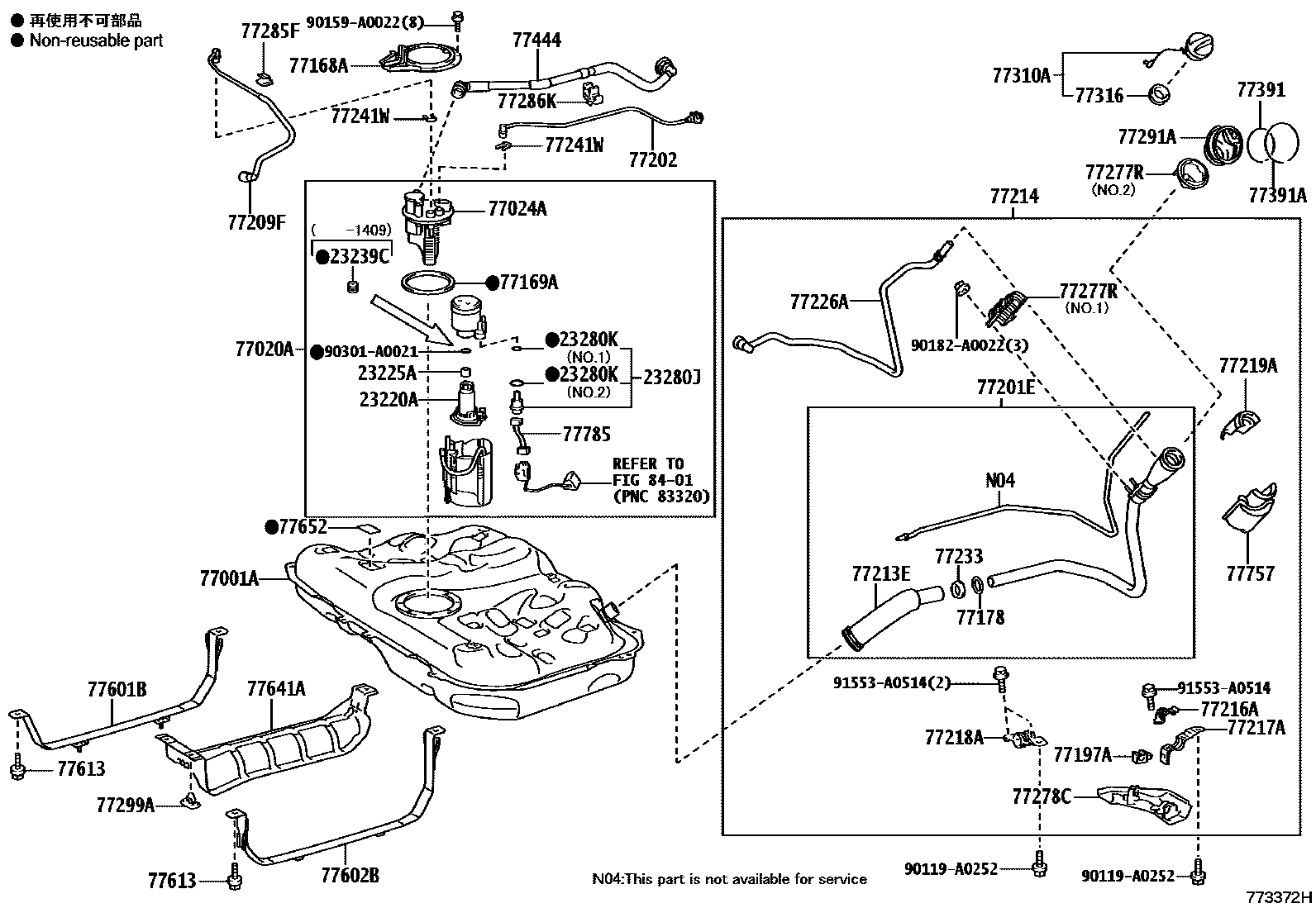

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23239CSEAL, FUEL PUMP FILTER
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77001ATANK SUB-ASSY, FUEL
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
sub77020-06297
sub77020-06296
sub77020-06297
sub77020-06305
sub77020-06306
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77202TUBE SUB-ASSY, BREATHER
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77219ACOVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77233JOINT, FUEL HOSE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
NO.1
NO.2
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77285FCLAMP, FUEL TUBE, NO.1
77286KCLAMP, FUEL TUBE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77444HOSE, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
(J)
(L)
77641APROTECTOR, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77757FILTER, CHARCOAL CANISTER, NO.4
8401
90119A0252
main90119-A0252
90159A0022
main90159-A0022
90182A0022
main90182-A0022
90301A0021
main90301-A0021
91553A0514
main91553-A0514
48 parts on this diagram · 5 diagrams in section
