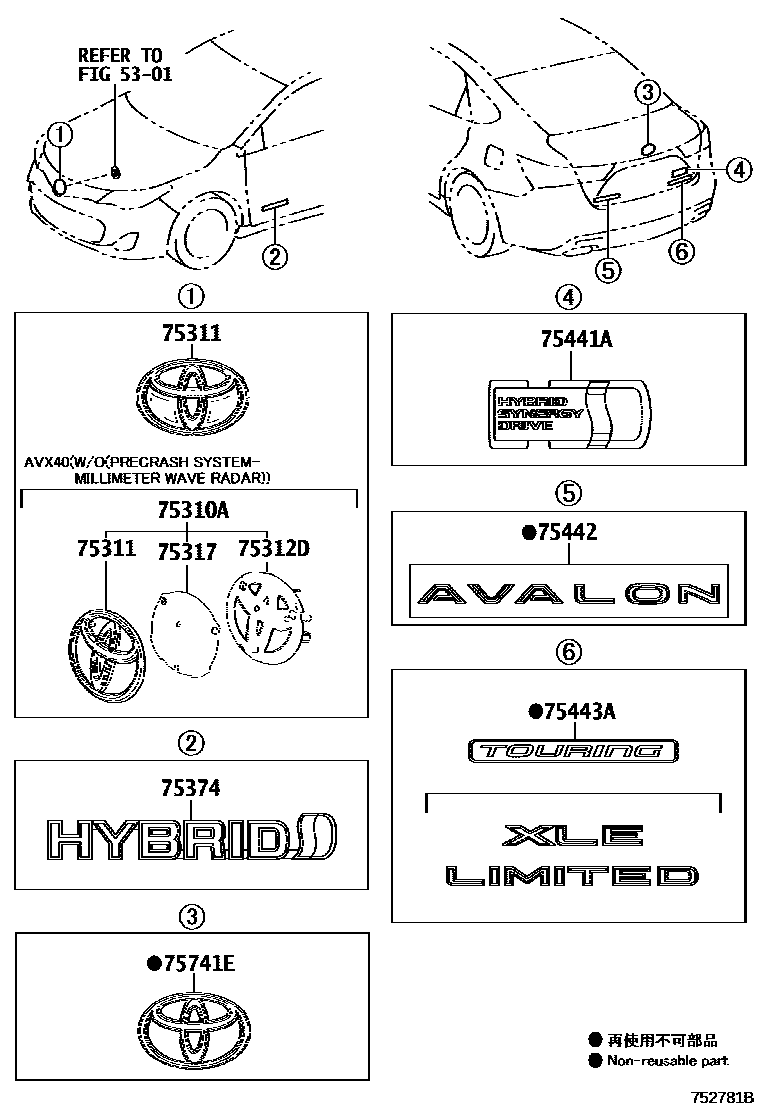

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301

75310AEMBLEM ASSY, RADIATOR GRILLE

main75310-47010iAVX40201211-201510

main75310-47060iAVX40201510

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-07010iGSX40..LIMD201210-201501

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main53141-0W010iGSX40..LIMD201502-201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main53141-42020iGSX40..LIMD201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

sub53141-42021

main53141-42020iGSX40..XLEPR,XLETO201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-DISCHARGE & WITH(*LKA)

sub53141-42021

main53141-42020iGSX40..XLEPR,XLETO201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED & WITH(*LKA)

sub53141-42021

main53141-47011iAVX40..LIMD201502-201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main53141-47012iAVX40..LIMD201211-201501

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

sub53141-47011

main53141-47030iAVX40201510

CRUISE CONTROL-WITH(MICRO WAVE TYPE)

sub53141-47031

main75310-06010iGSX40201210-201510

main75310-07020iGSX40201510

main90975-02174iAVX40201211-201510

75312DBASE, RADIATOR GRILLE EMBLEM

main75311-47011iAVX40201211-201510

main75311-47020iAVX40201510

75317PLATE, RADIATOR GRILLE ORNAMENT

main75317-47010iAVX40201211-201510

75374EMBLEM, SIDE PANEL

main75374-33090iAVX40201211-201510

RH

main75374-33100iAVX40201211-201510

LH

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-41010iAVX40201211-201510

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-07010iAVX40,GSX40201210-201510

AVALON

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-07050iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

XLE

main75443-07070iAVX40,GSX40..LIMD201210-201510

LIMITED

main75443-07090iGSX40..XLETO201510

TOURING

75741EEMBLEM, SYMBOL

main75403-07010iAVX40201301-201703

sub75403-07011

main75403-07011iAVX40201704

main75403-41010iAVX40201211-201212

sub75403-07010

main90975-02069iGSX40201210-201510

10 parts on this diagram · 1 diagram in section
