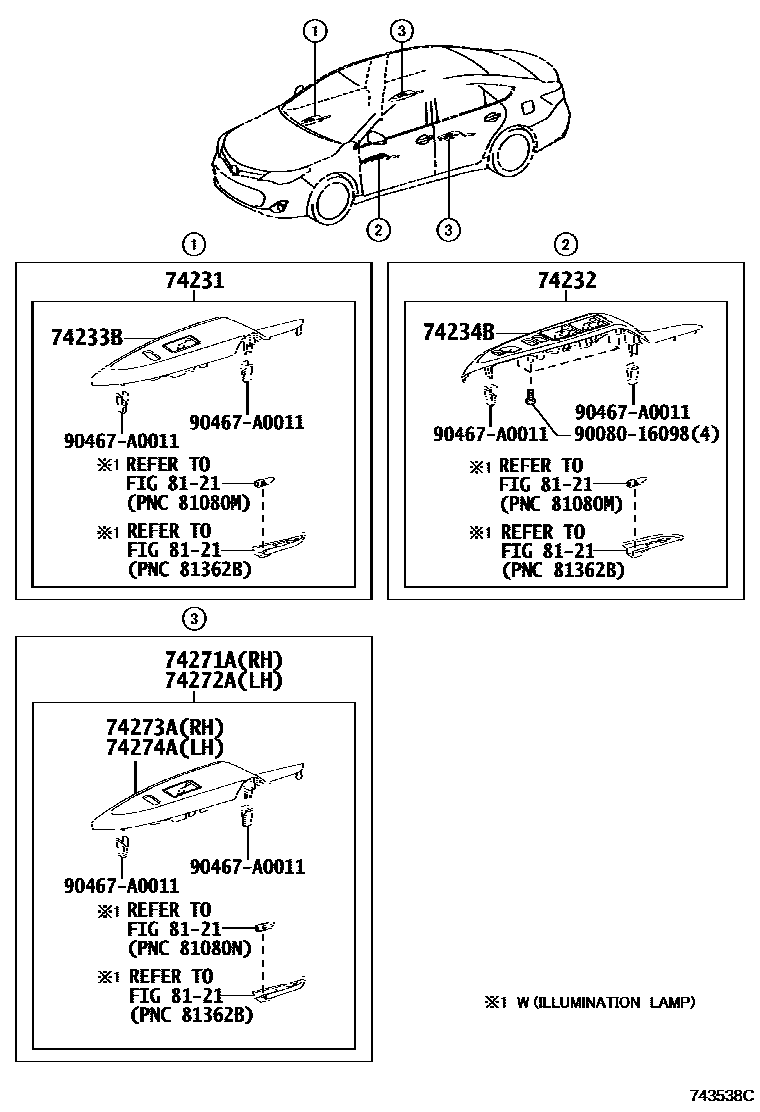

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-07030iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

main74231-07040iAVX40,GSX40..LIMD201210-201510

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-07030iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

main74232-07040iAVX40,GSX40..LIMD201210-201510

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-07010iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

main74233-07020iAVX40,GSX40..LIMD201210-201510

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-07010iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

main74234-07020iAVX40,GSX40..LIMD201210-201510

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-07030iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

main74271-07040iAVX40,GSX40..LIMD201210-201510

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-07030iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

main74272-07040iAVX40,GSX40..LIMD201210-201510

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-07010iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

main74273-07020iAVX40,GSX40..LIMD201210-201510

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-07010iAVX40,GSX40..XLE,XLEPR,XLETO201210-201510

main74274-07020iAVX40,GSX40..LIMD201210-201510

8121

9008016098

main90080-16098¥50

90467A0011

main90467-A0011

11 parts on this diagram · 2 diagrams in section
