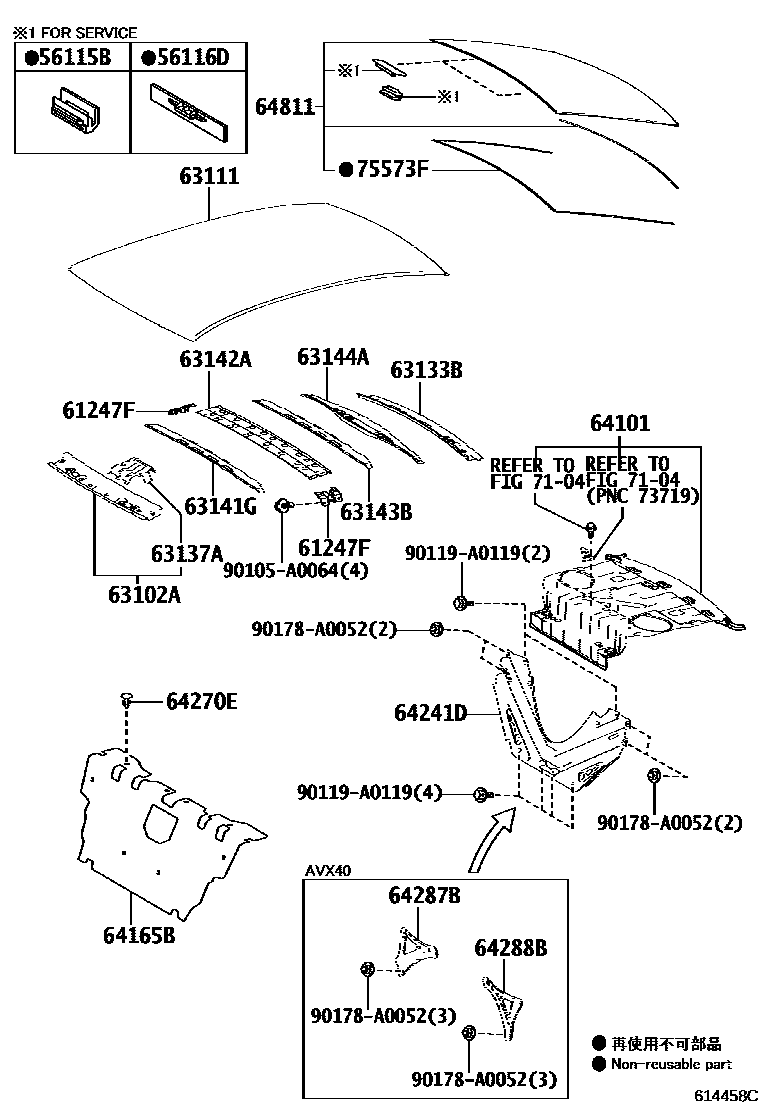

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL,WITH(NORMAL ROOF) 0002 1ROOF PANEL,WITH(MOON ROOF) 0003 1WITH(MOON ROOF)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAVX40,GSX40201210-201510

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAVX40,GSX40201210-201510

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-07060iAVX40,GSX40201210-201510

63111PANEL, ROOF

main63111-07040iAVX40,GSX40201210-201510

main63111-07050iGSX40..LIMD201210-201410

USA POSSESSION SPEC&AUDIO-*DA & 9SPEAKER & WITH(EXTENSION BOX)

main63111-07050iAVX40,GSX40..XLE,XLEPR201210-201410

KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER

63133BFRAME, BACK WINDOW

main63133-07020iAVX40,GSX40201210-201307

sub63133-07021

main63133-07021iAVX40,GSX40201308-201510

63137ABRACKET, DOME LAMP, NO.1

63141GREINFORCEMENT, ROOF PANEL, NO.1

63142AREINFORCEMENT, ROOF PANEL, NO.2

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-07020iAVX40,GSX40201210-201510

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63149-07010iAVX40,GSX40201210-201510

64101PANEL SUB-ASSY, UPPER BACK

main64101-07070iAVX40,GSX40201210-201510

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64166-07010iGSX40201210-201510

main64166-07020iAVX40201211-201510

64241DPANEL, ROOM PARTITION

main64241-07020iGSX40201210-201510

64270ECLIP

main90467-07049-23iAVX40201610

BLACK

sub90467-07049

main90467-07049-C0iAVX40201210-201610

BLACK

sub90467-07049

64287BREINFORCEMENT, ROOM PARTITION PANEL TO UPPER BACK, RH

main64247-07010iAVX40201211-201510

64288BREINFORCEMENT, ROOM PARTITION PANEL TO UPPER BACK, LH

main64248-07010iAVX40201211-201510

64811GLASS, BACK WINDOW

main64801-07010iAVX40,GSX40201210-201307

sub64801-07011

main64801-07011iAVX40,GSX40201308-201510

7104

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-07010iAVX40,GSX40201210-201510

90105A0064

main90105-A0064

90119A0119

main90119-A0119

90178A0052

main90178-A0052

23 parts on this diagram · 3 diagrams in section
