MAT & CARPET
51960CHOOK ASSY, FRONT
55214CPAD, DASH PANEL INSULATOR, NO.2
57521FASTENER, HOOK
58511FCARPET, FLOOR, FRONT RH
BLACK,TRIM0#,1#,2#
58512DCARPET, FLOOR, FRONT LH
BLACK,TRIM0#,1#,2#
58514ECARPET, FLOOR, REAR
BLACK,TRIM0#,1#,2#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
BLACK
BLACK
58543BBRACKET, FLOOR CARPET, RH
58544BBRACKET, FLOOR CARPET, LH
58611BPLATE, MAT SET, NO.1
58612BPLATE, MAT SET, NO.2
58621JSILENCER, CENTER CONSOLE, NO.1
58694APLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER

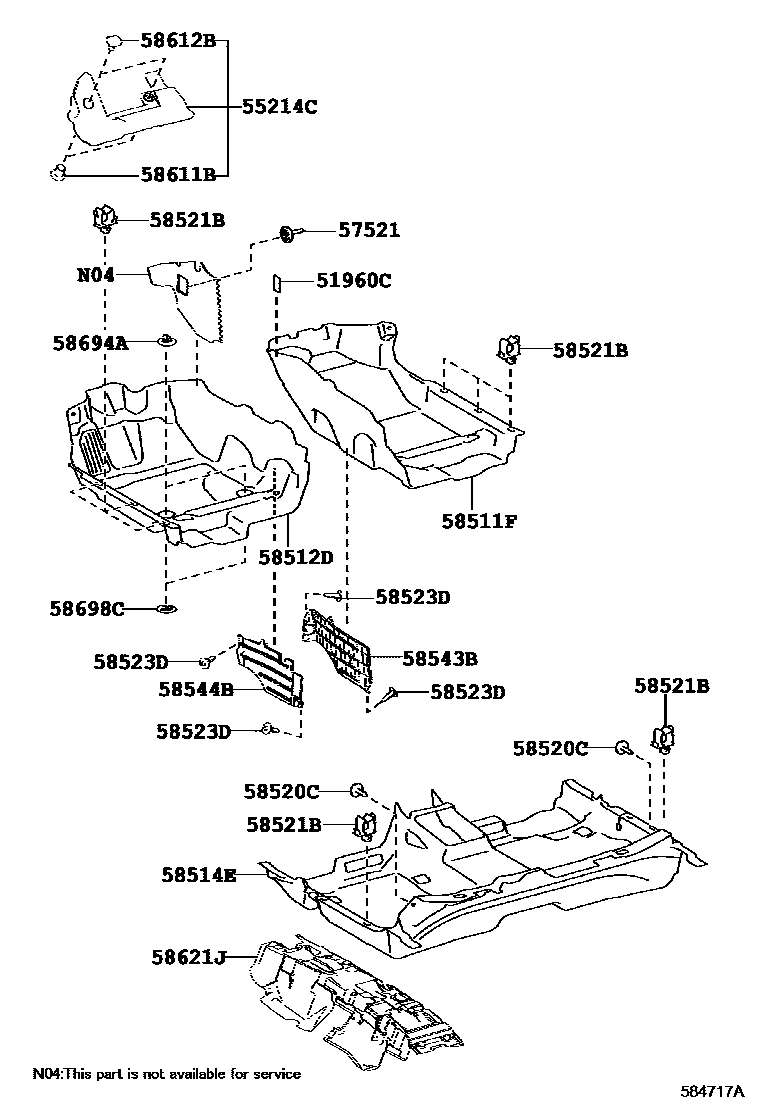

16 parts on this diagram · 1 diagram in section
