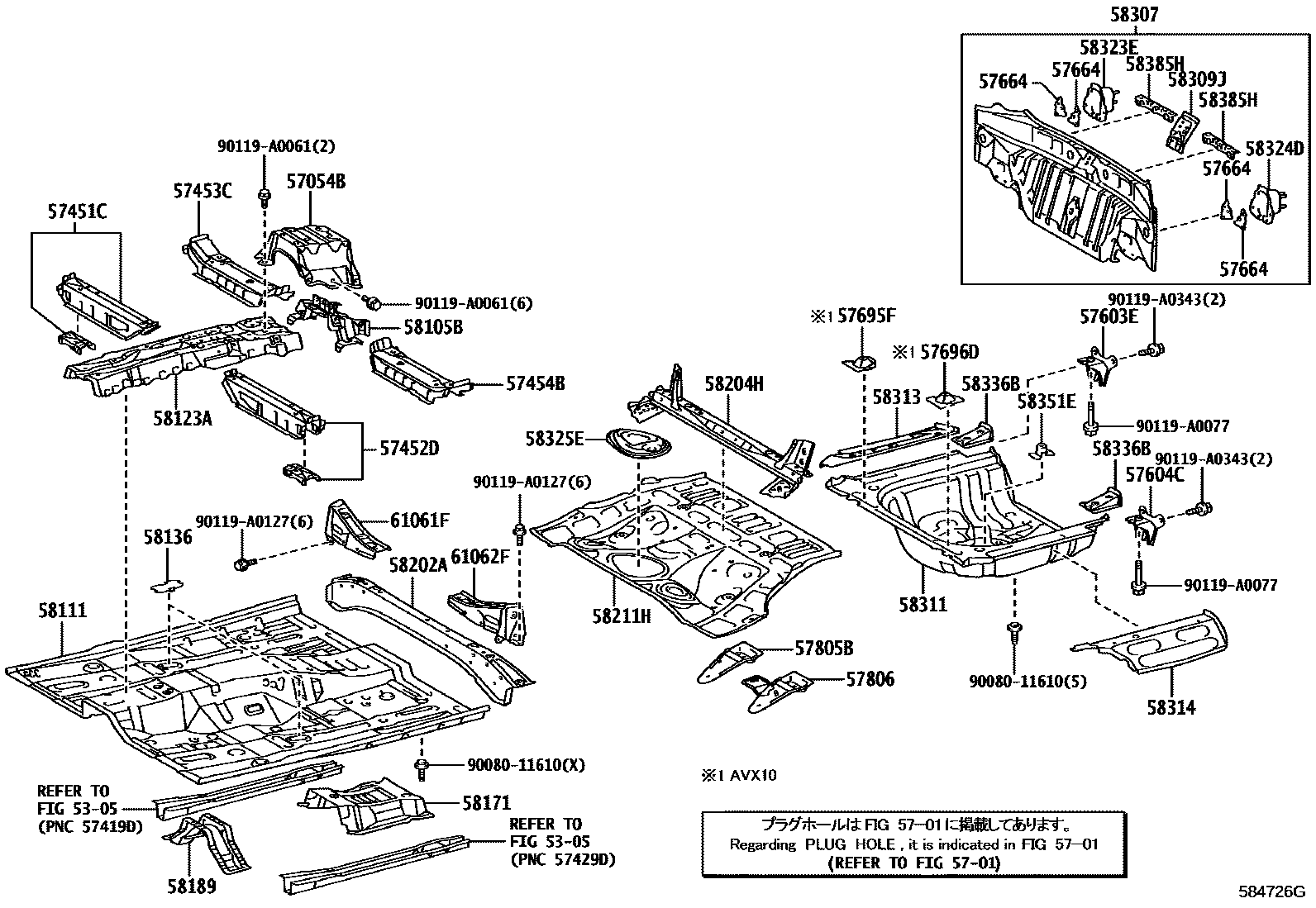

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR UNDER COVER

5305

5701

57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4

main57054-06040iAVX40,GSX40201210-201510

57451CMEMBER, FRONT FLOOR CROSS, RH

main57451-07901iAVX40,GSX40201210-201510

57452DMEMBER, FRONT FLOOR CROSS, LH

main57452-07902iAVX40,GSX40201210-201510

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-06060iAVX40,GSX40201210-201510

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-06060iAVX40,GSX40201210-201510

57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH

main57603-07010iAVX40,GSX40201210-201510

57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH

main57604-07010iAVX40201211-201510

main57604-07020iGSX40201210-201510

57664BRACE, BODY LOWER BACK PANEL

main58325-07010iAVX40,GSX40201210-201510

57695FEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH

main57695-06020iAVX40201211-201510

57696DEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-06010iAVX40201211-201510

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06020iAVX40,GSX40201210-201510

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-06020iAVX40,GSX40201210-201510

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06010iAVX40,GSX40201210-201510

58111PAN, FRONT FLOOR

main58111-07042iAVX40,GSX40201409-201510

main58111-07903iAVX40,GSX40201210-201409

sub58111-07042

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-06050iAVX40,GSX40201210-201510

58136COVER, FRONT FLOOR HOLE

main58136-06050iAVX40,GSX40201210-201510

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-07050iAVX40,GSX40201210-201510

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-07030iAVX40,GSX40201210-201510

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06050iAVX40,GSX40201210-201510

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-07010iAVX40,GSX40201210-201510

58211HPAN, CENTER FLOOR

main58211-06201iGSX40201210-201510

main58211-06211iAVX40201211-201510

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-07040iAVX40,GSX40201210-201510

58309JRETAINER SUB-ASSY, LUGGAGE DOOR LOCK STRIKER

main58309-07030iAVX40,GSX40201210-201510

58311PAN, REAR FLOOR

main58311-06151iGSX40201210-201510

main58311-06171iAVX40201211-201510

58313PANEL, REAR FLOOR SIDE, RH

main58313-06120iGSX40201210-201510

main58313-06130iAVX40201211-201510

58314PANEL, REAR FLOOR SIDE, LH

main58314-06120iAVX40,GSX40201210-201510

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58303-07010iAVX40,GSX40201210-201510

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58304-07010iAVX40,GSX40201210-201510

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06060iAVX40,GSX40201210-201402

sub58325-06061

main58325-06061iAVX40,GSX40201403-201510

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-06070iAVX40,GSX40201210-201510

58351EBRACKET, SPARE WHEEL CLAMP

main58351-06030iAVX40,GSX40201210-201510

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-06080iAVX40,GSX40201210-201510

61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1

main61061-06032iAVX40,GSX40201210-201510

61062FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2

main61062-06032iAVX40,GSX40201210-201510

9008011610

main90080-11610

90119A0061

main90119-A0061

90119A0077

main90119-A0077

90119A0127

main90119-A0127

90119A0343

main90119-A0343

41 parts on this diagram · 2 diagrams in section
